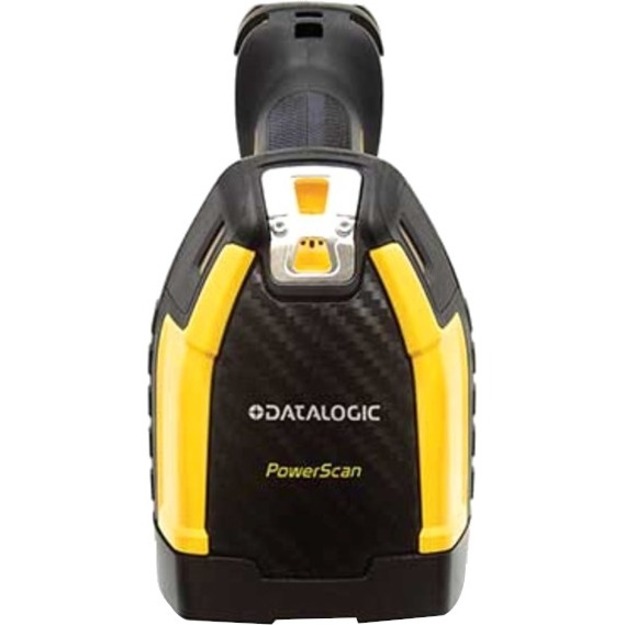

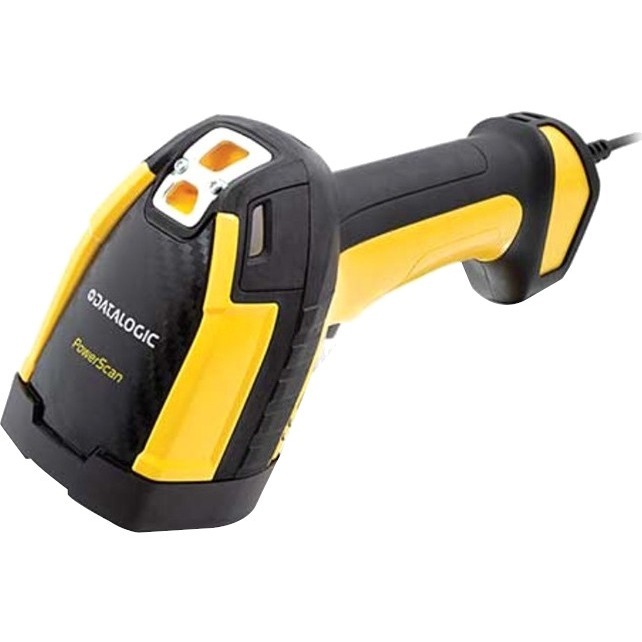

Datalogic PD9630 – Barcode Scanner

Part Number: PD9630-SRK1
Model: PD9630
3-year Premium Plus ($112.01)
3-year Premium ($57.31)
No Support
Add to My Shopping List Add to Compare
$472.47
In Stock

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Connectivity Technology
Cable
Scanning Capability
1D2D
Barcode Symbology Supported
1D: Auto discriminates all standard 1D codes including GS1 DataBar™ linear codes. 2D: Aztec Code China Han Xin Code Data Matrix MaxiCode Micro QR Code QR Codee Dot code Postal Codes: Australian Post China Post IMB Japanese Post KIX Post Planet Code Portuguese Post Postnet Royal Mail Code (RM4SCC) Swedish Post Digital Watermarking: Digimarc Barcodes (PD9630-HP and PD9630-DC)
Light Source
LED

Product Description:

  Mobile Computer, Datalogic PowerScan PD9630-SR, Standard Range, USB Kit. Includes: Scanner, USB Cable (Part# CAB-553)
Explore all Datalogic PD9630 Barcode Scanners
Add to Quote
Datalogic PD9630-SRK1 Barcode Scanner
Datalogic PD9630-SRK1 Barcode Scanner
Datalogic PD9630-SRK1 Barcode Scanner
Datalogic PD9630-SRK1 Barcode Scanner
Datalogic PD9630-SRK1 Barcode Scanner
Datalogic PD9630-SRK1 Barcode Scanner
Datalogic PD9630-SRK1 Barcode Scanner
Datalogic PD9630-SRK1 Barcode Scanner
Datalogic PD9630-SRK1 Barcode Scanner Datalogic PD9630-SRK1 Barcode Scanner Datalogic PD9630-SRK1 Barcode Scanner Datalogic PD9630-SRK1 Barcode Scanner Datalogic PD9630-SRK1 Barcode Scanner Datalogic PD9630-SRK1 Barcode Scanner Datalogic PD9630-SRK1 Barcode Scanner Datalogic PD9630-SRK1 Barcode Scanner
Frequently Purchased Together
Total: $00.00
Full specifications (PDF)

Datalogic PD9630 Barcode Scanner Model Overview

The Datalogic PowerScan™ 9600 Series is the ultimate solution for industrial barcode reading, designed to excel in the toughest environments. With its ultra-rugged design and ergonomic shape, this handheld scanner significantly reduces operator stress, promoting efficiency and safety. The cordless models, PM9600 and PBT9600, offer enhanced mobility through Datalogic’s STAR Cordless System™ and Bluetooth® 5.0 technology, ensuring seamless connectivity across devices. Its innovative wireless charging system eliminates the risk of wear on battery contacts, providing a reliable and durable scanning experience.


Key Features
  • Ultra-Rugged Design: Built to withstand tough conditions with IP65 and IP67 ratings.
  • Ergonomic Shape: Reduces operator fatigue during extended use.
  • Wireless Charging: Inductive charging for enhanced durability and reliability.
  • Multiple Optic Options: Standard, High Performance, and Document Capture models to fit various applications.
  • Impressive Range: Bluetooth® 5.0 with a range of up to 100 meters/328 feet.

Specifications
  • Wireless Communications:
    • Datalogic STAR Cordless System, 433 MHz and 910 MHz
    • Bluetooth 5.0, Class 1, Class 2, and Class 3
  • Decoding Capability:
    • 1D, 2D, Stacked Codes, and Postal Codes
  • Environmental:
    • Operating Temperature: -20 to 50 °C
    • Humidity: 0-95% non-condensing
    • Drop Resistance: 50 drops from 2.5 m
  • Physical Characteristics:
    • Dimensions: Corded models 19.0 x 14.0 x 7.9 cm
    • Weight: PM9600 425 g/15.0 oz
  • Battery:
    • Battery Type: Lithium-Ion, 3350 mAh
    • Charge Time: Approximately 2.5 hours to 95% capacity
Full specifications (PDF)
Technical Information
Connectivity Technology:
Cable
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:
1D:
  • Auto discriminates all standard 1D codes including GS1 DataBar™ linear codes.
2D:
  • Aztec Code
  • China Han Xin Code
  • Data Matrix
  • MaxiCode
  • Micro QR Code
  • QR Codee
  • Dot code
Postal Codes:
  • Australian Post
  • China Post
  • IMB
  • Japanese Post
  • KIX Post
  • Planet Code
  • Portuguese Post
  • Postnet
  • Royal Mail Code (RM4SCC)
  • Swedish Post
Digital Watermarking:
  • Digimarc Barcodes (PD9630-HP and PD9630-DC)
Light Source:
LED
Image Sensor Type:
Imager
Scan Pattern:
Omni-directional
Scanner Range:
Standard Range
Field of View (Horizontal):
38°
Field of View (Vertical):
24°
Reading Angle (Skew):
52°
Reading Angle (Pitch):
52°
Reading Angle (Roll):
360°
Maximum Ambient Light:
100000 lux
Drop Specification:
Withstands 50 drops from 2.5 m / 8.2 ft @ 20 °C / 68 °F
Withstands 50 drops from 2.0 m / 6.6 ft @ -20 °C / -4 °F

Minimum Print Contrast:
15%
Maximum Element Resolution (DataMatrix):
10 mil
Interfaces/Ports
Host Interface:
USB
Physical Characteristics
Form Factor:
Handheld
Rugged:
Yes
Product Color:
  • Yellow
  • Black
Height:
7.5"
Width:
3.1"
Length:
5.5"
Weight (Approximate):
11.22 oz
Miscellaneous
Ingress Protection (IP) Rating:
  • IP67
  • IP65
Application/Usage:
  • Manufacturing
  • Asset Tracking
  • Warehouse
  • Logistics
  • Picking
  • Sorting
  • Inventory
  • Industrial
Item Numbers
UNSPSC: 43211701

Recommended Accessories

Category

  • Cables, Connectors, and Adapters (5)
  • Power Device (8)

Recommended Accessories for Model: Datalogic PD9630-SRK1 Barcode Scanner

Top Cables, Connectors, and Adapters Purchased With Datalogic PD9630-SRK1

See All Cables, Connectors, and Adapters for Datalogic PD9630-SRK1 Barcode Scanner >

Top Power Device Purchased With Datalogic PD9630-SRK1

See All Power Device for Datalogic PD9630-SRK1 Barcode Scanner >

Frequently Asked Questions

The Datalogic PowerScan PD9630 reads both 1D and 2D barcodes, including standard linear codes, QR codes, Data Matrix, Aztec codes, and GS1 DataBar formats. With three optic options available—Standard Range, High Performance, and Document Capture—you can select the model that best matches your scanning distance and barcode complexity requirements.

Yes, the Datalogic PD9630 features IP65 and IP67 water and particulate sealing ratings, making it fully protected against dust and water spray in demanding warehouse and logistics environments. The ultra-rugged design withstands 50 drops from 2.0 meters onto concrete, ensuring durability under constant use in harsh conditions.

The PD9630-SRK1 kit we offer includes a USB cable (Part# CAB-553) for direct computer connectivity. The scanner features multi-interface capabilities supporting RS-232, USB, and Keyboard Wedge interfaces, allowing flexible integration with your existing warehouse management or point-of-sale systems.

The Standard Range optic option on the PD9630 provides reading capability up to approximately 1.6 meters (5.2 feet), making it ideal for typical warehouse picking and receiving operations. If you need longer-range scanning, the High Performance optic option extends this distance for applications requiring reads from greater distances.

The PD9630 features Datalogic's instinctive 'frame' aimer and 3GL (3 Green Lights) technology, which provides superior good-read feedback with a green spot directly on the code and dual Good Read LEDs on the scanner cap. This design ensures visibility at any angle and includes Motionix motion-sensing technology to optimize reading performance during fast-paced scanning operations.

The PD9630-SRK1 kit available from us includes the Datalogic PowerScan PD9630 Standard Range scanner and a USB cable (Part# CAB-553) for immediate plug-and-play deployment. Contact us today to verify current availability and discuss which optic configuration best fits your warehouse or logistics operation.

The Datalogic PD9630-SRK1 Barcode Scanner is also known as DTL-PD9630SRK1 or PD9630SRK1.
