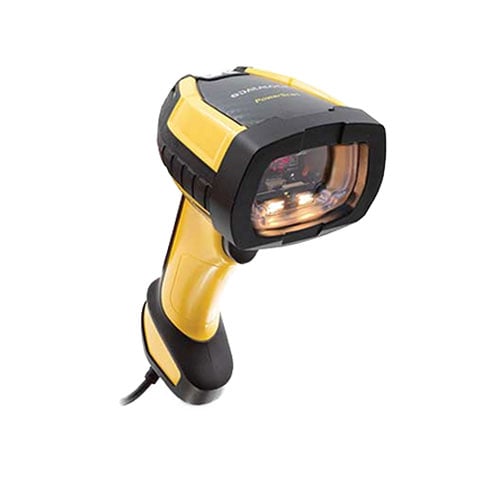

The Datalogic PowerScan™ 9600 Series is the ultimate solution for industrial barcode reading, designed to excel in the toughest environments. With its ultra-rugged design and ergonomic shape, this handheld scanner significantly reduces operator stress, promoting efficiency and safety. The cordless models, PM9600 and PBT9600, offer enhanced mobility through Datalogic’s STAR Cordless System™ and Bluetooth® 5.0 technology, ensuring seamless connectivity across devices. Its innovative wireless charging system eliminates the risk of wear on battery contacts, providing a reliable and durable scanning experience.
Key Features
Ultra-Rugged Design: Built to withstand tough conditions with IP65 and IP67 ratings.
Ergonomic Shape: Reduces operator fatigue during extended use.
Wireless Charging: Inductive charging for enhanced durability and reliability.
Multiple Optic Options: Standard, High Performance, and Document Capture models to fit various applications.
Impressive Range: Bluetooth® 5.0 with a range of up to 100 meters/328 feet.
Specifications
Wireless Communications:
Datalogic STAR Cordless System, 433 MHz and 910 MHz
Bluetooth 5.0, Class 1, Class 2, and Class 3
Decoding Capability:
1D, 2D, Stacked Codes, and Postal Codes
Environmental:
Operating Temperature: -20 to 50 °C
Humidity: 0-95% non-condensing
Drop Resistance: 50 drops from 2.5 m
Physical Characteristics:
Dimensions: Corded models 19.0 x 14.0 x 7.9 cm
Weight: PM9600 425 g/15.0 oz
Battery:
Battery Type: Lithium-Ion, 3350 mAh
Charge Time: Approximately 2.5 hours to 95% capacity

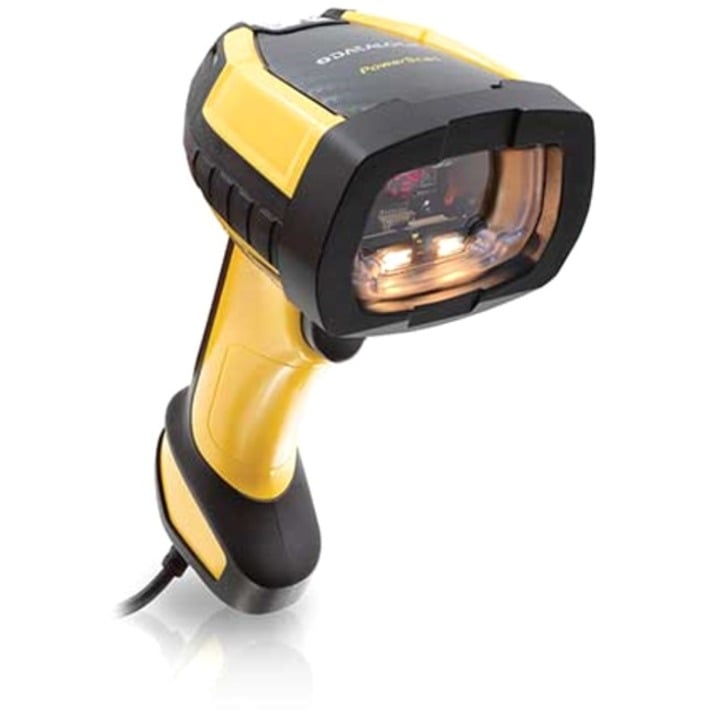

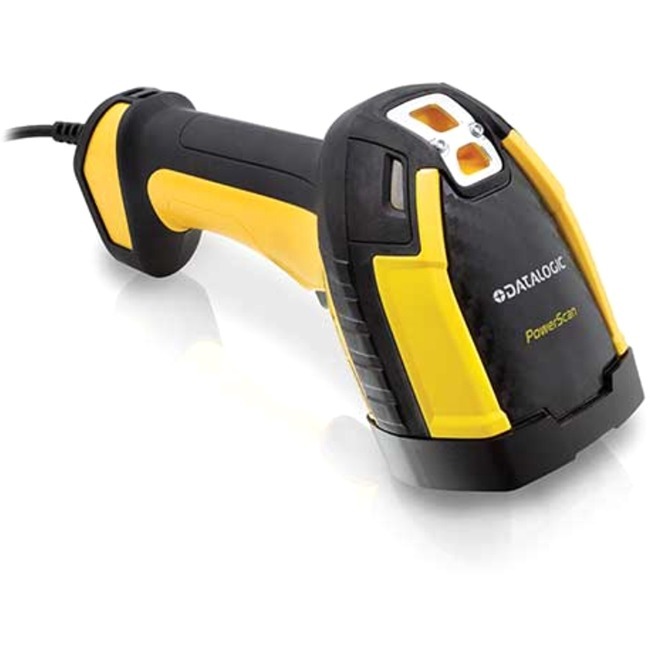

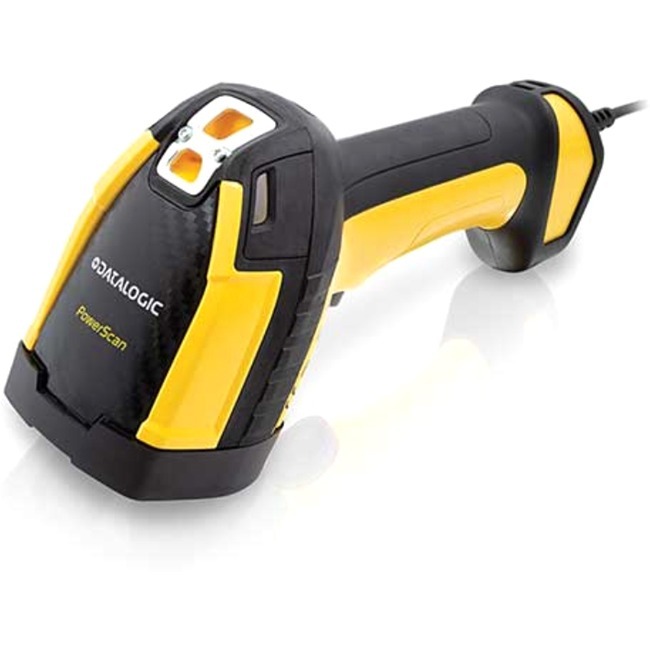

Datalogic PD9630-SR Barcode Scanner Overview
Everlasting handheld industrial scanners for 1D/2D barcode reading with top flexibility | ULTRA-RUGGED WITH NEW BALANCED ERGONOMICS
The PowerScan family of bar code readers are the ultimate industrial handheld scanners designed and constructed to withstand the toughest environmental conditions. The PowerScan PD9630 imagers have an ultra-rugged design, an ergonomic shape with well-balanced weight to reduce operator stress during daily activities and an intuitive aiming system, allowing the highest first-pass reading rate while reducing unnatural wrist movement.
THREE OPTIC OPTIONS TO FULFILL ANY CUSTOMER NEED
The PowerScan PD9630 area imagers are available in three different optics, to satisfy any customer need. The Standard Range optic is ideal for most of the applications requiring barcode reading at intuitive distance; the High Performance optic adds the capability to decode high density barcodes together with an increased depth of field on standard 1D/2D codes; the Document Capture model is thought for Wide Angle code reading and Document Capture applications.
THE BEST FEEDBACK TO THE OPERATOR
The PD9630 area imagers also feature Datalogic's exclusive 3 Green Lights (3GL™) for superior good-read feedback together with a loud beeper and vibration. The 'Green Spot' technology directly on the code and dual Good Read LEDs increase visibility at any angle. All models have multi-interface capabilities featuring the most popular interfaces: RS-232, USB and offer an optional Ethernet for standard or industrial uses.
Datalogic's Motionix™ motion-sensing technology detects the natural actions of the operator to automatically switch the scanner into the desired scanning mode (handheld or presentation scanning).
What barcode types can the Datalogic PD9630-SR read?
The Datalogic PowerScan PD9630-SR reads both 1D and 2D barcodes, including standard linear codes, QR codes, Data Matrix, Aztec codes, PDF417, and GS1 DataBar formats. With its Standard Range optic option, this scanner provides reliable autodiscrimination across all major barcode symbologies used in warehouse and logistics operations.
Is the Datalogic PD9630-SR waterproof and suitable for harsh warehouse environments?
Yes, the PD9630-SR features IP65 and IP67 water and particulate sealing ratings, making it highly resistant to moisture and dust in demanding warehouse conditions. The scanner also withstands 50 drops from 2.0 meters onto concrete and operates reliably in temperatures from -20 to 50°C, ensuring durability under constant use.
What connectivity options does the PD9630-SR offer?
The Datalogic PD9630-SR provides multi-interface connectivity with USB, RS-232, and Keyboard Wedge options, allowing flexible integration with various warehouse management systems and legacy equipment. This versatility makes it an excellent choice for facilities with mixed technology environments.
What makes the Datalogic PD9630-SR different from other Datalogic PowerScan models?
The PD9630-SR comes with Datalogic's instinctive 'frame' aimer, 3GL (3 Green Lights) technology, and Motionix motion-sensing technology for enhanced reading performance. The Standard Range optic is optimized for typical warehouse distances, while Datalogic also offers High Performance and Document Capture variants for specialized applications.
What is the power consumption of the PD9630-SR?
The PD9630-SR operates at approximately 350 mA during typical scanning use and 120 mA in standby mode, with a 5 VDC +/- 10% input voltage requirement. This efficient power profile makes it suitable for extended shifts in mobile warehouse operations.
Can I get the Datalogic PD9630-SR in custom colors or with a custom logo?
The Datalogic PD9630-SR is available in Yellow/Black as the standard color option, and custom colors and logo options are available for minimum quantity purchases. Contact us today at barcodesinc.com to discuss customization options for your fleet.
The Datalogic PD9630-SR Barcode Scanner is also known as
DTL-PD9630SR
or PD9630SR.
Full specifications (PDF)
