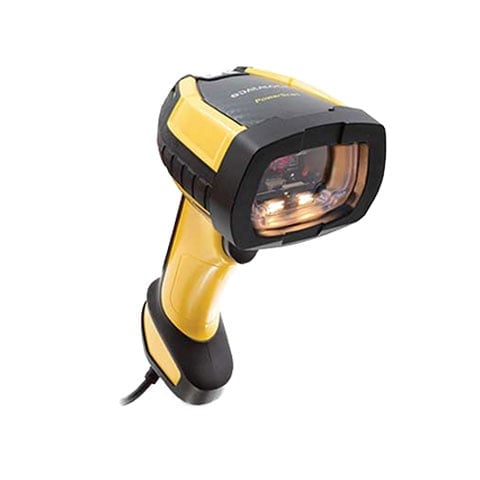

The Datalogic PowerScan™ 9600 Series is the ultimate solution for industrial barcode reading, designed to excel in the toughest environments. With its ultra-rugged design and ergonomic shape, this handheld scanner significantly reduces operator stress, promoting efficiency and safety. The cordless models, PM9600 and PBT9600, offer enhanced mobility through Datalogic’s STAR Cordless System™ and Bluetooth® 5.0 technology, ensuring seamless connectivity across devices. Its innovative wireless charging system eliminates the risk of wear on battery contacts, providing a reliable and durable scanning experience.
Key Features
Ultra-Rugged Design: Built to withstand tough conditions with IP65 and IP67 ratings.
Ergonomic Shape: Reduces operator fatigue during extended use.
Wireless Charging: Inductive charging for enhanced durability and reliability.
Multiple Optic Options: Standard, High Performance, and Document Capture models to fit various applications.
Impressive Range: Bluetooth® 5.0 with a range of up to 100 meters/328 feet.
Specifications
Wireless Communications:
Datalogic STAR Cordless System, 433 MHz and 910 MHz
Bluetooth 5.0, Class 1, Class 2, and Class 3
Decoding Capability:
1D, 2D, Stacked Codes, and Postal Codes
Environmental:
Operating Temperature: -20 to 50 °C
Humidity: 0-95% non-condensing
Drop Resistance: 50 drops from 2.5 m
Physical Characteristics:
Dimensions: Corded models 19.0 x 14.0 x 7.9 cm
Weight: PM9600 425 g/15.0 oz
Battery:
Battery Type: Lithium-Ion, 3350 mAh
Charge Time: Approximately 2.5 hours to 95% capacity

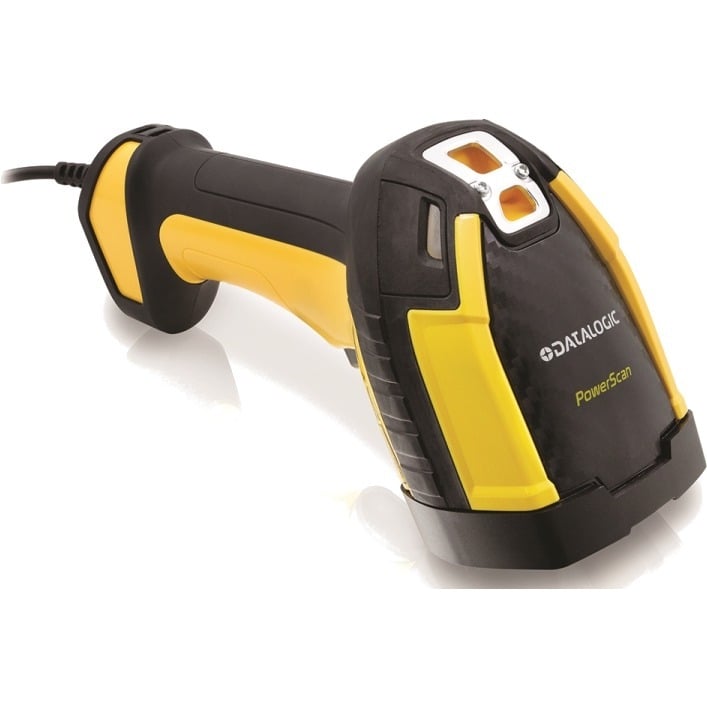

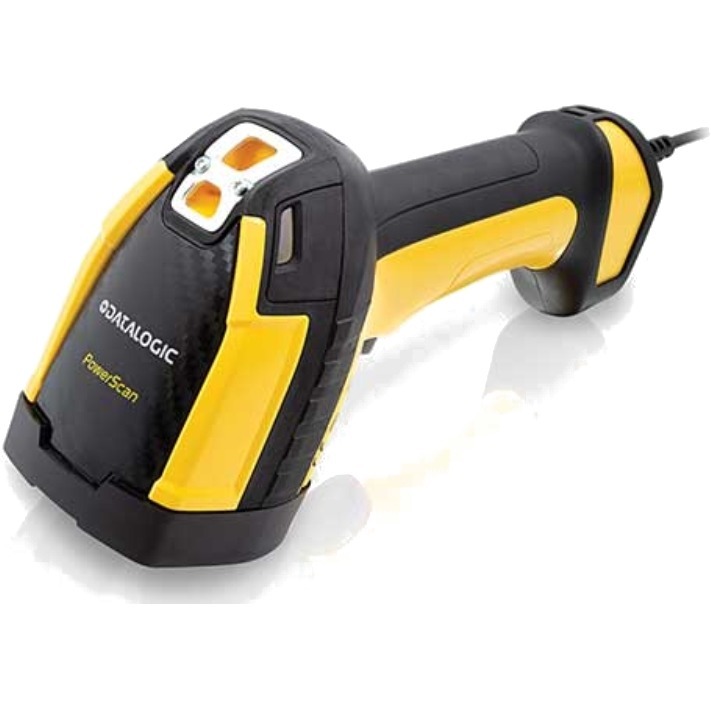

Datalogic PD9630-HPK2 Barcode Scanner Overview
Everlasting handheld industrial scanners for 1D/2D barcode reading with top flexibility | ULTRA-RUGGED WITH NEW BALANCED ERGONOMICS
The PowerScan family of bar code readers are the ultimate industrial handheld scanners designed and constructed to withstand the toughest environmental conditions. The PowerScan PD9630 imagers have an ultra-rugged design, an ergonomic shape with well-balanced weight to reduce operator stress during daily activities and an intuitive aiming system, allowing the highest first-pass reading rate while reducing unnatural wrist movement.
THREE OPTIC OPTIONS TO FULFILL ANY CUSTOMER NEED
The PowerScan PD9630 area imagers are available in three different optics, to satisfy any customer need. The Standard Range optic is ideal for most of the applications requiring barcode reading at intuitive distance; the High Performance optic adds the capability to decode high density barcodes together with an increased depth of field on standard 1D/2D codes; the Document Capture model is thought for Wide Angle code reading and Document Capture applications.
THE BEST FEEDBACK TO THE OPERATOR
The PD9630 area imagers also feature Datalogic's exclusive 3 Green Lights (3GL™) for superior good-read feedback together with a loud beeper and vibration. The 'Green Spot' technology directly on the code and dual Good Read LEDs increase visibility at any angle. All models have multi-interface capabilities featuring the most popular interfaces: RS-232, USB and offer an optional Ethernet for standard or industrial uses.
Datalogic's Motionix™ motion-sensing technology detects the natural actions of the operator to automatically switch the scanner into the desired scanning mode (handheld or presentation scanning).
The Datalogic PowerScan PD9630 reads both 1D and 2D barcodes, including all standard linear codes, QR codes, Data Matrix, Aztec codes, PDF417, and GS1 DataBar formats. With three optic options available—Standard Range, High Performance, and Document Capture—you can select the configuration that best matches your scanning distance and barcode type requirements.
Is the Datalogic PD9630 suitable for warehouse environments?
Yes, the PD9630 is purpose-built for warehouse and logistics operations with IP65 and IP67 water and particulate sealing ratings, allowing it to withstand harsh conditions. It features drop resistance rated for 50 drops from 2.0 meters onto concrete and operates reliably in temperatures from -20 to 50°C, making it ideal for demanding warehouse environments.
What connectivity options does the PD9630-HPK2 offer?
The PD9630-HPK2 comes with an RS-232 cable kit and supports multi-interface connectivity including RS-232, USB, and Keyboard Wedge modes. This flexibility allows you to integrate the scanner with various warehouse management systems and legacy equipment without requiring additional adapters.
What makes the Datalogic PD9630's aiming system unique?
The PD9630 features Datalogic's instinctive 'frame' aimer combined with 3GL (3 Green Lights) technology, providing intuitive visual feedback for accurate targeting. The Motionix motion-sensing technology further enhances usability by detecting scanner movement and optimizing performance during active scanning operations.
How durable is the Datalogic PD9630 for continuous warehouse use?
The PD9630 is engineered for everlasting performance with an ultra-rugged ergonomic design that withstands constant use in demanding environments. Its IP65/IP67 sealing ratings, 20 kV ESD protection, and ability to operate in 0-95% humidity (non-condensing) ensure reliable long-term operation in warehouses, distribution centers, and logistics facilities.
Can I get the PD9630 with different optical configurations?
Yes, we offer the Datalogic PowerScan PD9630 with three distinct optic options: Standard Range for typical scanning distances, High Performance for extended range applications, and Document Capture for reading printed codes on documents. Contact us today to determine which configuration best fits your specific scanning requirements.
The Datalogic PD9630-HPK2 Barcode Scanner is also known as
DTL-PD9630HPK2
or PD9630HPK2.
Full specifications (PDF)
