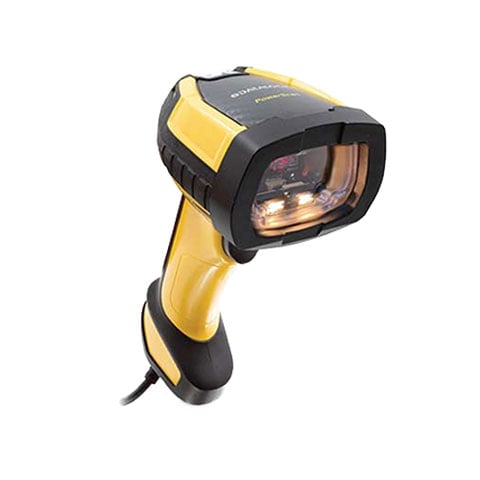

The Datalogic PowerScan™ 9600 Series is the ultimate solution for industrial barcode reading, designed to excel in the toughest environments. With its ultra-rugged design and ergonomic shape, this handheld scanner significantly reduces operator stress, promoting efficiency and safety. The cordless models, PM9600 and PBT9600, offer enhanced mobility through Datalogic’s STAR Cordless System™ and Bluetooth® 5.0 technology, ensuring seamless connectivity across devices. Its innovative wireless charging system eliminates the risk of wear on battery contacts, providing a reliable and durable scanning experience.
Key Features
Ultra-Rugged Design: Built to withstand tough conditions with IP65 and IP67 ratings.
Ergonomic Shape: Reduces operator fatigue during extended use.
Wireless Charging: Inductive charging for enhanced durability and reliability.
Multiple Optic Options: Standard, High Performance, and Document Capture models to fit various applications.
Impressive Range: Bluetooth® 5.0 with a range of up to 100 meters/328 feet.
Specifications
Wireless Communications:
Datalogic STAR Cordless System, 433 MHz and 910 MHz
Bluetooth 5.0, Class 1, Class 2, and Class 3
Decoding Capability:
1D, 2D, Stacked Codes, and Postal Codes
Environmental:
Operating Temperature: -20 to 50 °C
Humidity: 0-95% non-condensing
Drop Resistance: 50 drops from 2.5 m
Physical Characteristics:
Dimensions: Corded models 19.0 x 14.0 x 7.9 cm
Weight: PM9600 425 g/15.0 oz
Battery:
Battery Type: Lithium-Ion, 3350 mAh
Charge Time: Approximately 2.5 hours to 95% capacity
Datalogic PD9630-HPK1 Barcode Scanner Overview
Everlasting handheld industrial scanners for 1D/2D barcode reading with top flexibility | ULTRA-RUGGED WITH NEW BALANCED ERGONOMICS
The PowerScan family of bar code readers are the ultimate industrial handheld scanners designed and constructed to withstand the toughest environmental conditions. The PowerScan PD9630 imagers have an ultra-rugged design, an ergonomic shape with well-balanced weight to reduce operator stress during daily activities and an intuitive aiming system, allowing the highest first-pass reading rate while reducing unnatural wrist movement.
THREE OPTIC OPTIONS TO FULFILL ANY CUSTOMER NEED
The PowerScan PD9630 area imagers are available in three different optics, to satisfy any customer need. The Standard Range optic is ideal for most of the applications requiring barcode reading at intuitive distance; the High Performance optic adds the capability to decode high density barcodes together with an increased depth of field on standard 1D/2D codes; the Document Capture model is thought for Wide Angle code reading and Document Capture applications.
THE BEST FEEDBACK TO THE OPERATOR
The PD9630 area imagers also feature Datalogic's exclusive 3 Green Lights (3GL™) for superior good-read feedback together with a loud beeper and vibration. The 'Green Spot' technology directly on the code and dual Good Read LEDs increase visibility at any angle. All models have multi-interface capabilities featuring the most popular interfaces: RS-232, USB and offer an optional Ethernet for standard or industrial uses.
Datalogic's Motionix™ motion-sensing technology detects the natural actions of the operator to automatically switch the scanner into the desired scanning mode (handheld or presentation scanning).
The Datalogic PowerScan PD9630 reads both 1D and 2D barcodes, including all standard linear codes, QR codes, Data Matrix, Aztec Code, PDF417, and GS1 DataBar formats. With three optic options available—Standard Range, High Performance, and Document Capture—you can select the configuration that best matches your scanning distance and application requirements.
Is the PD9630 waterproof and suitable for harsh warehouse environments?
Yes, the PowerScan PD9630 features IP65 and IP67 water and particulate sealing ratings, making it resistant to dust and moisture in demanding environments. The scanner also withstands 50 drops from 2.0 meters onto concrete and operates reliably in temperatures from -20°C to 50°C, ensuring durability under constant warehouse use.
What connectivity options does the PD9630 offer?
The Datalogic PowerScan PD9630 provides multi-interface connectivity including RS-232, USB, and Keyboard Wedge options, allowing flexible integration with your existing warehouse management systems and point-of-sale infrastructure. Contact us today to confirm the specific connectivity configuration available for your deployment.
What innovative features does the PD9630 include for improved scanning performance?
The PowerScan PD9630 incorporates Datalogic's instinctive 'frame' aimer for precise targeting, 3GL (3 Green Lights) technology for instant visual feedback, and Motionix motion-sensing technology that optimizes performance during dynamic scanning. These features combine to deliver high-performance barcode capture with minimal operator training required.
How much power does the PD9630 consume during operation?
The Datalogic PowerScan PD9630 has typical operating current of 335 mA and standby current of 180 mA at 5 VDC, making it efficient for all-day warehouse operations. The scanner's low power consumption extends battery life in mobile deployments while maintaining consistent scanning performance.
What's the difference between the PD9630 Standard Range and High Performance optic options?
The PowerScan PD9630 offers three optic configurations to match your scanning environment: Standard Range for typical close-range applications, High Performance for extended reading distances and challenging lighting conditions, and Document Capture for direct part marking and difficult-to-read codes. Visit barcodesinc.com or contact us today to determine which optic option best fits your warehouse workflow.
The Datalogic PD9630-HPK1 Barcode Scanner is also known as
DTL-PD9630HPK1
or PD9630HPK1.
Full specifications (PDF)
