The Datalogic PowerScan™ 9600 Series is the ultimate solution for industrial barcode reading, designed to excel in the toughest environments. With its ultra-rugged design and ergonomic shape, this handheld scanner significantly reduces operator stress, promoting efficiency and safety. The cordless models, PM9600 and PBT9600, offer enhanced mobility through Datalogic’s STAR Cordless System™ and Bluetooth® 5.0 technology, ensuring seamless connectivity across devices. Its innovative wireless charging system eliminates the risk of wear on battery contacts, providing a reliable and durable scanning experience.
Key Features
Ultra-Rugged Design: Built to withstand tough conditions with IP65 and IP67 ratings.
Ergonomic Shape: Reduces operator fatigue during extended use.
Wireless Charging: Inductive charging for enhanced durability and reliability.
Multiple Optic Options: Standard, High Performance, and Document Capture models to fit various applications.
Impressive Range: Bluetooth® 5.0 with a range of up to 100 meters/328 feet.
Specifications
Wireless Communications:
Datalogic STAR Cordless System, 433 MHz and 910 MHz
Bluetooth 5.0, Class 1, Class 2, and Class 3
Decoding Capability:
1D, 2D, Stacked Codes, and Postal Codes
Environmental:
Operating Temperature: -20 to 50 °C
Humidity: 0-95% non-condensing
Drop Resistance: 50 drops from 2.5 m
Physical Characteristics:
Dimensions: Corded models 19.0 x 14.0 x 7.9 cm
Weight: PM9600 425 g/15.0 oz
Battery:
Battery Type: Lithium-Ion, 3350 mAh
Charge Time: Approximately 2.5 hours to 95% capacity

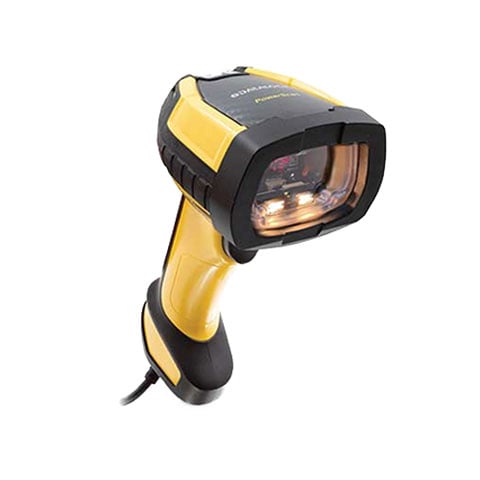

Datalogic PD9630-DCK1 Barcode Scanner Overview
Everlasting handheld industrial scanners for 1D/2D barcode reading with top flexibility | ULTRA-RUGGED WITH NEW BALANCED ERGONOMICS
The PowerScan family of bar code readers are the ultimate industrial handheld scanners designed and constructed to withstand the toughest environmental conditions. The PowerScan PD9630 imagers have an ultra-rugged design, an ergonomic shape with well-balanced weight to reduce operator stress during daily activities and an intuitive aiming system, allowing the highest first-pass reading rate while reducing unnatural wrist movement.
THREE OPTIC OPTIONS TO FULFILL ANY CUSTOMER NEED
The PowerScan PD9630 area imagers are available in three different optics, to satisfy any customer need. The Standard Range optic is ideal for most of the applications requiring barcode reading at intuitive distance; the High Performance optic adds the capability to decode high density barcodes together with an increased depth of field on standard 1D/2D codes; the Document Capture model is thought for Wide Angle code reading and Document Capture applications.
THE BEST FEEDBACK TO THE OPERATOR
The PD9630 area imagers also feature Datalogic's exclusive 3 Green Lights (3GL™) for superior good-read feedback together with a loud beeper and vibration. The 'Green Spot' technology directly on the code and dual Good Read LEDs increase visibility at any angle. All models have multi-interface capabilities featuring the most popular interfaces: RS-232, USB and offer an optional Ethernet for standard or industrial uses
Datalogic's Motionix™ motion-sensing technology detects the natural actions of the operator to automatically switch the scanner into the desired scanning mode (handheld or presentation scanning).
The Datalogic PowerScan PD9630 reads both 1D and 2D barcodes with autodiscrimination of standard linear codes including GS1 DataBar formats. It also supports 2D codes such as QR Code, Data Matrix, Aztec Code, and PDF417, making it versatile for warehouse and logistics environments. With three optic options—Standard Range, High Performance, and Document Capture—you can select the version that best matches your scanning distance and application requirements.
Is the PD9630 suitable for harsh warehouse environments?
Yes, the PD9630 is built for durability with IP65 and IP67 water and particulate sealing ratings, protecting it from moisture and dust in demanding environments. It withstands 50 drops from 2.0 meters onto concrete and operates reliably in temperatures from -20 to 50°C, ensuring consistent performance under constant use. The ergonomic, ultra-rugged frame design makes it ideal for logistics and warehouse operations where equipment endures rough handling.
What connectivity options does the PD9630 offer?
The PD9630 features multi-interface capabilities including RS-232, USB, and Keyboard Wedge connectivity, allowing flexible integration with existing warehouse management systems and IT infrastructure. Our USB Kit includes the scanner and USB cable (Part# CAB-553), making it ready to connect to your computers or mobile devices right out of the box. Contact us today to confirm compatibility with your specific system requirements.
What are the key technology features that improve scanning performance?
The PD9630 incorporates Datalogic's 3GL (3 Green Lights) technology for superior good-read feedback, an instinctive 'frame' aimer for intuitive targeting, and Motionix motion-sensing technology for enhanced performance. These features work together to provide reliable barcode capture even in challenging lighting conditions and during rapid scan-intensive operations typical in warehouses and distribution centers.
What is the difference between the Standard Range, High Performance, and Document Capture optic options?
The three optic variants allow you to choose the PD9630 model that matches your specific scanning distance and application needs. Standard Range handles typical close-range scanning, High Performance extends reading distance for pallets and elevated inventory, and Document Capture is optimized for reading barcodes on documents and smaller items. Visit barcodesinc.com or contact us today to determine which optic configuration best fits your warehouse workflow.
What power requirements does the PD9630 have?
The PD9630 operates on 5 VDC +/- 10% input voltage with typical operating current of 350 mA and standby current of 120 mA, making it compatible with standard USB and corded power solutions. This efficient power consumption allows for extended use in warehouse operations without frequent battery changes or charging interruptions. Available from us with complete USB connectivity kits for immediate deployment.
The Datalogic PD9630-DCK1 Barcode Scanner is also known as
DTL-PD9630DCK1
or PD9630DCK1.
Full specifications (PDF)
