The Datalogic PowerScan™ 9600 Series is the ultimate solution for industrial barcode reading, designed to excel in the toughest environments. With its ultra-rugged design and ergonomic shape, this handheld scanner significantly reduces operator stress, promoting efficiency and safety. The cordless models, PM9600 and PBT9600, offer enhanced mobility through Datalogic’s STAR Cordless System™ and Bluetooth® 5.0 technology, ensuring seamless connectivity across devices. Its innovative wireless charging system eliminates the risk of wear on battery contacts, providing a reliable and durable scanning experience.
Key Features
Ultra-Rugged Design: Built to withstand tough conditions with IP65 and IP67 ratings.
Ergonomic Shape: Reduces operator fatigue during extended use.
Wireless Charging: Inductive charging for enhanced durability and reliability.
Multiple Optic Options: Standard, High Performance, and Document Capture models to fit various applications.
Impressive Range: Bluetooth® 5.0 with a range of up to 100 meters/328 feet.
Specifications
Wireless Communications:
Datalogic STAR Cordless System, 433 MHz and 910 MHz
Bluetooth 5.0, Class 1, Class 2, and Class 3
Decoding Capability:
1D, 2D, Stacked Codes, and Postal Codes
Environmental:
Operating Temperature: -20 to 50 °C
Humidity: 0-95% non-condensing
Drop Resistance: 50 drops from 2.5 m
Physical Characteristics:
Dimensions: Corded models 19.0 x 14.0 x 7.9 cm
Weight: PM9600 425 g/15.0 oz
Battery:
Battery Type: Lithium-Ion, 3350 mAh
Charge Time: Approximately 2.5 hours to 95% capacity

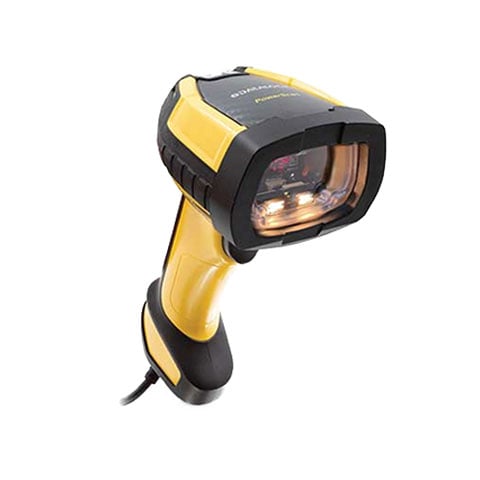

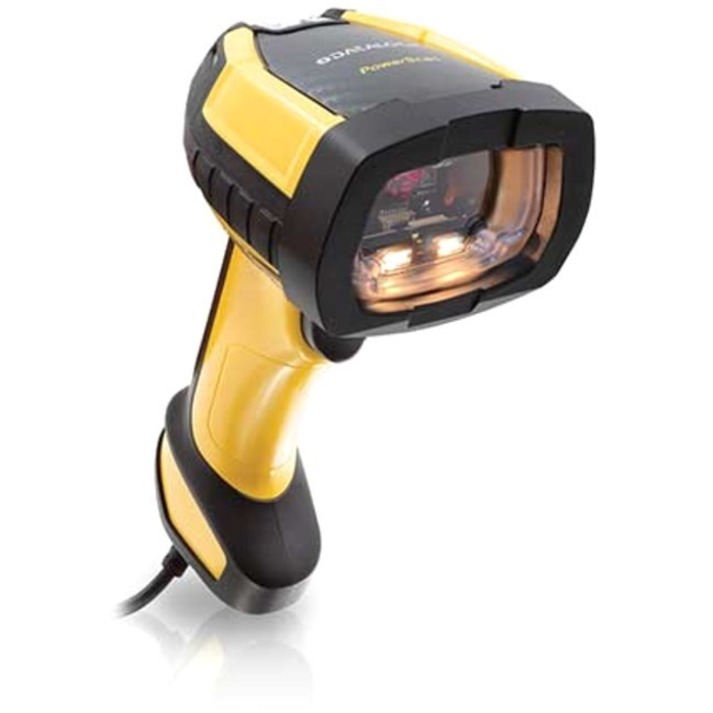

Datalogic PD9630-ARK1 Barcode Scanner Overview
ULTRA-RUGGED WITH NEW BALANCED ERGONOMICS!
The PowerScan family of bar code readers are the ultimate industrial handheld scanners designed and constructed to withstand the toughest environmental conditions. The PowerScan PD9630 imagers have an ultra-rugged design, an ergonomic shape with well-balanced weight to reduce operator stress during daily activities and an intuitive aiming system, allowing the highest first-pass reading rate while reducing unnatural wrist movement.
THREE OPTIC OPTIONS TO FULFILL ANY CUSTOMER NEED
The PowerScan PD9630 area imagers are available in three different optics, to satisfy any customer need. The Standard Range optic is ideal for most of the applications requiring barcode reading at intuitive distance; the High Performance optic adds the capability to decode high density barcodes together with an increased depth of field on standard 1D/2D codes; the Document Capture model is thought for Wide Angle code reading and Document Capture applications.
THE BEST FEEDBACK TO THE OPERATOR
The PD9630 area imagers also feature Datalogic's exclusive 3 Green Lights (3GL) for superior good-read feedback together with a loud beeper and vibration. The 'Green Spot' technology directly on the code and dual Good Read LEDs increase visibility at any angle. All models have multi-interface capabilities featuring the most popular interfaces: RS-232, USB and offer an optional Ethernet for standard or industrial uses.
Datalogic's Motionix motion-sensing technology detects the natural actions of the operator to automatically switch the scanner into the desired scanning mode (handheld or presentation scanning).
What barcode types can the Datalogic PowerScan PD9630 read?
The PD9630 reads both 1D and 2D barcodes with autodiscrimination of all standard linear codes including GS1 DataBar, UPC/EAN, Code 128, Code 39, and 2D formats like Data Matrix and QR codes. With three optic options available—Standard Range, High Performance, and Document Capture—you can choose the configuration that best matches your scanning distance and application requirements.
Is the Datalogic PD9630 waterproof and suitable for harsh warehouse environments?
Yes, the PD9630 features IP65 and IP67 water and particulate sealing ratings, making it highly resistant to dust and water exposure. It also withstands 50 drops from 2.0 meters (6.5 feet) to concrete and operates reliably in temperatures from -20 to 50°C (-4 to 122°F), ensuring durability under constant warehouse use.
What connectivity options does the PD9630 barcode scanner offer?
The PD9630 supports multiple interface options including USB, RS-232, and Keyboard Wedge connectivity, providing flexibility for integration with various warehouse management systems and legacy equipment. This multi-interface capability allows you to deploy the scanner across different workstations without requiring additional adapters.
What makes the Datalogic PD9630 easier to use than previous models?
The PD9630 features Datalogic's instinctive 'frame' aimer, 3GL (3 Green Lights) technology for superior good read feedback, and Motionix motion-sensing technology that enhance operator experience and scanning accuracy. These innovations bundle high-performance technology in an ultra-rugged, ergonomic frame designed for scan-intensive operations.
What power requirements does the PD9630 have?
The PD9630 operates on input voltage ranging from 4.5 to 30 VDC, with typical operating current of 420 mA at 4.5V and 360 mA at 5V, allowing flexible power supply options for warehouse and industrial deployments. This wide voltage range ensures compatibility with various power infrastructure setups.
Can I get the PD9630 in colors other than yellow and black?
Yes, the PD9630 is available in yellow/black as standard, with custom colors and logo options available for minimum quantity purchases. Contact us today to discuss custom configuration options that match your warehouse branding or operational requirements.
The Datalogic PD9630-ARK1 Barcode Scanner is also known as
DTL-PD9630ARK1
or PD9630ARK1.
