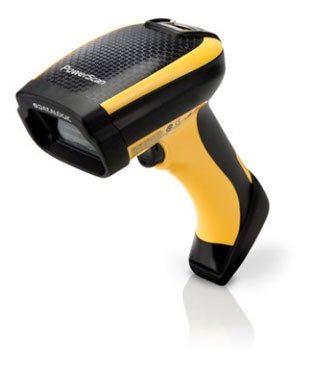

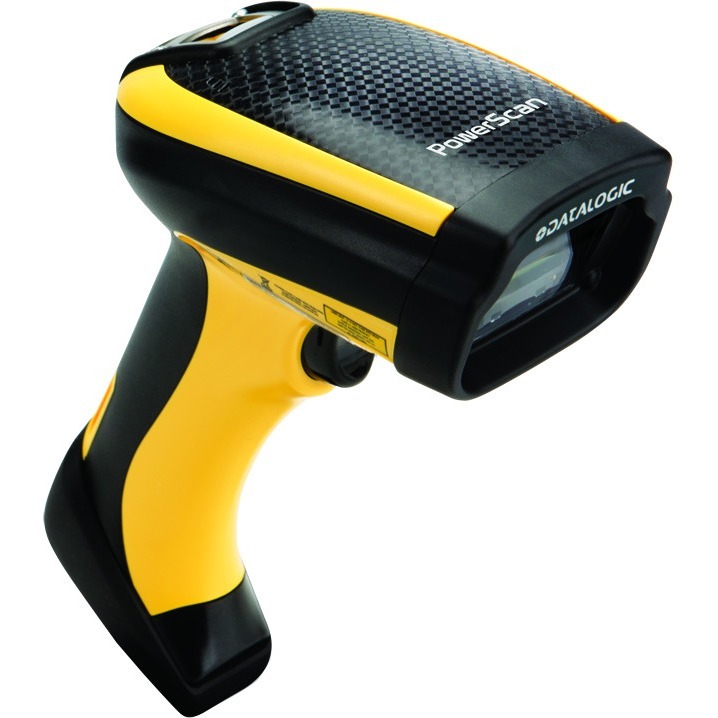

The PowerScan™ PBT9300 AR Laser is an exceptional industrial handheld barcode reader designed for durability and efficiency in the toughest environments. With advanced laser auto range technology, it can read linear codes from distances of up to 11.5 meters, ensuring reliable operation for warehouse and manufacturing applications. Equipped with Bluetooth® 3.0 technology, this scanner offers seamless connectivity up to 100 meters, allowing users to work freely without cumbersome cords. Its rugged design, featuring IP65 sealing and drop resistance, ensures consistent performance that meets the demands of any industrial setting.
Key Features:
- Robust Design: IP65 water and particulate sealing for superior durability.
- Long Reading Range: Reads reflective codes from distances up to 11.5 m / 37 ft.
- Bluetooth Wireless Technology: Class 1 range of up to 100 m / 328 ft for wireless operation.
- User-Friendly: Quick deployment through multiple connectivity options (USB, Serial, Ethernet).
- User-Replaceable Battery: 3350 mAh lithium-ion battery offers extended usage.
Specifications:
- Communication: Bluetooth 3.0, Class 1, up to 100 m / 328 ft.
- Decoding Capability: GS1 DataBar™, UPC/EAN, Code 39, and more.
- Light Source: 630-680 nm VLD.
- Scanning Performance: Up to 35 scans/sec, resolution of 7.5 mils.
- Operating Conditions: -20 to 50 °C / -4 to 122 °F, humidity 0-95% non-condensing.
- Size: Scanner: 21.2 x 11.0 x 7.4 cm; Weight: 435 g / 15.3 oz.
- Warranty: 3-Year Factory Warranty.
The PowerScan™ PBT9300 laser scanner features standard Bluetooth® wireless technology combined with the outstanding reliability and reading performance found in all PowerScan products.
Based on Bluetooth 3.0 standard wireless technology, Class 1 Range (in open air); up to 100 m / 328 ft. Connectivity is implemented through the receiving base station, which communicates to the host through a choice of interfaces (Serial, USB or Keyboard Wedge) or by connecting the scanner directly to any commercial or embedded Bluetooth compliant device, or via Ethernet by using the BC9180-BT base/charger using Standard Ethernet and Industrial Ethernet protocols (Ethernet IP and Modbus).
The PowerScan PBT9300 scanner mounted on a forklift with a Vehicle Mount Terminal (VMT) provides an excellent solution for warehouse applications.
The PowerScan PBT9300 laser scanner is available in two different models: Standard Range or Extra-Long Range.
FEATURES
- Bluetooth 3.0 Class 1 compliant
- Supports Bluetooth wireless technology SPP and HID profiles
- Piconet with up to 7 scanners connected to the same base station
- Optics are available in:
- Standard Range: contact up to 1.6 m / 5.2 ft
- Auto Range: up to 11.5 m / 37.0 ft on reflective codes
- Datalogic 3GL™ and loud beeper for good-read feedback
- Drop resistance to 2.0 m / 6.5 ft
- EASEOFCARE Service Plans offer a wide range of service options to protect your investment
APPLICATIONS
Warehouse and Distribution Centers: Shipping and Receiving, Order Processing, Parcel Preparation, Pallet Tracking and Put-away
Manufacturing / Shop Floor: Work in Progress, Component Tracking, Quality Control and Inventory
