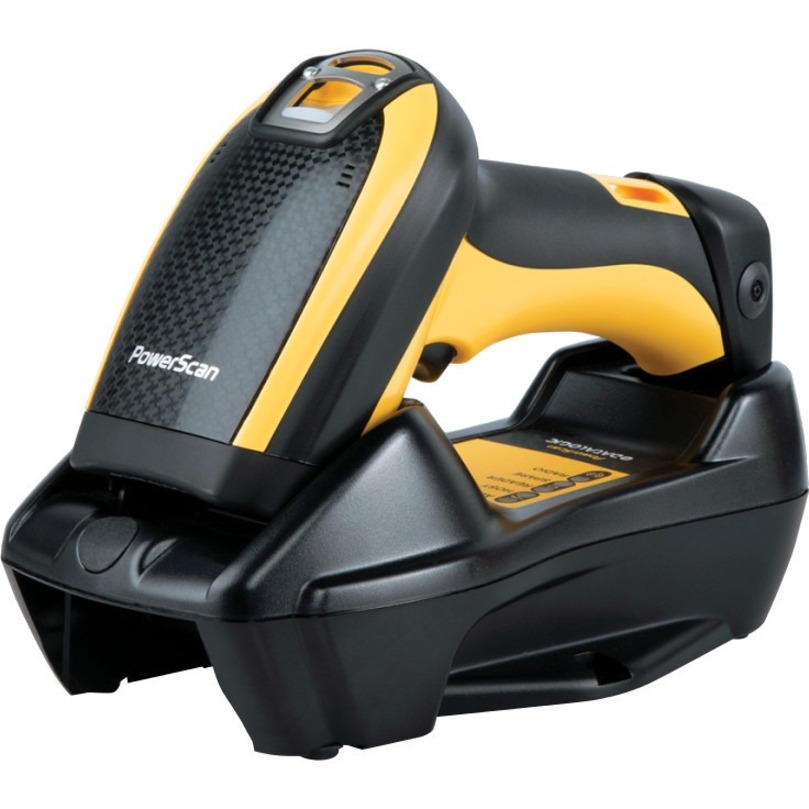

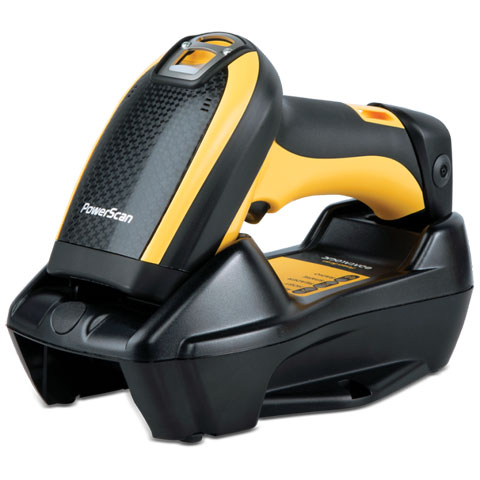

DataLogic Powerscan PBT9100 Barcode Scanner Model Overview
The PowerScan 9000 series of scanners has expanded and now introduces the PowerScan 9100 readers with new technology that provides an innovative laser-like green scanning line that implements the definition of a laser and the benefits of a linear imager scanner. The green scanning light has been proven to be the most comfortable color for the operators eyes. The PowerScan PBT9100 scanner features standard Bluetooth wireless technology combined with outstanding reliability and reading performance on 1D codes.
Datalogic PBT9100-RB Barcode Scanner Overview
NEW TECHNOLOGY COMBINED WITH PRODUCT RELIABILITY
The PowerScan™ 9000 series of scanners has expanded and now introduces the PowerScan 9100 readers with new technology that provides an innovative laser-like green scanning line that implements the definition of a laser and the benefits of a linear imager scanner. The green scanning light has been proven to be the most comfortable color for the operator's eyes. The PowerScan PBT9100 scanner features standard Bluetooth® wireless technology combined with outstanding reliability and reading performance on 1D codes.
CONFIGURABLE TO FIT ALL APPLICATIONS
Based on Bluetooth 3.0 standard wireless technology, the PowerScan PBT9100 scanner can be configured to be Class 1 or Class 2 compliant, according to the mobility range desired. Class 1 allows distances that exceed 90.0 m / 295.0 ft in open air. The scanner can be connected through the receiving base station to the host with a wide choice of interfaces (Serial, USB, Keyboard Wedge) or by connecting the scanner directly to any commercial or embedded Bluetooth compliant device. The PowerScan PBT9100 can also be connected through the BC9180-BT base/ charger to Ethernet networks using Standard Ethernet and Industrial Ethernet protocols (Ethernet IP and Modbus).
INDUSTRIAL APPLICATIONS
The PBT9100 scanner can be mounted on a forklift with a Vehicle Mount Terminal (VMT) providing a complete solution for warehouse applications. A quick 3-second battery replacement combined with a single or multi-slot battery charger allows for continuous operation without interruption
Base Station, Datalogic PowerScan 9501 Series, Dual Charger, 910 MHz, Multi-Interface (RS-232, USB, KBD Wedge and RS485), Spare Battery Slot, for North America
Base Presentation Charger, Datalogic PowerScan 9501, BC9030, Docking for Barcode Scanner, Charging Capability, Bluetooth Connectivity, Multi-Interface (RS-232, USB and Keyboard Wedge), Black, Must Order USB or RS-232 and Power Supply Separately
Cable, Datalogic Gryphon 4500,RS-232, 9 Pin Female, Straight, CAB-350 (Power Supply available on pin 9 of the connector or through external power supply), 6 ft.
Ease of Care Agreement, Datalogic PowerScan 9100 Linear Imager Series, PD91, Overnight Replacement, 3 Years, Comprehensive, Service, Service Depot, Exchange, Physical Service
In Stock
$65.70
Top Wireless Access Points Purchased With Datalogic PBT9100-RB
What makes the Datalogic PBT9100-RB scanner different from previous PowerScan models?
The PBT9100 introduces innovative green LED scanning technology that provides laser-like performance with the benefits of a linear imager scanner. The green scanning light has been proven to be the most comfortable color for operator eyes, reducing fatigue during extended scanning sessions while maintaining outstanding reliability and reading performance on 1D codes.
Is the Datalogic PBT9100-RB compatible with mobile devices and tablets?
Yes, the PBT9100-RB features standard Bluetooth wireless technology that allows it to connect to mobile computers, tablets, and other Bluetooth-enabled devices. This cordless design eliminates cable constraints and enhances mobility in warehouse and logistics environments, supporting seamless integration with iOS, Android, and other mobile platforms.
What are the reading range and depth of field specifications for the PBT9100-RB?
The PBT9100-RB offers exceptional reading ranges depending on barcode resolution. For Code 39 barcodes, it reads from 3.0 to 230.0 cm (1.2 to 90.6 inches) at 40 mils resolution, with a maximum resolution capability of 2.5 mils. The scanner maintains a reading angle of ±75° pitch, ±45° roll, and ±70° skew for versatile scanning positions.
How durable is the PBT9100-RB for warehouse and outdoor use?
The PBT9100-RB is built for rugged environments with an IP65 rating for particulate and water sealing, 20 kV ESD protection, and operating temperature range from -20 to 50°C (-4 to 122°F). These specifications make it suitable for demanding warehouse, logistics, and outdoor applications where durability and reliability are critical.
What connectivity options does the PBT9100-RB offer?
The PBT9100-RB provides multiple connectivity options including USB/Bluetooth connection capabilities, RS-232, USB COM, and USB HID Keyboard interfaces. This flexibility allows seamless integration with various warehouse management systems, point-of-sale terminals, and mobile computing devices available from us.
What feedback indicators does the PBT9100-RB provide for successful scans?
The PBT9100-RB features Datalogic's Three Green Lights (3GL™) technology combined with an adjustable beeper, providing multiple good-read feedback options including a green spot indicator on the scanned code and dual good-read LEDs. This comprehensive feedback system ensures operators immediately confirm successful reads and maintains high productivity in fast-paced environments.
The Datalogic PBT9100-RB Barcode Scanner is also known as
DTL-PBT9100RB
Full specifications (PDF)
