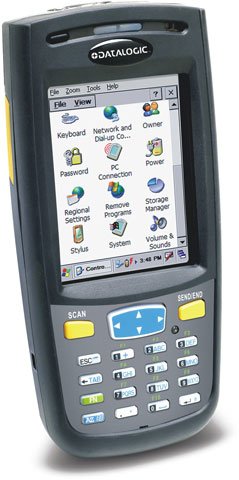

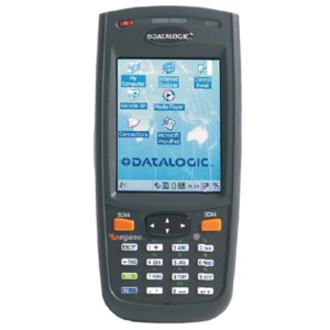

Datalogic P20-0001 Mobile Computer

Datalogic 950201003 Mobile Computer A newer version of this item is available.
It is replaced by the Datalogic 950201003 Mobile Computer.
Datalogic Pegaso - Datalogic Pegaso Portable Data Terminal - Intel XScale 520 MHz - 64 MB RAM - 128 MB Flash - 3.6" VGA, QVGA LCD - 19 Keys
  • 3.6" VGA display screen allows you to execute two applications at the same time
  • Improve work efficiency with laser scanning engine
  • Windows CE 5.0 OS offers reliable and real-time capabilities
  • 64 MB RAM / 128 MB flash memory increases business esteem significantly by guaranteeing greatest user efficiency
  • Batch connectivity technology helps you always stay connected to your handheld terminal for maximum productivity
Read More

Need a different version? See all Datalogic Pegaso Mobile Computers

Discontinued See Replacement
Add to Quote
Add to My Shopping List Add to Compare
Datalogic P20-0001 Mobile Computer
Datalogic P20-0001 Mobile Computer Datalogic P20-0001 Mobile Computer Datalogic P20-0001 Mobile Computer
Datalogic P20-0001 Mobile Computer
Datalogic P20-0001 Mobile Computer
Datalogic P20-0001 Mobile Computer
Full specifications (PDF)
Datalogic Pegaso Mobile Computer Model Overview
The Pegaso is an industrial PDA which is comfortable in both small and large hands. Extended capacity battery integrated into design. A wide variety of wireless and cabled options including USB On-The-Go and Bluetooth. SDIOport located top for easy access and extended cards.Viewable indoors or outdoors,provides high resolution for graphics or video applications.
Full specifications (PDF)
Technical Information
Connectivity Technology:
Batch
Light Source:
Laser
Scanner Range:
Standard Range
Barcode Symbology Supported:
  • Code 32
  • Code 39
  • Code 93
  • Codabar
  • Code 128
  • EAN/JAN-13
  • EAN/JAN-8
  • UPC-A
  • UPC-E
  • Interleaved 2 of 5
  • Matrix 2 of 5
  • MSI
  • Standard 2 of 5
  • Code 39 Full ASCII
  • EAN-128
  • RSS-Limited
  • RSS-Expanded
  • RSS-14
  • UPC/EAN 2 Digit Extensions
  • UPC/EAN 5 Digit Extensions
Drop Specification (To Concrete):
60"
Processor & Chipset
Processor Manufacturer:
Intel
Processor Type:
XScale
Processor Speed:
520 MHz
Memory
Standard Memory:
64 MB
Flash Memory:
128 MB
Display & Graphics
Screen Size:
3.6"
Screen Mode:
  • VGA
  • QVGA
Screen Resolution:
480 x 640
Display Color:
Color
Display Screen Type:
LCD
Keyboard/Keypad
Number of Keys:
19
Software
Operating System:
Windows CE 5.0
Battery Information
Battery Capacity:
2200 mAh
Battery Chemistry:
Lithium Ion (Li-Ion)
Miscellaneous
Certifications & Standards:

Electrical:

  • EN60950
  • UL60950
  • CSA 60950

Radio:

  • FCC Part 15-C
  • R&TTE
  • IC
  • IDA

Battery:

  • EN60950
  • UL60950-1
  • IATA/UN 3090
  • UL2054

Laser Classification:

  • CDRH Class II

Emissions:

  • FCC Part 15-B
  • CISPR 22
Environmentally Friendly:
Yes
Item Numbers
UNSPSC: 43211715
Questions? Get Help from
a Mobile Expert!

What is your operating system?

The Datalogic P20-0001 Mobile Computer is also known as DTL-P200001 or P20-0001.
