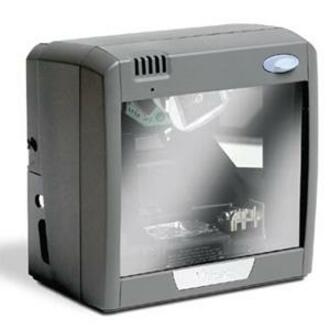

Datalogic M22-01 Barcode Scanner

Datalogic M22-01R Barcode Scanner A newer version of this item is available.
It is replaced by the Datalogic M22-01R Barcode Scanner.
Datalogic Magellan 2200VS - Magellan 2200VS Vertical Scanner (Multi-Interface, RSS, Standard Counter Mount, No Cable and No Power Supply)
  • With laser scanning technology you don't have to use any additional lighting as it works effectively in low ambient lighting conditions too
  • Wired connectivity makes this scanner ideal for retail and desktop applications
Read More
Discontinued See Replacement
Add to Quote

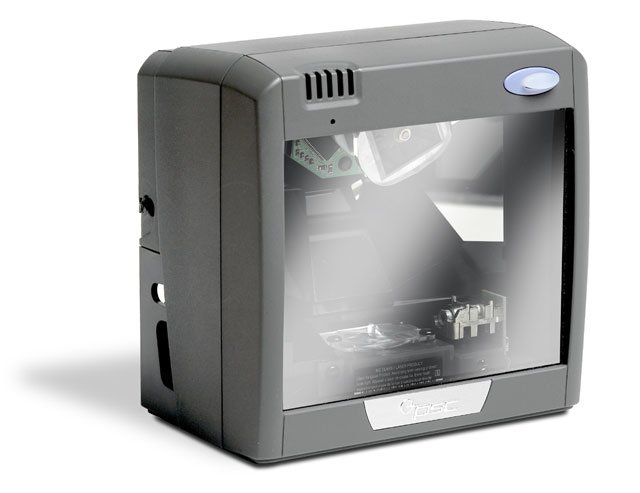

Datalogic Magellan 2200VS Barcode Scanner Model Overview
The Datalogic Magellan 2200VS uses Magellan 8500 Series scanning technology to create one of the quickest and easiest-to-use vertical scanners in the industry. The Magellan 2200VS features a large, dense scanning pattern to improve both checkout speed and operator ergonomics. The Magellan 2200VS supports all popular barcode symbologies including RSS. With the ability to upgrade the system software via flash memory, diagnostic reporting, the Productivity Index Reporting software and FirstStrike decoding, the Magellan 2200VS will be a productive part of any enterprise for years to come.
Datalogic M22-01 Barcode Scanner Overview

The Magellan 2200VS features OmegaTek Productivity Technology comprised of hardware and software innovations that significantly improve scanner performance by improving the first pass read rates on hard-to-read bar codes. The Magellan 2200VS offers best-in-class vertical scanning performance and software for improving POS productivity. With these and other great features, plus a very economical price-point, the Magellan 2200VS is the choice for vertical single-plane POS scanning.

Technical Information
Connectivity Technology:
Cable
Barcode Symbology Supported:
  • UPC Versions A&E
  • UPC Add-on sub 2 or P2
  • UPC Supplementals (Bookland & Coupon Code)
  • UPC Add-on C128
  • RSS-14
  • RSS-Expanded
  • RSS-14 Stacked
  • EAN-8
  • EAN-13
  • JAN-8
  • JAN-13
  • EAN/JAN Two Label
  • Code 93
  • Code 39 Full ASCII
  • Code 128
  • Interleaved 2 of 5
  • Standard 2 of 5
  • Italian Pharmacode
  • Codabar (NW7)
  • MSI/PLESSEY
  • UPC Add-on sub 5 or P5
  • UCC/EAN 128
Light Source:
Laser
Depth of Field:
  • 8"
Interfaces/Ports
Host Interface:
Multi-interface
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Physical Characteristics
Form Factor:
In-counter
Height:
6"
Width:
6"
Depth:
3.8"
Weight (Approximate):
2.50 lb
Miscellaneous
Additional Information:

Supported Interfaces:

  • Serial
  • IBM 46XX
  • USB
  • Keyboard Wedge
  • Certifications & Standards:

    Electrical:

    • EN60 950
    • PSE-Mark
    • UL60950
    • CSA 60950

    Emissions:

    • CISPR22-B
    • FCC part 15 Class B
    • VCCI-B
    • EN 55022-B
    • NOM

    Laser Safety:

    • CDRH Class IIa
    • EN 60825-1 Class 1
    • IEC 60825-1 Class 1
    • IEC 60825 Class 1

    Restriction of Hazardous Substances:

    • EU RoHS
    Warranty
    Limited Warranty:
    1 Year
    Item Numbers
    UNSPSC: 43211701
    Get help from a Barcoding Expert!

    What type of Barcode are you scanning?

    The Datalogic M22-01 Barcode Scanner is also known as PSC-M2201 or M22-01.
