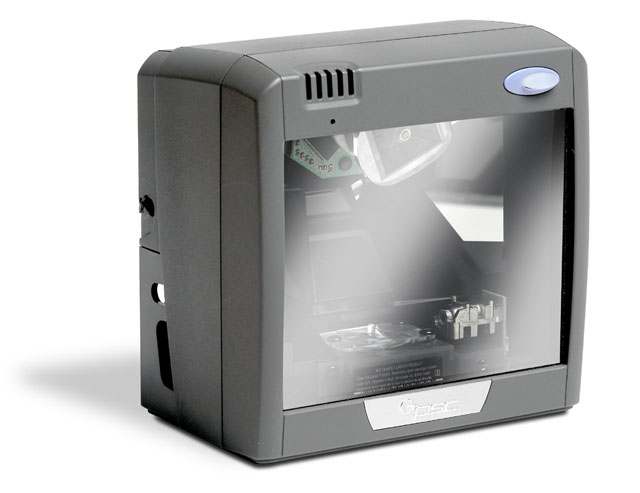

Datalogic M22-01R Barcode Scanner

The Datalogic M22-01R Barcode Scanner has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Datalogic Magellan 2200VS - Magellan 2200VS Vertical Scanner (Multi-Interface, RSS STD Counter Mount and No Accessories)
  • With laser scanning technology you don't have to use any additional lighting as it works effectively in low ambient lighting conditions too
  • Perfect for applications that require direct association with a workstation or a notebook
Read More

Need a different version? See all Datalogic Magellan 2200VS Barcode Scanners

Discontinued Need Assistance?
Add to Quote
Add to My Shopping List Add to Compare
Datalogic M22-01R Barcode Scanner
Datalogic M22-01R Barcode Scanner Datalogic M22-01R Barcode Scanner Datalogic M22-01R Barcode Scanner Datalogic M22-01R Barcode Scanner Datalogic M22-01R Barcode Scanner
Datalogic M22-01R Barcode Scanner
Datalogic M22-01R Barcode Scanner
Datalogic M22-01R Barcode Scanner
Datalogic M22-01R Barcode Scanner
Datalogic M22-01R Barcode Scanner
Full specifications (PDF)
Datalogic Magellan 2200VS Barcode Scanner Model Overview
The Datalogic Magellan 2200VS uses Magellan 8500 Series scanning technology to create one of the quickest and easiest-to-use vertical scanners in the industry. The Magellan 2200VS features a large, dense scanning pattern to improve both checkout speed and operator ergonomics. The Magellan 2200VS supports all popular barcode symbologies including RSS. With the ability to upgrade the system software via flash memory, diagnostic reporting, the Productivity Index Reporting software and FirstStrike decoding, the Magellan 2200VS will be a productive part of any enterprise for years to come.
Datalogic M22-01R Barcode Scanner Overview

The Magellan 2200VS features OmegaTek Productivity Technology comprised of hardware and software innovations that significantly improve scanner performance by improving the first pass read rates on hard-to-read bar codes. The Magellan 2200VS offers best-in-class vertical scanning performance and software for improving POS productivity. With these and other great features, plus a very economical price-point, the Magellan 2200VS is the choice for vertical single-plane POS scanning.

Full specifications (PDF)
Technical Information
Connectivity Technology:
Cable
Barcode Symbology Supported:
  • UPC Versions A&E
  • UPC Supplementals (Bookland & Coupon Code)
  • UPC Add-on sub 2 or P2
  • UPC Add-on sub 5 or P5
  • UPC Add-on C128
  • RSS-14
  • RSS-14 Expanded
  • RSS-14 Stacked
  • EAN-13
  • EAN-8
  • JAN-8
  • JAN-13
  • EAN/JAN Two Label
  • UCC/EAN 128
  • Code 39 Full ASCII
  • Code 128
  • Code 93
  • Interleaved 2 of 5
  • Standard 2 of 5
  • Italian Pharmacode
  • Codabar (NW7)
  • MSI/PLESSEY
Light Source:
Laser
Depth of Field:
  • 8"
Interfaces/Ports
Host Interface:
Multi-interface
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Physical Characteristics
Form Factor:
Desktop
Height:
6"
Width:
6"
Depth:
3.8"
Weight (Approximate):
2.50 lb
Miscellaneous
Additional Information:

Supported Interfaces:

  • Serial
  • IBM 46XX
  • USB
  • Keyboard Wedge

    • Certifications & Standards:

    Electrical:

    • EN60 950(TÜVEurope)
    • PSE-Mark(Japan)
    • UL60950(USA)
    • CSA 60950(Canada)

    Emissions:

    • CISPR22-B(World)
    • FCC part 15 Class B(USA)
    • VCCI-B(Japan)
    • EN 55022-B(Europe)
    • NOM(Mexico)

    Laser Safety:

    • CDRH Class IIa(USA/Canada)
    • EN 60825-1 Class 1(Europe)
    • IEC 60825-1 Class 1 (World)
    • IEC 60825 Class 1(Europe)

    Restriction of Hazardous Substances:

    • EU RoHS
    Environmentally Friendly:
    Yes
    Warranty
    Limited Warranty:
    1 Year
    Item Numbers
    GTIN: 5712505521984
    EAN: 5712505521984
    UNSPSC: 43211701
    Get help from a Barcoding Expert!

    What type of Barcode are you scanning?

    The Datalogic M22-01R Barcode Scanner is also known as DTL-M2201R or M22-01R.
