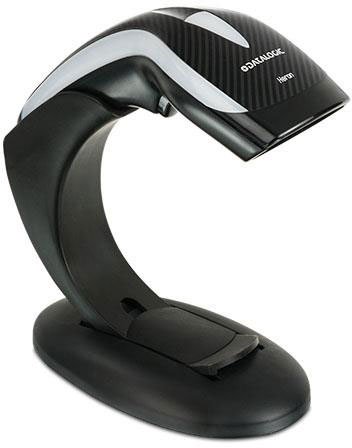

Datalogic Heron HD3100 Barcode Scanner Model Overview
The HERON™ HD3100 from Datalogic elevates your point of sale experience through its innovative blend of style and functionality. Designed to impress, this elegant linear imager not only enhances your checkout aesthetics but also solidifies your brand presence at the final interaction point with customers. Its customizable features—including a choice of top cover colors and logos—combined with advanced scanning capabilities like Datalogic's patented 'Green Spot' technology, makes the HD3100 a productive powerhouse ideal for retail settings.
Key features:
Unique Design: Innovative and stylish aesthetics to enhance your POS.
Custom Branding: Personalize with logo and color feedback options.
Performance: 270 reads/sec with seamless handheld and hands-free operation.
Audio Feedback: Polyphonic speaker for versatile sound choices.
Durability: Drop resistant and robust, built for demanding environments.
5-Year Warranty: Comprehensive protection for your investment.
Specifications:
Decoding Capability: 1D/Linear Codes, Postal Codes, Stacked Codes
Electrical:
Input Voltage: 5 VDC +/- 5%
Current: Operating (Typical): <300 mA @ 5 VDC
Environmental:
Drop Resistance: Withstands drops from 1.5 m / 5.0 ft
Temperature: Operating (0 to 50 °C) / Storage (-20 to 70 °C)
Humidity: 5-90% (Non-Condensing)
Sealing: IP40
Interfaces: RS-232 / USB / Keyboard Wedge Multi-Interface
Dimensions: 15.2 x 15.3 x 6.8 cm / 6.0 x 6.0 x 2.7 in
Weight: 150.0 g / 5.3 oz
Reading Performance:
Read Rate: 270 reads/sec.
Resolution: Maximum 0.100 mm / 4 mils
Reading Ranges: Up to 60.0 cm / 23.6 in
Warranty: 5-Year Factory Warranty

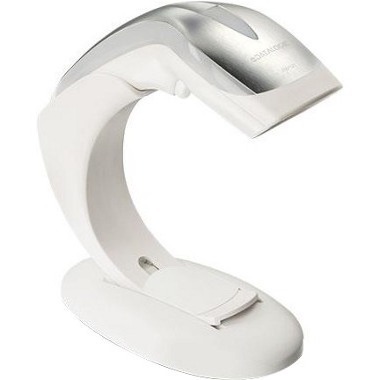

Datalogic HD3130-WHK1B Barcode Scanner Overview
The Heron™ HD3100 linear imager brings unmatched elegance along with the latest advanced technology to the modern point-of-sale. The stylish silhouette of the new imager enriched with multiple color changing lights, innovative and modern design material, together with the audio speaker, amplifies the customer's brand experience at the point-of-sale.
The Heron HD3100 imager differs from the usual color scheme of handheld devices by providing a stunning 'black' or 'white' color option, emphasizing the curving lines of the new enclosure. Additionally, the Heron imager features in-mold decorated top covers with a choice of 'Carbon Fiber' or 'Silver' design. This imager also offers opportunities to incorporate a company brand identity by allowing customers to compose the perfect blend: combining a company logo with the top cover color with customized visual and audio feedback in order to reinforce the value of the customer's brand.
Cable, Datalogic Gryphon 4500,RS-232, 9 Pin Female, Straight, CAB-350 (Power Supply available on pin 9 of the connector or through external power supply), 6 ft.
What barcode types does the Datalogic HD3130 scanner read?
The Datalogic HD3130 uses a 1D CCD imager that autodiscriminates all standard 1D linear codes, including GS1 DataBar linear codes and postal codes like China Post. It also reads stacked codes including GS1 DataBar Expanded Stacked, GS1 DataBar Stacked, and GS1 DataBar Stacked Omnidirectional formats. This makes it ideal for general-purpose retail and warehouse applications where 1D barcode scanning is the primary requirement.
How fast does the HD3130 scan barcodes?
The Datalogic HD3130 delivers a maximum read rate of 270 scans per second, enabling quick transaction processing at the point-of-sale or in warehouse environments. With a maximum resolution of 0.100 mm (4 mils) and a minimum print contrast ratio of 15%, the scanner maintains reliable performance even with standard-quality barcodes. This scanning speed is optimized for high-volume retail and logistics applications.
What connectivity options are available with the HD3130?
The HD3130 offers multi-interface connectivity including RS-232, USB, and Keyboard Wedge options, allowing flexible integration into existing point-of-sale and warehouse management systems. The kit includes a USB cable for straightforward setup, and the scanner can be configured for different interface requirements depending on your system architecture. Contact us today to discuss which connectivity option best fits your infrastructure.
Is the Datalogic HD3130 durable enough for warehouse environments?
Yes, the HD3130 is built for tough environments with IP40 particulate and water sealing, 16 kV ESD protection, and the ability to withstand repeated drops from 1.5 meters (5 feet) onto concrete surfaces. It operates reliably in ambient light conditions up to 100,000 lux and handles humidity from 5-90% non-condensing, making it suitable for both climate-controlled retail spaces and warehouse settings. The scanner weighs only 150 grams, providing portability without sacrificing ruggedness.
What's included in the HD3130 kit?
The Datalogic HD3130-WHK1B kit includes the 1D barcode scanner, a convenient stand for hands-free operation, and a USB cable for immediate deployment. The white color option provides a modern aesthetic for customer-facing point-of-sale environments, while the included stand allows flexible positioning for different scanning workflows. We offer this complete kit ready to deploy—visit barcodesinc.com to order or contact us for volume pricing.
What are the power requirements for the HD3130 scanner?
The HD3130 operates on 5 VDC with typical current consumption of less than 300 mA and maximum consumption under 500 mA, making it compatible with standard USB power supplies and point-of-sale systems. The low power draw ensures minimal impact on your infrastructure while supporting continuous scanning operations throughout the business day. The scanner's efficient design also reduces heat generation in enclosed retail or warehouse environments.
The Datalogic HD3130-WHK1B Barcode Scanner is also known as
DTL-HD3130WHK1B
or HD3130WHK1B.
Full specifications (PDF)
