Datalogic Gryphon GPS4400 Barcode Scanner Model Overview
The Gryphon™ GPS4400 2D Oimagining scanner is engineered for modern retail environments, offering unmatched versatility with its omnidirectional scanning capabilities. Ideal for both small items and bulkier products, this scanner excels in space-constrained settings thanks to its compact design and adjustable stand. With advanced features that include mobile code reading, near-field scanning, and high motion tolerance, the GPS4400 enhances the checkout experience, ensuring swift and accurate transactions while significantly reducing misreads.
Key Features
Snappy omnidirectional reading for quick transactions
Intuitive aiming system enhances ease of use
Ergonomic and compact design for hands-free or handheld operation
Image capture capability for document scanning
Supports various interfaces: RS-232 or USB (USB-HID or USB COM)
Adjustable stand for optimal positioning
EASEOFCARE Service Plans for investment protection and productivity assurance
Specifications
Decoding Capability:
1D/Linear Codes
2D Codes
Postal Codes
Stacked Codes
Operating Temperature: 0 to 50 °C / 32 to 122 °F
Input Voltage: 5 VDC (+/- 5%)
Drop Resistance: 1.2 m / 4 ft onto concrete
Weight: 295 g with stand / 178 g without stand
Warranty: 3-Year Factory Warranty

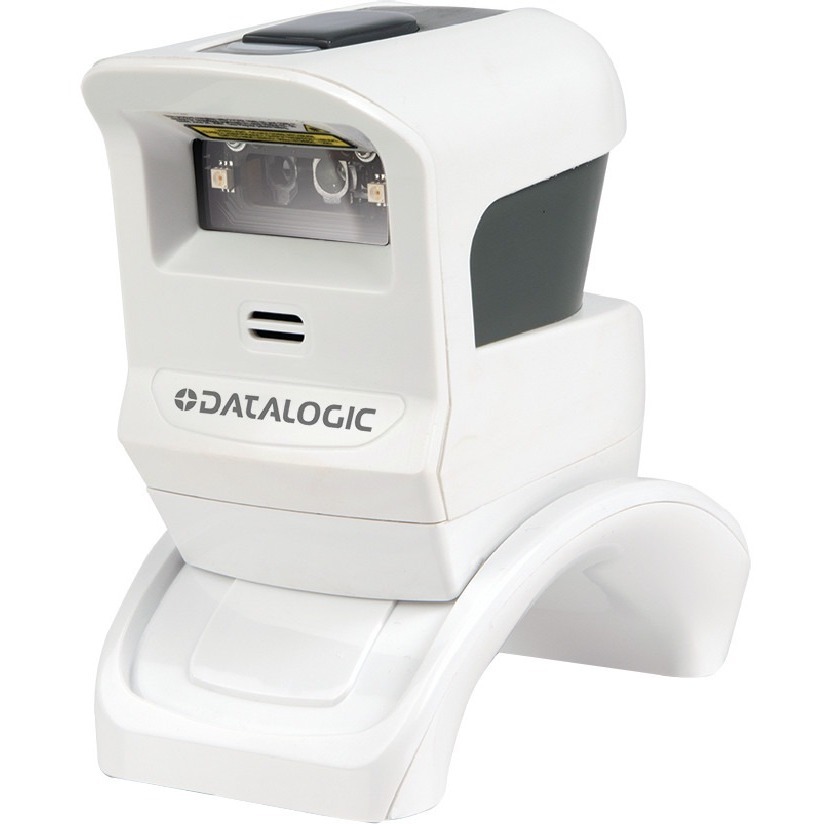

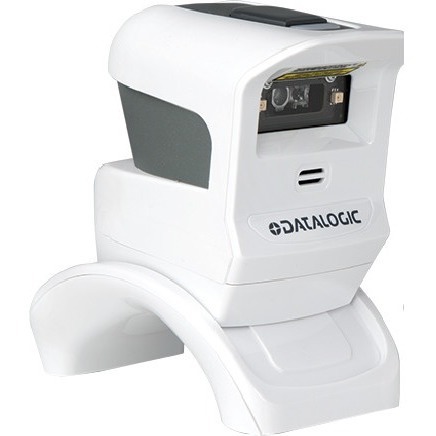

Datalogic GPS4421-WHK1B Barcode Scanner Overview

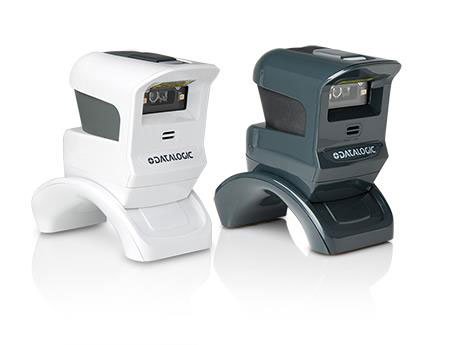

The Gryphon™ GPS4490 scanner is a presentation scanner in a stylish body available in white or dark grey. The GPS4490 scanner offers all the capabilities and performances of the Gryphon GD4400 handheld scanner but in a presentation-style shape. It allows hands-free scanning of small and easily handled items as well as handheld scanning operation for bulkier items.
The reader's compact size makes it the ideal solution for space-constrained environments. Its adjustable stand positions the scanner for easy, intuitive reading. The stand can easily be removed if it is not needed, further reducing the overall dimensions of the scanner.
Capable of reading codes from mobile phones, PDAs and computer display screens, the GPS4400 presentation scanner also features outstanding near-field reading, a wide angle field-of-view, high motion tolerance, snappy reading and offers excellent performance on decoding poor or damaged bar codes. As with all Gryphon products, it offers good-read visual confirmation with Datalogic's patented 'Green Spot' technology as well as supporting advanced features like image / signature capture and document scanning, eliminating the need for separate equipment at the POS.
Cable, Datalogic Gryphon 4500,RS-232, 9 Pin Female, Straight, CAB-350 (Power Supply available on pin 9 of the connector or through external power supply), 6 ft.
Cable, Datalogic QuickScan 2131, RS-232, 25 Pin Female, Coiled, CAB-363 (Power available on pin 9 of the connector or through external power supply), 6 ft.
What barcode types does the Datalogic GPS4421 scanner read?
The Datalogic GPS4421 is a 2D area imager that reads both 1D linear codes (including all standard barcodes and GS1 DataBar formats) and 2D codes such as QR Code, Data Matrix, Aztec Code, and Micro QR Code. It also decodes postal codes and stacked codes like PDF417 and GS1 DataBar Composites, making it versatile for most retail and warehouse applications.
Is the Datalogic GPS4421 a corded or wireless scanner?
The Datalogic GPS4421 is a corded presentation scanner that connects via USB cable (included: USB cable 90A052278). It draws 5 VDC power and offers USB interface options including OEM USB, USB COM, and USB HID Keyboard modes, making it ideal for fixed checkout counters and point-of-sale environments.
Can the GPS4421 scanner be used both as a handheld and presentation scanner?
Yes, the GPS4421 features an adjustable stand that positions the scanner for hands-free omnidirectional reading of small items on a counter, and the stand can be easily removed for handheld scanning of bulkier items. This dual-mode capability makes it flexible for space-constrained retail and warehouse environments.
What are the environmental durability specs for the GPS4421?
The GPS4421 withstands repeated drops from 1.2 meters (4.0 feet) onto concrete, offers IP52 particulate and water sealing, and operates reliably in ambient light conditions from 0 to 100,000 lux. It also provides 16 kV ESD protection and operates in temperatures from 0 to 40°C (32 to 104°F), making it suitable for demanding warehouse and retail environments.
What are the physical dimensions of the GPS4421 scanner?
With the stand attached, the GPS4421 measures 12.1 x 10.7 x 7.3 cm (4.8 x 4.2 x 2.9 inches), and without the stand it measures 7.4 x 9.5 x 6.4 cm. The compact design makes it ideal for space-constrained checkout counters and point-of-sale installations.
What connectivity options does the GPS4421 offer?
The GPS4421 provides USB and RS-232 connectivity, with USB supporting OEM USB, USB COM, and USB HID Keyboard interface modes. This flexibility allows seamless integration with most POS systems, retail platforms, and warehouse management software. Contact us today to ensure compatibility with your existing systems.
The Datalogic GPS4421-WHK1B Barcode Scanner is also known as
DTL-GPS4421WHK1B
or GPS4421WHK1B.
Full specifications (PDF)
