Datalogic GM4431-BK-910K1 Barcode Scanner

Datalogic GM4500-BK-910K1 Barcode Scanner A newer version of this item is available.
It is replaced by the Datalogic GM4500-BK-910K1 Barcode Scanner.

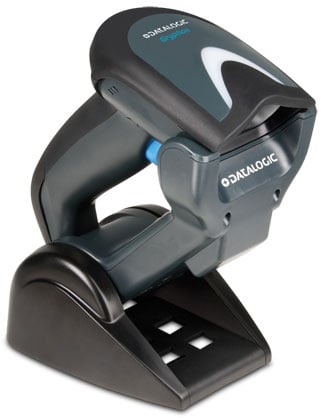

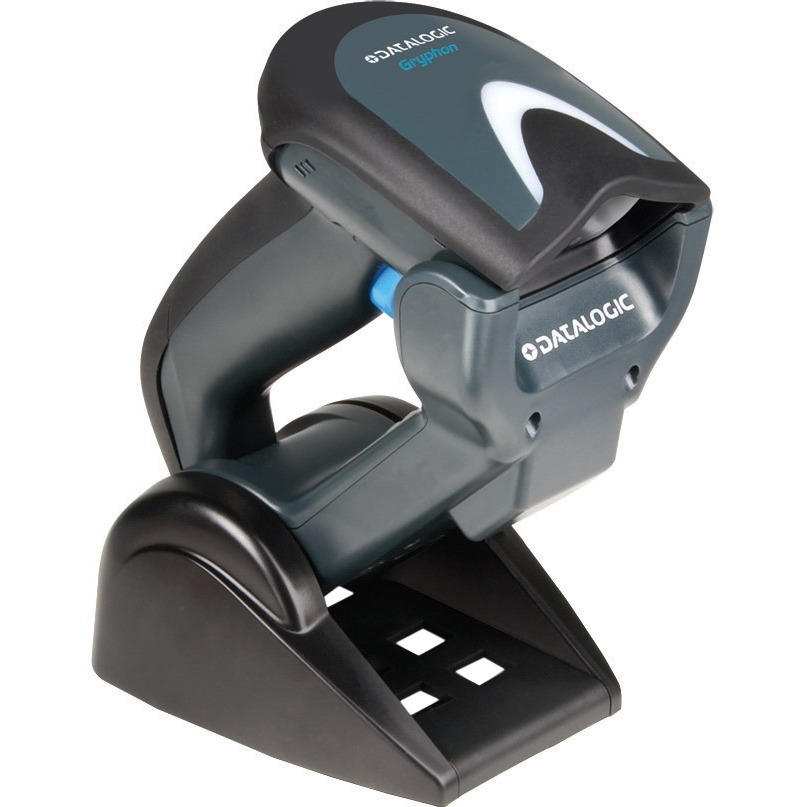

Datalogic Gryphon I GM4400 - Datalogic Gryphon GM4400 2D General Purpose Handheld Area Imager Barcode Scanner with Datalogic's STAR Cordless System - Wireless Connectivity - 98.43 ft Scan Distance - 1D, 2D - Laser - Imager - Omni-directional - , Radio Frequency - USB - Black
  • Offers custom fitted for medium to high volume point-of-sale applications that require elite performance in a single plane horizontal form factor
  • Reads all 1D barcodes with ease so you can accomplish all your tasks more efficiently
  • Streamline your business processes with an imager that point-shoots with high-performance scanning
  • Laser scan engine guarantees rapid error free data entry
Read More
Discontinued See Replacement
Add to Quote
Datalogic Gryphon I GM4400 Barcode Scanner Model Overview
The Gryphon I GM4400 blends the most advanced reading technology and the best suitable radio technology with a unique set of features to allow operators maximum efficiency and ease of use. Lightweight and comfortable to use, the steady, dim, deep red illumination light is much easier on the eyes than other similar products with flicker illumination. The highly visible 4-Dot aimer clearly defines the reading zone and the center cross provides a locator for targeting when scanning a sheet or product with multiple bar codes. Featuring narrow band radio communications with Datalogic's STAR Cordless System, the Gryphon I GM4400 provides increased productivity and flexibility in the workplace. The Gryphon I GM4400 reader series offer scalable solutions from simple point-to-point applications to point-to-multipoint installations with up to 16 readers connected to the same base station. The Gryphon I GM4400 readers "Batch Mode" capability allows thousands of codes to be stored in its' memory. This feature, combined with a long-lasting 60,000 scans-per-charge Lithium-Ion battery allows uninterrupted scanning with unlimited mobility.
Datalogic GM4431-BK-910K1 Barcode Scanner Overview

With rich feature sets, the Gryphon series from Datalogic ADC represents the premium level of data collection equipment for general purpose applications. The Gryphon GM4400 2D scanner blends the most advanced reading technology and the best suitable radio technology with a unique set of features to allow operators maximum efficiency and ease of use.

Technical Information
Connectivity Technology:
Wireless
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:

1D / Linear Codes:

  • Auto Discriminates All Standard 1D Codes Including GS1 DataBar Liinear Codes

2D Codes:

  • Aztec Code
  • China Han Xin Code
  • Data Matrix
  • MaxiCode
  • QR Code

Postal Codes:

  • Australian Post
  • China Post
  • IMB
  • Japanese Post
  • KIX Post
  • Korea Post
  • Planet Code
  • Postnet
  • Royal Mail Code (RM4SCC)

Stacked Codes:

  • EAN/JAN Composites
  • GS1 DataBar Composites
  • GS1 DataBar Expanded Stacked
  • GS1 DataBar Stacked
  • GS1 DataBar Stacked Omnidirectional
  • MacroPDF
  • MicroPDF417
  • PDF417
  • UPC A/E Composites
Light Source:
Laser
Image Sensor Type:
Imager
Maximum Scan Resolution:
7 mil
Depth of Field:
  • 1.6" - 7.5"@5mil - Code 39
  • 0.4" - 11.8"@10mil - Code 39
  • 0.8" - 6.3"@10mil - Data Matrix
  • 0" - 9.3"@15mil - Data Matrix
  • 0.6" - 15.7"@13mil - EAN-13
  • 0.2" - 8.6"@10mil - PDF417
  • 1.2" - 4.9"@10mil - QR Code
Scan Pattern:
Omni-directional
Scanning Distance:
98.43 ft
Network & Communication
Radio Frequency:
Yes
Interfaces/Ports
Host Interface:
USB
Power Description
Power Supply Included:
Yes
Battery Information
Battery Chemistry:
Lithium Ion (Li-Ion)
Physical Characteristics
Form Factor:
Handheld
Product Color:
Black
Height:
7.1"
Width:
2.8"
Depth:
3.9"
Weight (Approximate):
8.64 oz
Miscellaneous
Package Contents:
  • Gryphon GM4400 2D General Purpose Handheld Area Imager Bar Code Reader with Datalogic's STAR Cordless System
  • BC4031 Base
  • Cable 90A052065
  • Power Supply
  • Line Cord
Additional Information:

USB Cable separate

Environmentally Friendly:
Yes
Environmental Certification:
  • RoHS
  • China RoHS
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 0007540625267, 0609527455944, 0783555026304
UPC: 007540625267, 609527455944, 783555026304
EAN: 0007540625267, 0609527455944, 0783555026304
UNSPSC: 43211701
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Datalogic GM4431-BK-910K1 Barcode Scanner is also known as DTL-GM4431-BK-910K1 or GM4431BK910K1.
