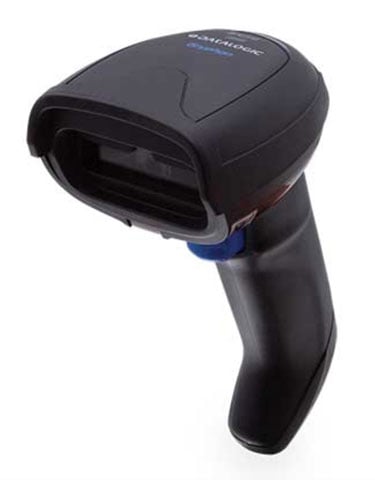

Datalogic Gryphon GM4200 Barcode Scanner Model Overview
The Gryphon 4200 series introduces you to a premium range of 1D handheld scanners from Datalogic. The GM4200 1D scanner is designed to deliver a best-in-class reading performance. Narrow band radio communications with Datalogic?s STAR Cordless System set the GM4200 apart. You will be impressed by its ability to capture barcodes from near to far, to read both high-density and low resolution codes, to decode hard-to-read, poorly printed or damaged codes and to easily read barcodes from mobile devices simplifies all applications. Ideal for handheld reading, the GM4200 utilizes motion-sensing technology, which detects the natural actions of the operator to automatically switch the scanner into the ?ready-to-read? scanning mode.
The Gryphon™ 4200 series represents the premium range of hand held scanners from Datalogic for general purpose applications.
Designed with people in mind, the Gryphon 4200 wireless reader stands out with an elegant and trendy design, unchallenged ergonomics and outstanding reading performance. The Gryphon I GD4200 readers' ability to capture bar codes from near to far, to read both high-density and low-resolution codes, to decode hard-to-read, poor or damaged codes and to easily read bar codes from mobile devices make these readers the perfect choice for today's and tomorrow's applications.
WIRELESS COMMUNICATIONS
Featuring Bluetooth® wireless technology (GBT models) or narrow band radio communications with Datalogic's STAR Cordless System™ (GM models), the Gryphon 4200 wireless readers provide maximum flexibility to solve any end user application with the best technical solution.
WIRELESS CHARGING
One of the most important technical innovations that the Gryphon 4200 wireless scanners achieve is the battery recharge through an inductive charging system, which enhances the reliability of the entire solution, lowering the total cost of ownership because it eliminates the need for contacts' cleaning and maintenance procedures. The maximum reliability offered by the wireless charging technology means 24/7 activities with no stops for maintenance or repair and top-level operating productivity and performance.
EASY TO USE FOR MAX EFFICIENCY
The Gryphon 4200 wireless scanners utilize Datalogic's Motionix™ to automatically switch into the 'ready-to-read' scanning mode and to activate the distinctive 'soft line viewfinder' which helps the operator to easily target the code to be read.
The Datalogic's exclusive patented 'Green Spot' for good-read feedback directly on the code is ideal under dim lighting conditions or noisy environments.
READY TO BE REGULARLY CLEANED AND DISINFECTED
Most of the working environments now have requirements that scanners need to be regularly cleaned and disinfected. The Gryphon 4200 series exploits Disinfectant-Ready enclosures, designed to withstand regular daily cleaning with harsh disinfectant solutions commonly used in a healthcare environment.
FEATURES
Enhanced linear imaging technology for superior scanning and Depth of Field
Reads 1D high-density and low-resolution codes, hard-to-read, poor or damaged codes and bar codes from mobile devices
Datalogic distinctive 'soft line viewfinder' to easily target the code to be read
Datalogic's patented 'Green Spot' technology and exclusive 3GL™ (3 Green Lights) for superior good-read feedback
Motionix motion-sensing technology for seamless reading mode transitions
Choice of Bluetooth wireless technology version 4.0 with BLE or Datalogic's STAR Cordless System (radio frequencies available in 433 MHz or 910 MHz)
Wireless battery charging system
Choice of WLC4190 sleek desk/wall cradle with USB Type C connectivity or WLC4090 adjustable position cradle with Scan-While-Charging capability
Batch Mode capability
Point-to-point / Point-to-multipoint transmission
Long lasting replaceable Lithium-Ion battery
Disinfectant-Ready enclosures withstand daily cleaning with harsh disinfectant solutions
EASEOFCARE Service Plans offer a wide range of service options to protect your investment, ensuring maximum productivity and ROI
Cable, Datalogic Gryphon 4500,RS-232, 9 Pin Female, Straight, CAB-350 (Power Supply available on pin 9 of the connector or through external power supply), 6 ft.
What is the reading range of the Datalogic GM4200-BK-910-WLC barcode scanner?
The Gryphon GM4200 features excellent reading performance across multiple barcode types. For standard Code 39 barcodes at 10 mils, the scanner reads from 1.0 to 30.0 cm (0.4 to 11.8 inches), while EAN-13 codes at 13 mils can be read from 1.5 to 40.0 cm (0.6 to 15.7 inches). This near-to-far reading capability makes it ideal for general purpose warehouse and retail applications where barcode distances vary.
Does the Datalogic GM4200 work wirelessly, and what is the battery life?
Yes, the GM4200-BK-910-WLC is a cordless scanner featuring Datalogic's STAR Cordless System with 910 MHz narrow band radio communications for increased mobility and flexibility in the workplace. The scanner is equipped with a long-lasting Lithium-Ion battery that delivers approximately 50,000 scans per charge, allowing unlimited mobility and reliable data collection even when out of range from the base station with Batch Mode capability.
What interfaces does the Datalogic GM4200 support for connectivity?
The GM4200-BK-910-WLC offers versatile multi-interface connectivity including USB, Serial (RS-232), and Keyboard Wedge (KBW) options. This allows seamless integration with various warehouse management systems, point-of-sale terminals, and legacy equipment without requiring specialized adapters or software modifications.
What makes the Datalogic GM4200 suitable for difficult barcode reading conditions?
The Gryphon 4200 utilizes advanced 1D linear imaging technology with a Wide VGA sensor (752 x 480 pixels) that excels at decoding hard-to-read, poorly printed, or damaged barcodes. The scanner's motion-sensing technology automatically switches it into ready-to-read mode based on operator movements, while the 4-dot aimer and steady red illumination provide clear targeting and reduce eye strain compared to flickering alternatives.
Is the Datalogic GM4200 durable enough for warehouse environments?
Yes, the GM4200 is designed as a premium handheld scanner built for general purpose warehouse and light industrial applications requiring durability and reliability. The scanner features motion tolerance of 25 inches per second and maintains consistent performance across a wide reading angle (pitch ±40°, roll 360°, skew ±40°), making it suitable for fast-paced warehouse operations.
What is included with the Datalogic GM4200-BK-910-WLC scanner?
The GM4200-BK-910-WLC is available as a scanner-only unit, allowing you to configure your complete system based on your specific needs. We offer compatible wireless charging cradles and base stations separately, so you can build the exact solution required for your warehouse or retail environment. Contact us today to discuss which accessories and configurations best fit your application.
The Datalogic GM4200-BK-910-WLC Barcode Scanner is also known as
DTL-GM4200BK910WLC
or GM4200BK910WLC.
Full specifications (PDF)
