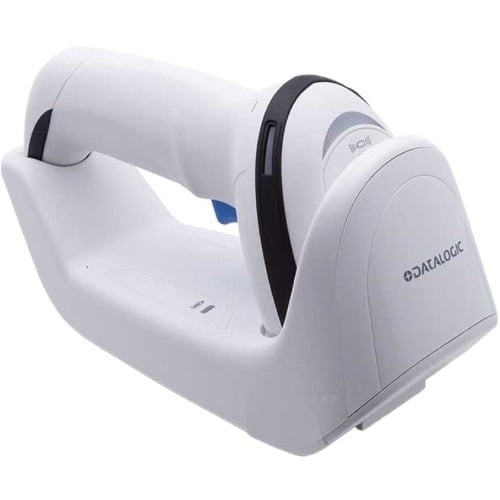

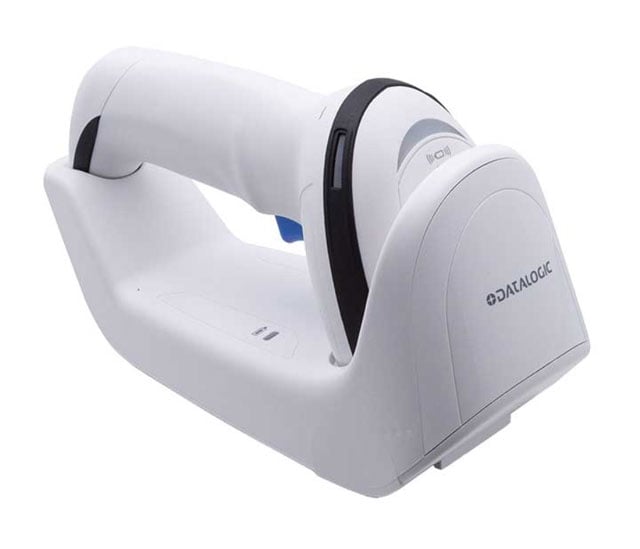

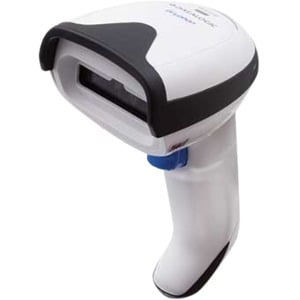

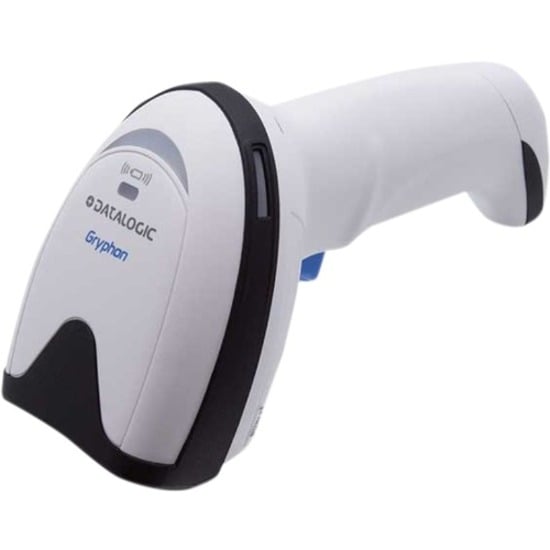

Datalogic Gryphon GBT4200 Barcode Scanner Model Overview
The Gryphon™ GBT/GM4200 from Datalogic is the ultimate premium wireless scanner designed for general-purpose applications. Its elegant and ergonomic design enhances user experience while delivering outstanding reading performance. Equipped with advanced technologies, this scanner reads a variety of barcodes, including high-density and low-resolution codes. The innovative wireless charging system ensures uninterrupted operation, while its disinfectant-ready enclosure meets the rigorous cleaning standards of today’s environments, making it perfect for retail, healthcare, and more.
Key Features
Enhanced linear imaging technology for superior scanning and depth of field.
Reads 1D high-density, low-resolution, and hard-to-read codes.
Bluetooth® and STAR Cordless System options for versatile wireless communication.
Inductive wireless charging system for maintenance-free operation.
Disinfectant-ready design for easy cleaning in healthcare settings.
Specifications
Wireless Communications
Datalogic STAR Cordless System™ and Bluetooth Wireless Technology
The Gryphon™ 4200 series represents the premium range of hand held scanners from Datalogic for general purpose applications.
Designed with people in mind, the Gryphon 4200 wireless reader stands out with an elegant and trendy design, unchallenged ergonomics and outstanding reading performance. The Gryphon I GD4200 readers' ability to capture bar codes from near to far, to read both high-density and low-resolution codes, to decode hard-to-read, poor or damaged codes and to easily read bar codes from mobile devices make these readers the perfect choice for today's and tomorrow's applications.
WIRELESS COMMUNICATIONS
Featuring Bluetooth® wireless technology (GBT models) or narrow band radio communications with Datalogic's STAR Cordless System™ (GM models), the Gryphon 4200 wireless readers provide maximum flexibility to solve any end user application with the best technical solution.
WIRELESS CHARGING
One of the most important technical innovations that the Gryphon 4200 wireless scanners achieve is the battery recharge through an inductive charging system, which enhances the reliability of the entire solution, lowering the total cost of ownership because it eliminates the need for contacts' cleaning and maintenance procedures. The maximum reliability offered by the wireless charging technology means 24/7 activities with no stops for maintenance or repair and top-level operating productivity and performance.
EASY TO USE FOR MAX EFFICIENCY
The Gryphon 4200 wireless scanners utilize Datalogic's Motionix™ to automatically switch into the 'ready-to-read' scanning mode and to activate the distinctive 'soft line viewfinder' which helps the operator to easily target the code to be read.
The Datalogic's exclusive patented 'Green Spot' for good-read feedback directly on the code is ideal under dim lighting conditions or noisy environments.
READY TO BE REGULARLY CLEANED AND DISINFECTED
Most of the working environments now have requirements that scanners need to be regularly cleaned and disinfected. The Gryphon 4200 series exploits Disinfectant-Ready enclosures, designed to withstand regular daily cleaning with harsh disinfectant solutions commonly used in a healthcare environment.
FEATURES
Enhanced linear imaging technology for superior scanning and Depth of Field
Reads 1D high-density and low-resolution codes, hard-to-read, poor or damaged codes and bar codes from mobile devices
Datalogic distinctive 'soft line viewfinder' to easily target the code to be read
Datalogic's patented 'Green Spot' technology and exclusive 3GL™ (3 Green Lights) for superior good-read feedback
Motionix motion-sensing technology for seamless reading mode transitions
Choice of Bluetooth wireless technology version 4.0 with BLE or Datalogic's STAR Cordless System (radio frequencies available in 433 MHz or 910 MHz)
Wireless battery charging system
Choice of WLC4190 sleek desk/wall cradle with USB Type C connectivity or WLC4090 adjustable position cradle with Scan-While-Charging capability
Batch Mode capability
Point-to-point / Point-to-multipoint transmission
Long lasting replaceable Lithium-Ion battery
Disinfectant-Ready enclosures withstand daily cleaning with harsh disinfectant solutions
EASEOFCARE Service Plans offer a wide range of service options to protect your investment, ensuring maximum productivity and ROI
Cable, Datalogic Gryphon 4500,RS-232, 9 Pin Female, Straight, CAB-350 (Power Supply available on pin 9 of the connector or through external power supply), 6 ft.
What is the Datalogic GBT4200-WH-BTK1 and what applications is it designed for?
The Datalogic Gryphon GBT4200 is a premium 1D linear imager barcode scanner designed for general-purpose handheld reading applications. It features motion-sensing technology that automatically switches the scanner into ready-to-read mode when picked up, and excels at capturing barcodes from near to far distances, reading high-density and low-resolution codes, and decoding poorly printed or damaged barcodes—making it ideal for warehouse, logistics, and retail environments.
Does the GBT4200-WH-BTK1 support Bluetooth connectivity and what is included in the kit?
Yes, the GBT4200-WH-BTK1 features Bluetooth wireless technology that eliminates cable constraints and enables operator mobility throughout your facility. The kit includes the cordless scanner, the WLC4190-WH-BT Bluetooth base station for charging and data transmission, and a USB cable for host connectivity.
Can the Datalogic GBT4200 read barcodes from mobile devices like iPhones and Android phones?
Yes, the Gryphon GBT4200 is specifically designed to easily read barcodes from mobile devices, making it versatile for modern applications where product information or inventory is displayed on smartphones and tablets. This capability simplifies workflows in environments where digital barcode capture is increasingly common.
What are the durability and environmental specifications of the GBT4200-WH-BTK1?
The GBT4200 is built to withstand demanding warehouse and logistics environments with IP52 particulate and water sealing, drop resistance from 1.5 meters onto concrete, and 16 kV ESD protection. It operates reliably in temperatures from 0 to 55°C and humidity levels up to 90% non-condensing, ensuring consistent performance in varied workplace conditions.
How does the motion-sensing technology in the GBT4200 improve scanning efficiency?
The Gryphon GBT4200 uses Datalogic's motion-sensing technology to detect the natural actions of the operator, automatically switching the scanner into ready-to-read scanning mode when picked up and returning to standby when placed down. This eliminates the need for manual mode switches or trigger codes, reducing operator fatigue and improving productivity during extended use.
What barcode types can the GBT4200-WH-BTK1 decode?
The Gryphon GBT4200 is a 1D linear imager that autodiscriminates all standard 1D barcode formats including UPC, Code 128, Code 39, GS1 DataBar linear codes, and postal codes. Its advanced imaging technology enables it to reliably read high-density codes, low-resolution codes, and even poorly printed or damaged barcodes that other scanners may struggle with. Contact us today to confirm specific barcode compatibility for your application.
The Datalogic GBT4200-WH-BTK1 Barcode Scanner is also known as
DTL-GBT4200WHBTK1
or GBT4200WHBTK1.
Full specifications (PDF)
