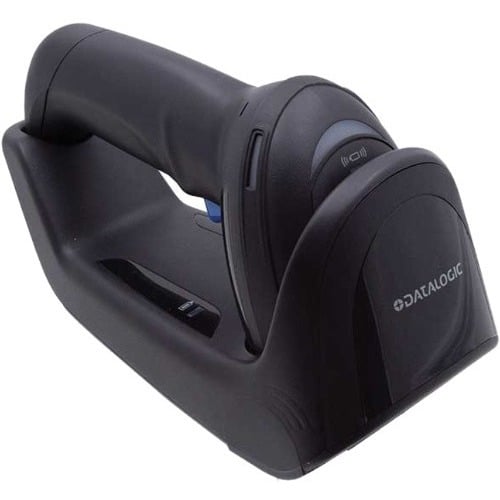

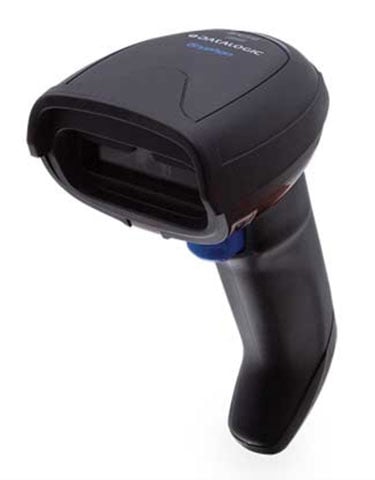

Datalogic Gryphon GBT4200 Barcode Scanner Model Overview
The Gryphon™ GBT/GM4200 from Datalogic is the ultimate premium wireless scanner designed for general-purpose applications. Its elegant and ergonomic design enhances user experience while delivering outstanding reading performance. Equipped with advanced technologies, this scanner reads a variety of barcodes, including high-density and low-resolution codes. The innovative wireless charging system ensures uninterrupted operation, while its disinfectant-ready enclosure meets the rigorous cleaning standards of today’s environments, making it perfect for retail, healthcare, and more.
Key Features
Enhanced linear imaging technology for superior scanning and depth of field.
Reads 1D high-density, low-resolution, and hard-to-read codes.
Bluetooth® and STAR Cordless System options for versatile wireless communication.
Inductive wireless charging system for maintenance-free operation.
Disinfectant-ready design for easy cleaning in healthcare settings.
Specifications
Wireless Communications
Datalogic STAR Cordless System™ and Bluetooth Wireless Technology
The Gryphon™ 4200 series represents the premium range of hand held scanners from Datalogic for general purpose applications.
Designed with people in mind, the Gryphon 4200 wireless reader stands out with an elegant and trendy design, unchallenged ergonomics and outstanding reading performance. The Gryphon I GD4200 readers' ability to capture bar codes from near to far, to read both high-density and low-resolution codes, to decode hard-to-read, poor or damaged codes and to easily read bar codes from mobile devices make these readers the perfect choice for today's and tomorrow's applications.
WIRELESS COMMUNICATIONS
Featuring Bluetooth® wireless technology (GBT models) or narrow band radio communications with Datalogic's STAR Cordless System™ (GM models), the Gryphon 4200 wireless readers provide maximum flexibility to solve any end user application with the best technical solution.
WIRELESS CHARGING
One of the most important technical innovations that the Gryphon 4200 wireless scanners achieve is the battery recharge through an inductive charging system, which enhances the reliability of the entire solution, lowering the total cost of ownership because it eliminates the need for contacts' cleaning and maintenance procedures. The maximum reliability offered by the wireless charging technology means 24/7 activities with no stops for maintenance or repair and top-level operating productivity and performance.
EASY TO USE FOR MAX EFFICIENCY
The Gryphon 4200 wireless scanners utilize Datalogic's Motionix™ to automatically switch into the 'ready-to-read' scanning mode and to activate the distinctive 'soft line viewfinder' which helps the operator to easily target the code to be read.
The Datalogic's exclusive patented 'Green Spot' for good-read feedback directly on the code is ideal under dim lighting conditions or noisy environments.
READY TO BE REGULARLY CLEANED AND DISINFECTED
Most of the working environments now have requirements that scanners need to be regularly cleaned and disinfected. The Gryphon 4200 series exploits Disinfectant-Ready enclosures, designed to withstand regular daily cleaning with harsh disinfectant solutions commonly used in a healthcare environment.
FEATURES
Enhanced linear imaging technology for superior scanning and Depth of Field
Reads 1D high-density and low-resolution codes, hard-to-read, poor or damaged codes and bar codes from mobile devices
Datalogic distinctive 'soft line viewfinder' to easily target the code to be read
Datalogic's patented 'Green Spot' technology and exclusive 3GL™ (3 Green Lights) for superior good-read feedback
Motionix motion-sensing technology for seamless reading mode transitions
Choice of Bluetooth wireless technology version 4.0 with BLE or Datalogic's STAR Cordless System (radio frequencies available in 433 MHz or 910 MHz)
Wireless battery charging system
Choice of WLC4190 sleek desk/wall cradle with USB Type C connectivity or WLC4090 adjustable position cradle with Scan-While-Charging capability
Batch Mode capability
Point-to-point / Point-to-multipoint transmission
Long lasting replaceable Lithium-Ion battery
Disinfectant-Ready enclosures withstand daily cleaning with harsh disinfectant solutions
EASEOFCARE Service Plans offer a wide range of service options to protect your investment, ensuring maximum productivity and ROI
Cable, Datalogic Gryphon 4500,RS-232, 9 Pin Female, Straight, CAB-350 (Power Supply available on pin 9 of the connector or through external power supply), 6 ft.
What wireless technology does the Datalogic GBT4200 use?
The Datalogic GBT4200 uses Bluetooth 3.0 certified wireless technology operating at 2.4 GHz with an open air radio range of 30 meters (98.4 feet). This cordless design eliminates cable constraints while maintaining reliable connectivity for warehouse and logistics environments.
What barcode types can the Gryphon GBT4200 read?
The GBT4200 autodiscriminates all standard 1D linear codes, including GS1 DataBar linear codes, stacked codes like GS1 DataBar Expanded Stacked, and postal codes including China Post. This broad decoding capability makes it ideal for general purpose applications across multiple industries.
How long does the battery last on a single charge?
The GBT4200 is equipped with a 2100 mAh Lithium-Ion battery that provides approximately 33,000 reads per charge. The battery charges in 4 hours using the included external power cradle with 12 VDC input.
Is the Datalogic GBT4200 rugged enough for warehouse environments?
Yes, the GBT4200 is designed for durability with IP52 particulate and water sealing, withstands repeated drops from 1.8 meters (5.9 feet) onto concrete, and features 16 kV ESD protection. It operates reliably in temperatures from 0 to 50°C (32 to 122°F) with 5-90% humidity tolerance.
What does the GBT4200 kit include?
The GBT4200-BK-BTK1 kit includes the cordless handheld scanner, the WLC4190-BK-BT charging cradle base, and a USB cable. This complete package is ready to deploy from Barcodes Inc with all essential components for wireless barcode scanning operations.
Can the GBT4200 read barcodes from mobile devices?
Yes, the Gryphon GBT4200 is designed to easily read barcodes from mobile devices such as iPhones, iPads, and Android phones. Combined with its ability to capture codes from near to far and decode hard-to-read or damaged codes, it provides versatile scanning for modern warehouse and logistics applications.
The Datalogic GBT4200-BK-BTK1 Barcode Scanner is also known as
DTL-GBT4200BKBTK1
or GBT4200BKBTK1.
Full specifications (PDF)
