Datalogic GBT4132-BK-BTK1 Barcode Scanner

A newer version of this item is available.
It is replaced by the Datalogic GBT4200-BK-BTK1 Barcode Scanner.

Datalogic Gryphon I GBT4100 - GRYPHON BT4132 Barcode Scanner, Linear imager, USB Interface, Color: Black. Kit includes scanner (Part# GBT4102-BK), charging base (Part# BC4032-BK-BT) & USB cable (Part# 90A052065).

Offers custom fitted for medium to high volume point-of-sale applications that require elite performance in a single plane horizontal form factor
Scan barcodes with a staggering speed of 325 scan/s
Allows productive and precise reading of 1D barcodes
Regardless of angle orientation, the imager makes it easy to scan 1D and 2D barcodes
Increases productivity by giving the opportunity to wander, without the tangle of cables
Bluetooth technology - Allows compatibility with most of your smart devices

Need a different version? See all Datalogic Gryphon I GBT4100 Barcode Scanners

Discontinued See Replacement

Add to Quote

Datalogic GBT4132-BK-BTK1 Barcode Scanner

Overview

Full specifications (PDF)

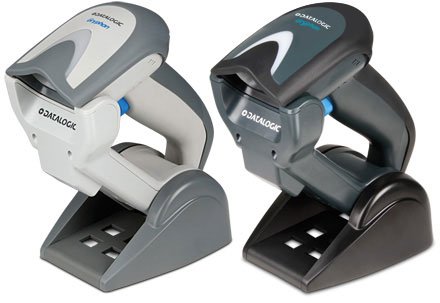

Datalogic Gryphon I GBT4100 Barcode Scanner Model Overview

The Datalogic Gryphon I GBT4100 readers eliminate the need for cables that limit operator movement and create safety concerns in the workplace. The reader can also transmit data to the host through its base station as well as to any commercial or embedded Bluetooth v2.0 compliant device. Datalogic's unique 2-position cradle provides multiple features for the user. When in the up' position, the Gryphon I GBT4100 imager can be used as a hands-free or presentation style reader. With the Scan-While-Charging feature, there is never any concern about depleted or dead batteries, ensuring constant up-time for increased productivity.

Datalogic GBT4132-BK-BTK1 Barcode Scanner Overview

UNLIMITED MOBILITY WITH BLUETOOTH® TECHNOLOGY

Featuring Bluetooth® Wireless Technology, the Gryphon GBT4100 readers eliminate the need for cables that limit operator movement and create safety concerns in the workplace. The reader can also transmit data to the host through its base station as well as to any commercial or embedded Bluetooth® v3.0 compliant device.

HANDS-FREE OR PRESENTATION SCANNING WITH THE 2-POSITION CRADLE

Datalogic's unique 2-position cradle provides multiple features for the user. When in the 'up' position, this imager can be used as a hands-free or presentation style reader. With the Scan-WhileCharging feature, there is never any concern about depleted or dead batteries, ensuring constant up-time for increased productivity.

RELIABLE DATA COLLECTION

The Gryphon GBT4100 reader's batch mode capability allows more than 1200 bar codes to be stored in the memory. Combined with a 33,000 scans per charge Lithium-Ion battery, these two features create unlimited mobility and reliable data collection when out-of-range.

Datalogic's exclusive patented 'Green Spot' for good-read feedback helps to improve productivity in noisy environments or in situations where silence is required. When using the product with the cradle at a 45° position, the Green Spot can work as an aiming system to aid in positioning the bar code for quick and intuitive reading

Detailed Specs

Full specifications (PDF)

Technical Information

Connectivity Technology:

Wireless

Scanning Capability:

Barcode Symbology Supported:

1D:

Autodiscriminates all standard 1D codes including GS1 DataBar™ linear codes.

Postal codes:

China Post

Stacked codes:

GS1 DataBar Expanded Stacked
GS1 DataBar Stacked
GS1 DataBar Stacked Omnidirectional

Image Sensor Type:

Imager

Scan Rate:

325 scan/s

Network & Communication

Bluetooth:

Yes

Interfaces/Ports

Host Interface:

USB

Physical Characteristics

Form Factor:

Handheld

Product Color:

White

Height:

3.9"

Width:

2.8"

Depth:

7.1"

Weight (Approximate):

7.94 oz

Item Numbers

UNSPSC: 43211701
