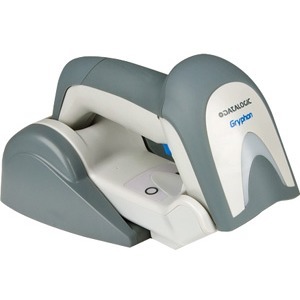

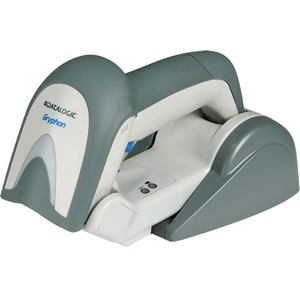

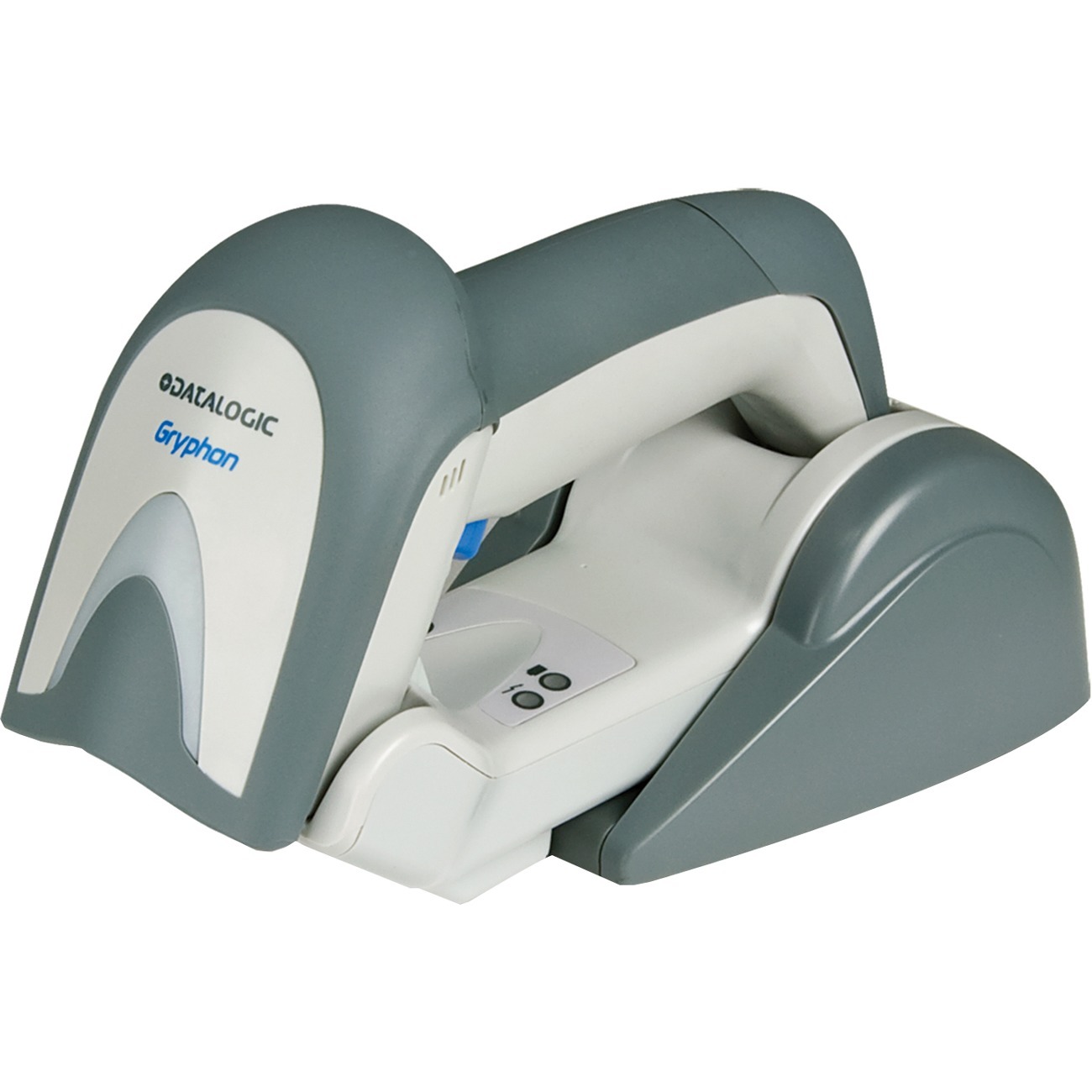

Datalogic GBT4130-WH-BTK1 Barcode Scanner

Datalogic GBT4132-WH-BTK1 Barcode Scanner A newer version of this item is available.
It is replaced by the Datalogic GBT4132-WH-BTK1 Barcode Scanner.
Datalogic Gryphon I GBT4100 - Datalogic Gryphon GBT4130 Handheld Barcode Scanner Kit - Wireless Connectivity - 325 scan/s - LED - Imager - Linear - Bluetooth - USB - White
  • Scan barcodes with a staggering speed of 325 scan/s
  • Allows productive and precise reading of 1D barcodes
  • Regardless of angle orientation, the imager makes it easy to scan 1D and 2D barcodes
  • LED aimer is a perfect choice for patient-facing applications
  • Increases productivity by giving the opportunity to wander, without the tangle of cables
  • With Bluetooth technology, you can scan barcodes and then transmit data from the base
Read More
Discontinued See Replacement
Add to Quote
Datalogic Gryphon I GBT4100 Barcode Scanner Model Overview
The Datalogic Gryphon I GBT4100 readers eliminate the need for cables that limit operator movement and create safety concerns in the workplace. The reader can also transmit data to the host through its base station as well as to any commercial or embedded Bluetooth v2.0 compliant device. Datalogic's unique 2-position cradle provides multiple features for the user. When in the up' position, the Gryphon I GBT4100 imager can be used as a hands-free or presentation style reader. With the Scan-While-Charging feature, there is never any concern about depleted or dead batteries, ensuring constant up-time for increased productivity.
Datalogic GBT4130-WH-BTK1 Barcode Scanner Overview

The Gryphon series represents the premium line of Datalogic Scanning's general purpose handheld data collection products and offers the richest feature set among the general purpose products. Featuring Bluetooth Wireless Technology, the Gryphon GBT4100 readers eliminate the need for cables that limit operator movement and create safety concerns in the workplace. The reader can also transmit data to the host through its base station as well as to any commercial or embedded Bluetooth v2.0 compliant device.

Technical Information
Connectivity Technology:
Wireless
Scanning Capability:
1D
Barcode Symbology Supported:

1D / Linear Codes:

  • Autodiscriminates All Standard 1D Codes Including GS1 DataBar Linear Codes

Postal Codes:

  • China Post

Stacked Codes:

  • GS1 DataBar Expanded Stacked
  • GS1 DataBar Stacked
  • GS1 DataBar Stacked Omnidirectional
Light Source:
LED
Image Sensor Type:
Imager
Scan Rate:
325 scan/s
Maximum Scan Resolution:
3 mil
Depth of Field:
  • 2.3" - 7"@5mil
  • 1.4" - 11.7"@7.5mil
  • 0.8" - 17.7"@10mil
  • 1.2" - 23.4"@13mil
  • 1.2"@20mil
Scan Pattern:
Linear
Network & Communication
Bluetooth:
Yes
Interfaces/Ports
Host Interface:
USB
Power Description
Power Supply Included:
Yes
Battery Information
Battery Chemistry:
Lithium Ion (Li-Ion)
Physical Characteristics
Form Factor:
Handheld
Product Color:
White
Height:
7.1"
Width:
2.8"
Depth:
3.9"
Weight (Approximate):
7.94 oz
Miscellaneous
Package Contents:
  • Gryphon 4130 Handheld Bar Code Reader
  • Base/Charger
  • Power Supply
  • Cable
Additional Information:

USB Cable separate

Environmentally Friendly:
Yes
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 5052179241710
EAN: 5052179241710
UNSPSC: 43211701
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Datalogic GBT4130-WH-BTK1 Barcode Scanner is also known as DTL-GBT4130-WH-BTK1 or GBT4130WHBTK1.
