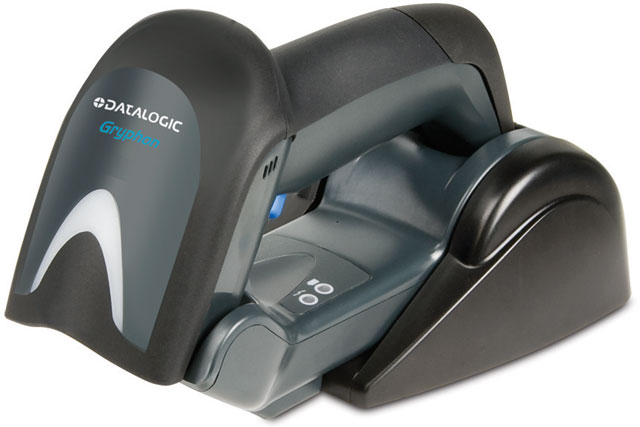

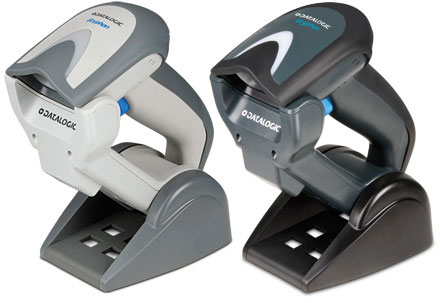

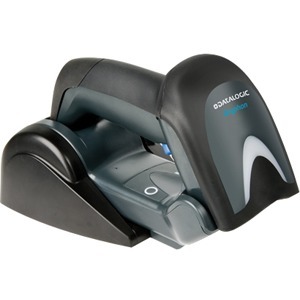

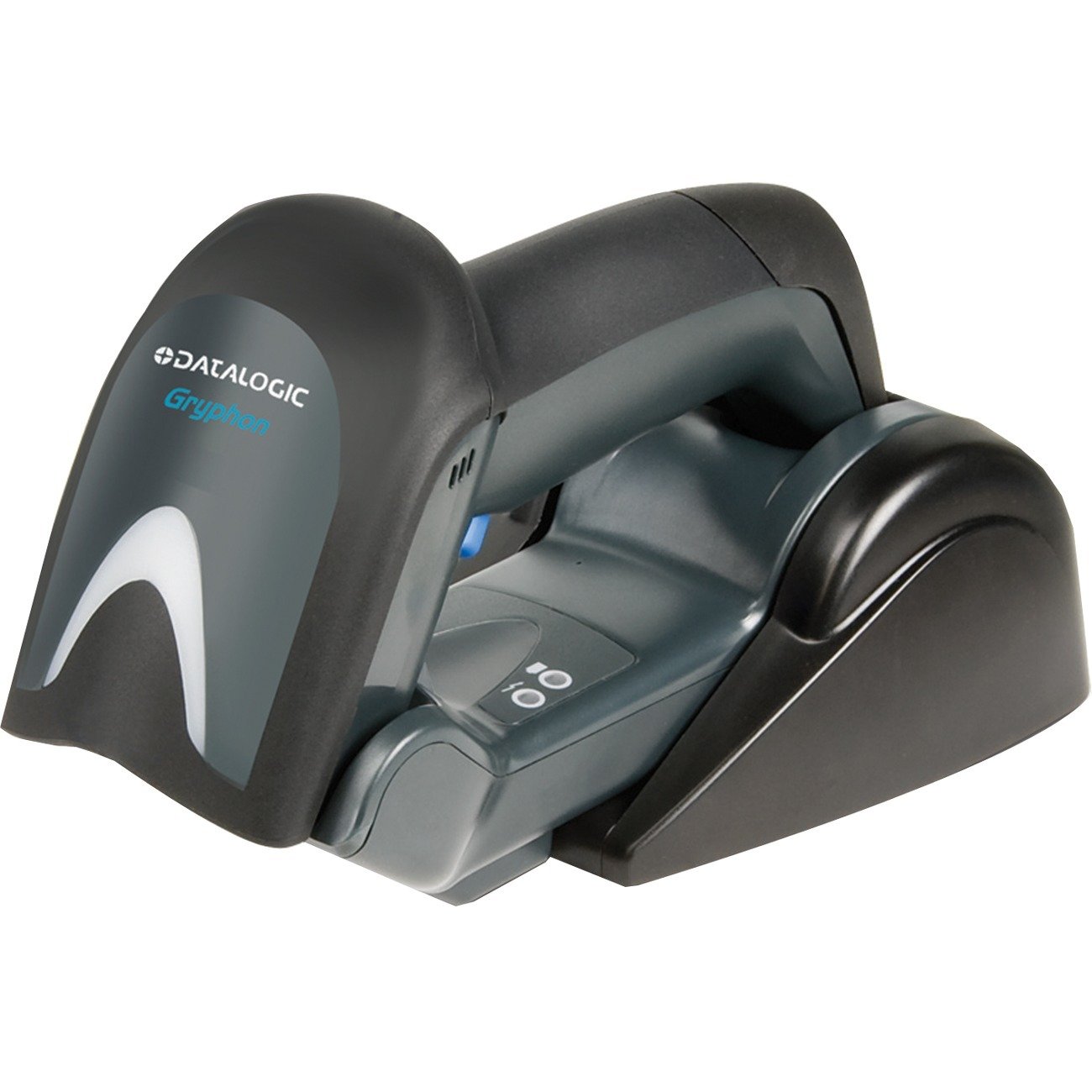

Datalogic GBT4130-BK-BTK1 Barcode Scanner

Datalogic Gryphon I GBT4100 - USB Kit, Linear Imager. Includes Base/Charger and USB cable. Color: Black.
Fast imaging speed-to-read - 325 scans/second

The Datalogic Gryphon I GBT4100 readers eliminate the need for cables that limit operator movement and create safety concerns in the workplace. The reader can also transmit data to the host through its base station as well as to any commercial or embedded Bluetooth v2.0 compliant device. Datalogic's unique 2-position cradle provides multiple features for the user. When in the up' position, the Gryphon I GBT4100 imager can be used as a hands-free or presentation style reader. With the Scan-While-Charging feature, there is never any concern about depleted or dead batteries, ensuring constant up-time for increased productivity.

Technical Information

  • Scan Pattern: Linear
  • Scan Rate: 325 scan/s
  • Connectivity Technology: Wireless
  • Light Source: LED
  • Image Sensor: Imager
  • Barcode Symbology Supported:
    • 1D / Linearcodes:
    • Autodiscriminates All Standard 1D Codes Including GS1 DataBar Linearcodes
    • Postal Codes:
    • China Post
    • Stacked Codes:
    • GS1 DataBar Expanded Stacked
    • GS1 DataBar Stacked
    • GS1 DataBar Stacked Omnidirectional
    • 1D / Linearcodes:
    • Autodiscriminates All Standard 1D Codes Including GS1 DataBar Linearcodes
    • Postal Codes:
    • China Post
    • Stacked Codes:
    • GS1 DataBar Expanded Stacked
    • GS1 DataBar Stacked
    • GS1 DataBar Stacked Omnidirectional
  • Maximum Scan Resolution: 3 mil
  • Depth of Field:
    • 2.30" - 7"@5 mil
    • 1.40" - 11.70"@7.50 mil
    • 0.80" - 17.70"@10 mil
    • 1.20" - 23.40"@13 mil
    • 1.20" - 31.20"@20 mil

General Information

  • Product Type: Handheld Barcode Scanner
  • Product Series: 4100
  • Brand Name: Datalogic
  • Manufacturer: Datalogic S.p.A
  • Product Model: 4130
  • Product Name: Gryphon 4130 Handheld Barcode Reader
  • Product Line: Gryphon

Physical Characteristics

  • Height: 7.1"
  • Width: 2.8"
  • Depth: 3.9"
  • Color: Black
  • Weight (Approximate): 7.94 oz

Interfaces/Ports

  • Host Interface: USB

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority:
    • RoHS
    • China RoHS
  • Package Contents:
    • Gryphon 4130 Handheld Barcode Reader
    • Base/Charger
    • Power Supply
    • Cable
    • Gryphon 4130 Handheld Barcode Reader
    • Base/Charger
    • Power Supply
    • Cable

Network & Communication

  • Bluetooth: Yes

Warranty

  • Limited Warranty: 3 Year

Battery Information

  • Battery Chemistry: Lithium Ion (Li-Ion)

Full specifications (PDF)

Full specifications (PDF)

Brand Datalogic
Model Gryphon I GBT4100
Scan Pattern Area
Communication Type Bluetooth, Batch
Communication Range less than 33 ft
Connectivity Cordless
Connection USB
Included Cables USB
Scanner Type Imager
Scanner Capability 1D
Form Factor Handheld
Color Black
Ruggedness General Purpose
