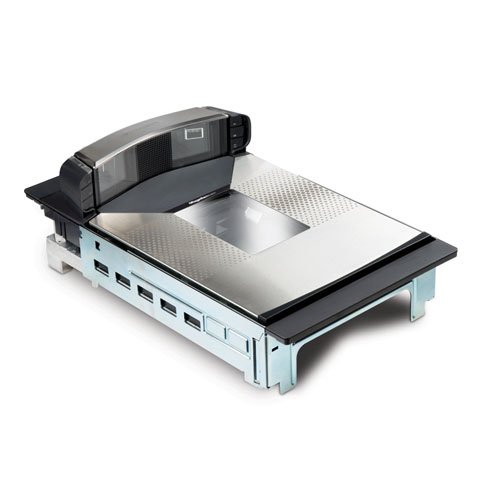

Datalogic Magellan 9800i Barcode Scanner Model Overview
The Magellan™ 9800i scanner/scale by Datalogic offers unmatched performance in barcode scanning, capable of seamlessly reading both 1D and 2D barcodes without the need for item orientation. Its ergonomic design features a low bonnet height for enhanced accessibility, ideal for diverse customer needs, including ADA compliance. The integrated customer-facing mobile device reader streamlines mobile commerce, significantly reducing transaction times. Empower your checkout experience with advanced imaging technology and loss prevention features that help minimize shrinkage, making the Magellan 9800i the ultimate choice for retailers seeking efficiency and effectiveness at the point of sale.
Key Features
Advanced digital imaging in all reading planes
Seamless reading of 1D and 2D codes

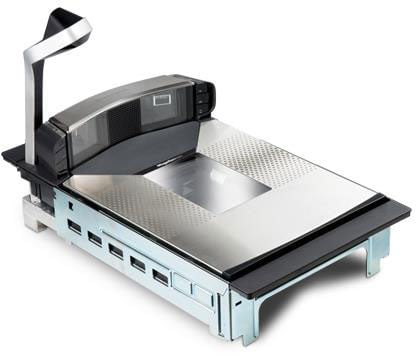

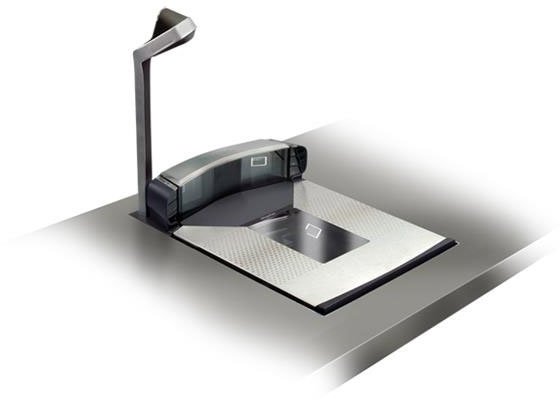

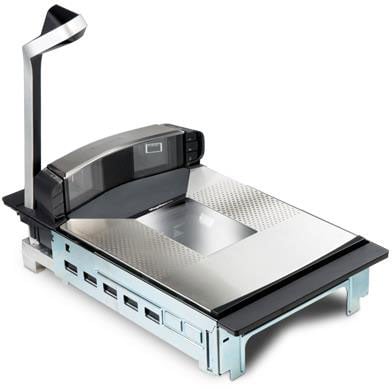

Optional Top Down Reader for enhanced field-of-view
The largest All-Weighs™ scale platter for accurate weighing
ScaleSentry™ Shrink Monitoring technology
Illumix™ Intelligent Illumination Technology
Remote Management support for easy operations
Specifications
Decoding Capability:
1D/Linear Codes
Stacked Codes
2D Codes
Digital Watermarks
Electrical:
AC Power Requirements: 100-240 VAC, 50-60 Hz
Power Consumption: 12 Watts operating / 11 Watts sleep mode
Environmental:
Operating Temperature: 10 to 40 °C / 50 to 104 °F
Humidity: 5-95% Non-Condensing
Ambient Light: 0-86,080 lux
Physical Characteristics:
Dimensions: 35.2 - 50.7 cm in length, 29.2 cm in width
Table Height: Above Counter - 6.8 cm / Below Counter - 10.6 cm
The Magellan 9800i scanner/scale defines a new class of high performance bar code scanners for a worldwide market. With digital imagers in all planes, the 9800i scanner is the first scanner capable of reading both 1D and 2D bar codes seamlessly without requiring item orientation by the cashier.
The striking new design improves ergonomics with its lower bonnet height to allow repositioning of POS or Self-Checkout touchscreens, payment terminals and receipt printers to better accommodate ADA customers. The centered speaker provides audio feedback with .wav files for greater fidelity. The large horizontal window is ergonomically positioned for both standing and seated cashiers.
ENHANCINGTHE CUSTOMER EXPERIENCE

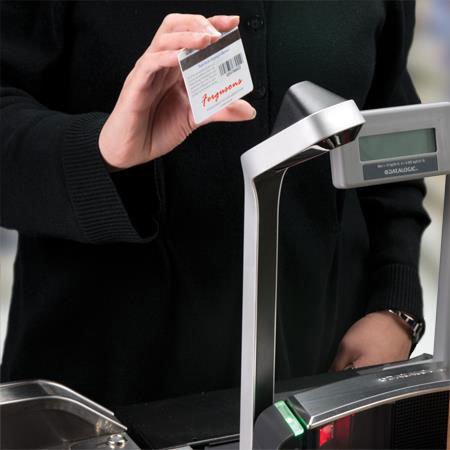

An integrated, customer-facing mobile device reader enables retailers to easily engage in mobile commerce. This eliminates the need for an additional scanner, power supply, outlet, interface cable, POS port and mounting hardware. The customer can scan bar codes from their mobile phone screen or paper coupons while the cashier continues to scan regular items in parallel, resulting in a significant reduction in total transaction time.
LOSS PREVENTION
Shrink reduction ranks high among retailers concerns and the Magellan 9800i scanner has key features designed to reduce shrink at the POS.
ENTERPRISE FEATURES
Remote Management is supported for OPOS, JavaPOS, IBM Director and Wavelink Avalanche. Additional capabilities are available with the Value Added Features included in every Magellan scanner.
Corded In-Counter Barcode Scanner, Datalogic Magellan 9800i, 2D Imager, General Purpose, Embedded Scale, USB Connection, Retail USB Cable Included, Black/Silver, Long Platter/Sapphire Glass Glass, English Scale/Display, Single Interval, TDR Tall, Power Brick Not Included
Item on backorder — chat for lead time
$2,693.64
Top Best Barcode Scanner Purchased With Datalogic 98203030721-023212
Corded In-Counter Barcode Scanner, Datalogic Magellan 9800i, 2D Imager, General Purpose, Embedded Scale, USB Connection, Retail USB Cable Included, Black/Silver, Long Platter/Sapphire Glass Glass, English Scale/Display, Single Interval, TDR Tall, Power Brick Not Included
Item on backorder — chat for lead time
$2,693.64
Top Cables, Connectors, and Adapters Purchased With Datalogic 98203030721-023212
Corded In-Counter Barcode Scanner, Datalogic Magellan 9800i, 2D Imager, General Purpose, Embedded Scale, USB Connection, Retail USB Cable Included, Black/Silver, Long Platter/Sapphire Glass Glass, English Scale/Display, Single Interval, TDR Tall, Power Brick Not Included
Item on backorder — chat for lead time
$2,693.64
Top Grocery Barcode Scanner Purchased With Datalogic 98203030721-023212
Corded In-Counter Barcode Scanner, Datalogic Magellan 9800i, 2D Imager, General Purpose, Embedded Scale, USB Connection, Retail USB Cable Included, Black/Silver, Long Platter/Sapphire Glass Glass, English Scale/Display, Single Interval, TDR Tall, Power Brick Not Included
Item on backorder — chat for lead time
$2,693.64
Top Imager Barcode Scanner Purchased With Datalogic 98203030721-023212
Corded In-Counter Barcode Scanner, Datalogic Magellan 9800i, 2D Imager, General Purpose, Embedded Scale, USB Connection, Retail USB Cable Included, Black/Silver, Long Platter/Sapphire Glass Glass, English Scale/Display, Single Interval, TDR Tall, Power Brick Not Included
Item on backorder — chat for lead time
$2,693.64
Top In-counter Barcode Scanner Purchased With Datalogic 98203030721-023212
Corded In-Counter Barcode Scanner, Datalogic Magellan 9800i, 2D Imager, General Purpose, Embedded Scale, USB Connection, Retail USB Cable Included, Black/Silver, Long Platter/Sapphire Glass Glass, English Scale/Display, Single Interval, TDR Tall, Power Brick Not Included
Item on backorder — chat for lead time
$2,693.64
Top Miscellaneous Purchased With Datalogic 98203030721-023212
Corded In-Counter Barcode Scanner, Datalogic Magellan 9800i, 2D Imager, General Purpose, Embedded Scale, USB Connection, Retail USB Cable Included, Black/Silver, Long Platter/Sapphire Glass Glass, English Scale/Display, Single Interval, TDR Tall, Power Brick Not Included
Item on backorder — chat for lead time
$2,693.64
Top Scale Accessories Purchased With Datalogic 98203030721-023212
What barcode types can the Datalogic Magellan 9800i read?
The Magellan 9800i is engineered to read both 1D and 2D barcodes seamlessly without requiring item orientation. It decodes all standard 1D codes including GS1 DataBar linear codes, stacked codes like PDF417 and MicroPDF417, and 2D codes including QR Code, Data Matrix, and Aztec Code. The scanner also supports optional Digimarc digital watermark reading for enhanced loss prevention capabilities.
Is the Magellan 9800i suitable for self-checkout and mobile payment scanning?
Yes, the Magellan 9800i is specifically designed for high-performance checkout environments and includes an integrated, customer-facing mobile device reader that enables seamless mobile commerce. This eliminates the need for additional hardware like separate scanners or power supplies, allowing customers to scan barcodes from their mobile phone screens or paper coupons while cashiers continue scanning regular items in parallel, significantly reducing transaction time.
What ergonomic features does the Magellan 9800i offer for cashiers?
The Magellan 9800i features a striking design with a lower bonnet height that allows better repositioning of POS touchscreens, payment terminals, and receipt printers to accommodate ADA customers. The large horizontal window is ergonomically positioned for both standing and seated cashiers, and the centered speaker provides audio feedback with .wav files for enhanced user experience and operational clarity.
How does the Magellan 9800i help reduce shrink and loss at the point of sale?
The Magellan 9800i incorporates key loss prevention features designed to reduce shrink at the POS, including high-performance digital imaging across all planes that ensures accurate barcode reading and reduces scanning errors. The scanner's advanced imaging capability and optional Digimarc digital watermark support provide retailers with additional tools to combat product loss and improve inventory accuracy at checkout.
What makes the Magellan 9800i different from previous barcode scanner models?
The Magellan 9800i is the world's first barcode scanner driven completely by high-performance digital imaging, enabling it to read both 1D and 2D codes without item orientation requirements. This represents a significant advancement over traditional laser-based scanners, offering increased checkout performance in the world's busiest retail environments with superior reliability and throughput.
Can I purchase the Datalogic Magellan 9800i scanner from Barcodes Inc?
Yes, we offer the Datalogic Magellan 9800i scanner/scale as part of our comprehensive AIDC product lineup. The model available from us includes the 03 Standard Metric with Display configuration, Long LLT Platter with Fixed Produce Rail, Flange Mount, and US Power Supply with Serial Standard 2 Cable. Contact us today to discuss your specific checkout or self-checkout requirements and get a quote for this high-performance imaging scanner.
The Datalogic 98203030721-023212 Barcode Scanner is also known as
98203030721023212
Full specifications (PDF)
