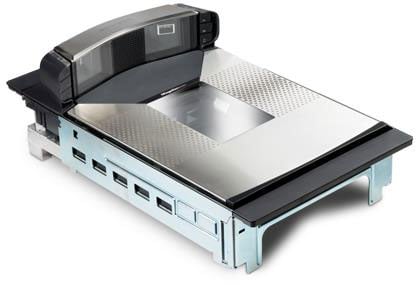

Datalogic Magellan 9800i Barcode Scanner Model Overview

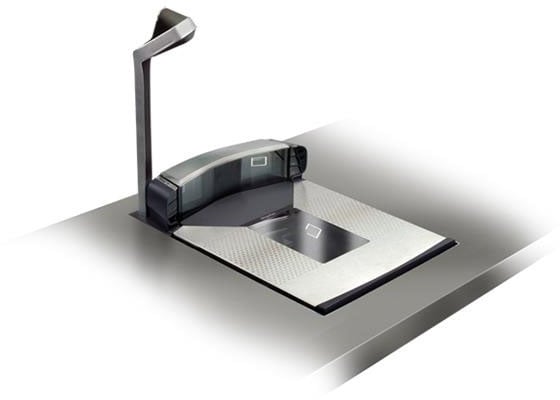

The Magellan™ 9800i scanner/scale by Datalogic offers unmatched performance in barcode scanning, capable of seamlessly reading both 1D and 2D barcodes without the need for item orientation. Its ergonomic design features a low bonnet height for enhanced accessibility, ideal for diverse customer needs, including ADA compliance. The integrated customer-facing mobile device reader streamlines mobile commerce, significantly reducing transaction times. Empower your checkout experience with advanced imaging technology and loss prevention features that help minimize shrinkage, making the Magellan 9800i the ultimate choice for retailers seeking efficiency and effectiveness at the point of sale.
Key Features
Advanced digital imaging in all reading planes
Seamless reading of 1D and 2D codes
Optional Top Down Reader for enhanced field-of-view
The largest All-Weighs™ scale platter for accurate weighing
ScaleSentry™ Shrink Monitoring technology
Illumix™ Intelligent Illumination Technology
Remote Management support for easy operations
Specifications
Decoding Capability:
1D/Linear Codes
Stacked Codes
2D Codes
Digital Watermarks
Electrical:
AC Power Requirements: 100-240 VAC, 50-60 Hz
Power Consumption: 12 Watts operating / 11 Watts sleep mode
Environmental:
Operating Temperature: 10 to 40 °C / 50 to 104 °F
Humidity: 5-95% Non-Condensing
Ambient Light: 0-86,080 lux
Physical Characteristics:
Dimensions: 35.2 - 50.7 cm in length, 29.2 cm in width
Table Height: Above Counter - 6.8 cm / Below Counter - 10.6 cm
Datalogic, the global leader in high volume retail checkout scanning, has created the next generation scanner for high volume checkouts. The new Magellan 9800i scanner is the world's first bar code scanner driven completely by high performance digital imaging, resulting in the ability to increase checkout performance in the world's busiest checkout environments.

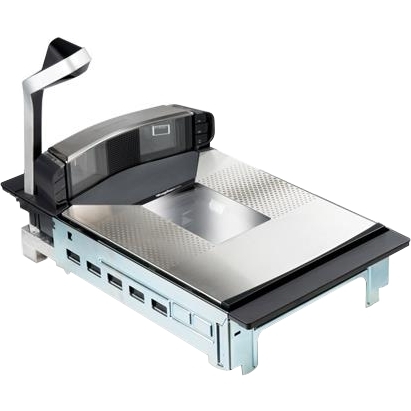

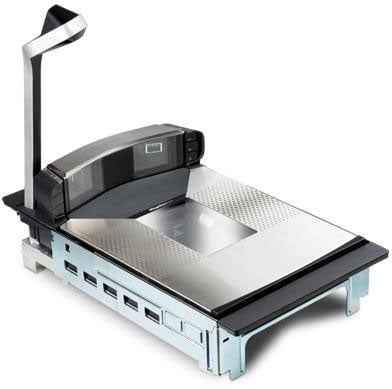

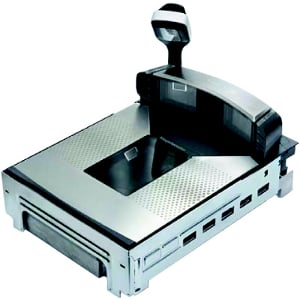

Corded In-Counter Barcode Scanner, Datalogic Magellan 9800i, 2D Imager, General Purpose, Embedded Scale, USB Connection, Retail USB Cable Included, Black/Silver, Long Platter/Sapphire Glass Glass, English Scale/Display, Single Interval, TDR Tall, Power Brick Not Included
Item on backorder — chat for lead time
$2,693.64
Top Best Barcode Scanner Purchased With Datalogic 98201030120-014054
Corded In-Counter Barcode Scanner, Datalogic Magellan 9800i, 2D Imager, General Purpose, Embedded Scale, USB Connection, Retail USB Cable Included, Black/Silver, Long Platter/Sapphire Glass Glass, English Scale/Display, Single Interval, TDR Tall, Power Brick Not Included
Item on backorder — chat for lead time
$2,693.64
Top Cables, Connectors, and Adapters Purchased With Datalogic 98201030120-014054
Corded In-Counter Barcode Scanner, Datalogic Magellan 9800i, 2D Imager, General Purpose, Embedded Scale, USB Connection, Retail USB Cable Included, Black/Silver, Long Platter/Sapphire Glass Glass, English Scale/Display, Single Interval, TDR Tall, Power Brick Not Included
Item on backorder — chat for lead time
$2,693.64
Top Grocery Barcode Scanner Purchased With Datalogic 98201030120-014054
Corded In-Counter Barcode Scanner, Datalogic Magellan 9800i, 2D Imager, General Purpose, Embedded Scale, USB Connection, Retail USB Cable Included, Black/Silver, Long Platter/Sapphire Glass Glass, English Scale/Display, Single Interval, TDR Tall, Power Brick Not Included
Item on backorder — chat for lead time
$2,693.64
Top Imager Barcode Scanner Purchased With Datalogic 98201030120-014054
Corded In-Counter Barcode Scanner, Datalogic Magellan 9800i, 2D Imager, General Purpose, Embedded Scale, USB Connection, Retail USB Cable Included, Black/Silver, Long Platter/Sapphire Glass Glass, English Scale/Display, Single Interval, TDR Tall, Power Brick Not Included
Item on backorder — chat for lead time
$2,693.64
Top In-counter Barcode Scanner Purchased With Datalogic 98201030120-014054
Corded In-Counter Barcode Scanner, Datalogic Magellan 9800i, 2D Imager, General Purpose, Embedded Scale, USB Connection, Retail USB Cable Included, Black/Silver, Long Platter/Sapphire Glass Glass, English Scale/Display, Single Interval, TDR Tall, Power Brick Not Included
Item on backorder — chat for lead time
$2,693.64
Top Miscellaneous Purchased With Datalogic 98201030120-014054
Corded In-Counter Barcode Scanner, Datalogic Magellan 9800i, 2D Imager, General Purpose, Embedded Scale, USB Connection, Retail USB Cable Included, Black/Silver, Long Platter/Sapphire Glass Glass, English Scale/Display, Single Interval, TDR Tall, Power Brick Not Included
Item on backorder — chat for lead time
$2,693.64
Top Scale Accessories Purchased With Datalogic 98201030120-014054
What barcode types does the Datalogic Magellan 9800i scanner read?
The Magellan 9800i is a high-performance 2D imager that reads both 1D and 2D barcodes. It autodiscriminates all standard 1D codes including GS1 DataBar linear codes, and decodes 2D formats such as Aztec Code, Data Matrix, QR Code, and Micro QR. The scanner also handles stacked codes including EAN/JAN Composites, GS1 DataBar Composites, PDF417, and MicroPDF417, making it ideal for retail environments that require versatile barcode scanning capabilities.
Is the Datalogic Magellan 9800i suitable for high-volume retail checkout?
Yes, the Magellan 9800i is specifically designed as the world's first barcode scanner driven completely by high-performance digital imaging, engineered to increase checkout performance in the world's busiest checkout environments. Its state-of-the-art imaging technology and embedded scale provide maximum throughput for both 1D and 2D barcodes, making it an excellent choice for high-traffic retail and grocery checkout lanes. We offer this scanner as part of our comprehensive retail scanning solutions available from barcodesinc.com.
What connectivity options does the Magellan 9800i provide?
The Magellan 9800i features multiple interface options including USB, RS-232, and IBM 46XX compatibility. It includes powered USB Host ports (Type A x2), powered RS-232 connections, and supports multi-interface configurations for both scanner and scale connectivity via single or dual cables. The scanner comes with a retail USB cable included, and its flexible interface support enables seamless integration with various POS and ERP management systems.
What are the environmental operating conditions for the Magellan 9800i?
The Magellan 9800i operates reliably in demanding retail environments with an operating temperature range of 10 to 40°C (50 to 104°F) and humidity tolerance of 5-95% non-condensing. It provides 25kV ESD protection and operates effectively under ambient light conditions up to 86,080 lux, ensuring consistent performance in bright retail checkout areas. Storage and transport conditions range from -40 to 70°C (-40 to 158°F), providing flexibility for warehouse and logistics applications.
Does the Magellan 9800i include a built-in scale?
Yes, the Magellan 9800i features an integrated embedded scale with an all-weighs scale platter that increases active weighing capability. The scanner/scale combination supports both single and dual interval scale configurations, and includes remote scale display capabilities for flexible checkout station layouts. This integrated design reduces the number of devices needed at the point of sale while maintaining high reliability and accuracy.
What remote management and diagnostic capabilities does the Magellan 9800i offer?
The Magellan 9800i supports comprehensive remote management through diagnostic reporting, WMI (OPOS and JavaPOS) compliance, and MBeans support for JavaPOS environments. It is compatible with IBM Director, Wavelink Avalanche, and other ERP management solutions, enabling centralized host download and configuration. These capabilities allow IT teams to efficiently manage and monitor scanner performance across multiple checkout lanes from a central location.
The Datalogic 98201030120-014054 Barcode Scanner is also known as
DTL-9820103012001405
or 98201030120014054.
Full specifications (PDF)
