Full specifications (PDF)
Connectivity Technology:
Cable

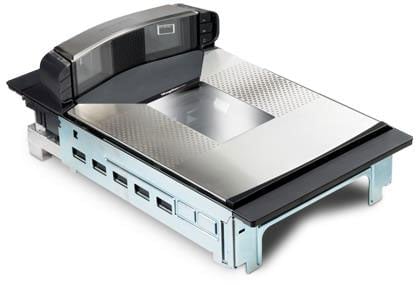

Datalogic Magellan 9800i – Barcode Scanner – Corded – 1D, 2D – Scanner Only
Part Number:
98202030121-004231
Model:
Magellan 9800i
Datalogic Magellan 9800i Barcode Scanner Model Overview
The Magellan™ 9800i scanner/scale by Datalogic offers unmatched performance in barcode scanning, capable of seamlessly reading both 1D and 2D barcodes without the need for item orientation. Its ergonomic design features a low bonnet height for enhanced accessibility, ideal for diverse customer needs, including ADA compliance. The integrated customer-facing mobile device reader streamlines mobile commerce, significantly reducing transaction times. Empower your checkout experience with advanced imaging technology and loss prevention features that help minimize shrinkage, making the Magellan 9800i the ultimate choice for retailers seeking efficiency and effectiveness at the point of sale.
Key Features
- Advanced digital imaging in all reading planes
- Seamless reading of 1D and 2D codes
- Optional Top Down Reader for enhanced field-of-view
- The largest All-Weighs™ scale platter for accurate weighing
- ScaleSentry™ Shrink Monitoring technology
- Illumix™ Intelligent Illumination Technology
- Remote Management support for easy operations
Specifications
- Decoding Capability:
- 1D/Linear Codes
- Stacked Codes
- 2D Codes
- Digital Watermarks
- Electrical:
- AC Power Requirements: 100-240 VAC, 50-60 Hz
- Power Consumption: 12 Watts operating / 11 Watts sleep mode
- Environmental:
- Operating Temperature: 10 to 40 °C / 50 to 104 °F
- Humidity: 5-95% Non-Condensing
- Ambient Light: 0-86,080 lux
- Physical Characteristics:
- Dimensions: 35.2 - 50.7 cm in length, 29.2 cm in width
- Table Height: Above Counter - 6.8 cm / Below Counter - 10.6 cm
- Warranty:
- 1-Year Factory Warranty
Datalogic 98202030121-004231 Barcode Scanner Overview
Datalogic, the global leader in high volume retail checkout scanning, has created the next generation scanner for high volume checkouts. The new Magellan 9800i scanner is the world's first bar code scanner driven completely by high performance digital imaging, resulting in the ability to increase checkout performance in the world's busiest checkout environments.
The Magellan 9800i scanner offers a state-of-the-art family of imaging scanners and scanner/scales with high reliability designed to provide maximum throughput for both 1D and 2D bar codes.

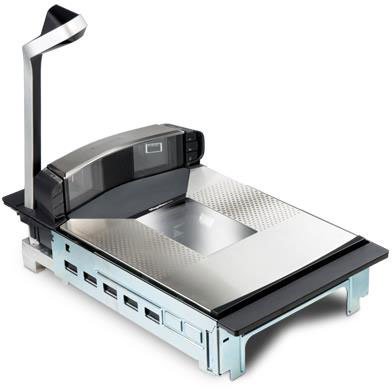

With a new and unique optional feature, the Top Down Reader offers seamless scanning of top-marked items. The Magellan 9800i scanner also enables a new way to interact with shoppers: a customer-facing imager allows shoppers to quickly and easily self-scan digital coupons from mobile devices, paper-based coupons and loyalty cards.
Technical Information
Interfaces/Ports
Host Interface:
- USB
- Serial
Physical Characteristics
Form Factor:
In-counter
Product Color:
- Black
- Silver
Height:
2.7"
Width:
11.5"
Depth:
4"
Length:
20"
Miscellaneous
Additional Information:
USB Cable separate
Environmentally Friendly:
Yes
Country of Origin:
Vietnam
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN:
0014881382278, 0721762189849, 0739197209155
UPC:
014881382278, 721762189849, 739197209155
EAN:
0014881382278, 0721762189849, 0739197209155
UNSPSC:
43211701
