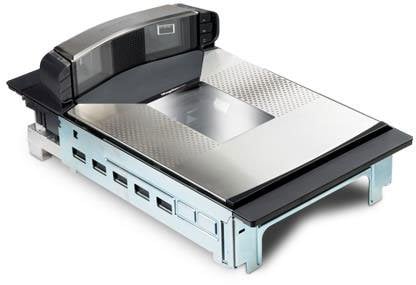

Datalogic Magellan 9800i Barcode Scanner Model Overview
The Magellan™ 9800i scanner/scale by Datalogic offers unmatched performance in barcode scanning, capable of seamlessly reading both 1D and 2D barcodes without the need for item orientation. Its ergonomic design features a low bonnet height for enhanced accessibility, ideal for diverse customer needs, including ADA compliance. The integrated customer-facing mobile device reader streamlines mobile commerce, significantly reducing transaction times. Empower your checkout experience with advanced imaging technology and loss prevention features that help minimize shrinkage, making the Magellan 9800i the ultimate choice for retailers seeking efficiency and effectiveness at the point of sale.
Key Features
Advanced digital imaging in all reading planes
Seamless reading of 1D and 2D codes

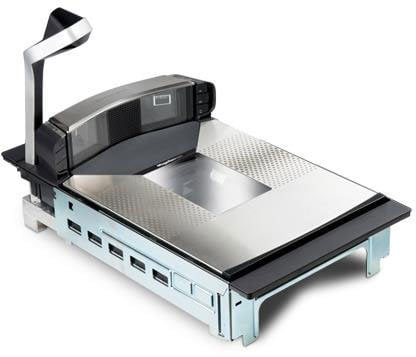

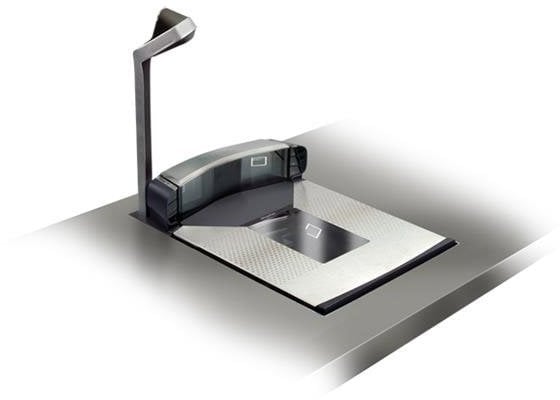

Optional Top Down Reader for enhanced field-of-view
The largest All-Weighs™ scale platter for accurate weighing
ScaleSentry™ Shrink Monitoring technology
Illumix™ Intelligent Illumination Technology
Remote Management support for easy operations
Specifications
Decoding Capability:
1D/Linear Codes
Stacked Codes
2D Codes
Digital Watermarks
Electrical:
AC Power Requirements: 100-240 VAC, 50-60 Hz
Power Consumption: 12 Watts operating / 11 Watts sleep mode
Environmental:
Operating Temperature: 10 to 40 °C / 50 to 104 °F
Humidity: 5-95% Non-Condensing
Ambient Light: 0-86,080 lux
Physical Characteristics:
Dimensions: 35.2 - 50.7 cm in length, 29.2 cm in width
Table Height: Above Counter - 6.8 cm / Below Counter - 10.6 cm
The Magellan 9800i scanner/scale defines a new class of high performance bar code scanners for a worldwide market. With digital imagers in all planes, the 9800i scanner is the first scanner capable of reading both 1D and 2D bar codes seamlessly without requiring item orientation by the cashier.
The striking new design improves ergonomics with its lower bonnet height to allow repositioning of POS or Self-Checkout touchscreens, payment terminals and receipt printers to better accommodate ADA customers. The centered speaker provides audio feedback with .wav files for greater fidelity. The large horizontal window is ergonomically positioned for both standing and seated cashiers.
ENHANCING THE CUSTOMER EXPERIENCE
An integrated, customer-facing mobile device reader enables retailers to easily engage in mobile commerce. This eliminates the need for an additional scanner, power supply, outlet, interface cable, POS port and mounting hardware. The customer can scan bar codes from their mobile phone screen or paper coupons while the cashier continues to scan regular items in parallel, resulting in a significant reduction in total transaction time.
LOSS PREVENTION
Shrink reduction ranks high among retailers' concerns and the Magellan 9800i scanner has key features designed to reduce shrink at the POS.
ENTERPRISE FEATURES
Remote Management is supported for OPOS, JavaPOS, IBM Director and Wavelink Avalanche. Additional capabilities are available with the Value Added Features included in every Magellan scanner.
Corded In-Counter Barcode Scanner, Datalogic Magellan 9800i, 2D Imager, General Purpose, Embedded Scale, USB Connection, Retail USB Cable Included, Black/Silver, Long Platter/Sapphire Glass Glass, English Scale/Display, Single Interval, TDR Tall, Power Brick Not Included
Item on backorder — chat for lead time
$2,693.64
Top Best Barcode Scanner Purchased With Datalogic 98201030121-013253
Corded In-Counter Barcode Scanner, Datalogic Magellan 9800i, 2D Imager, General Purpose, Embedded Scale, USB Connection, Retail USB Cable Included, Black/Silver, Long Platter/Sapphire Glass Glass, English Scale/Display, Single Interval, TDR Tall, Power Brick Not Included
Item on backorder — chat for lead time
$2,693.64
Top Cables, Connectors, and Adapters Purchased With Datalogic 98201030121-013253
Corded In-Counter Barcode Scanner, Datalogic Magellan 9800i, 2D Imager, General Purpose, Embedded Scale, USB Connection, Retail USB Cable Included, Black/Silver, Long Platter/Sapphire Glass Glass, English Scale/Display, Single Interval, TDR Tall, Power Brick Not Included
Item on backorder — chat for lead time
$2,693.64
Top Grocery Barcode Scanner Purchased With Datalogic 98201030121-013253
Corded In-Counter Barcode Scanner, Datalogic Magellan 9800i, 2D Imager, General Purpose, Embedded Scale, USB Connection, Retail USB Cable Included, Black/Silver, Long Platter/Sapphire Glass Glass, English Scale/Display, Single Interval, TDR Tall, Power Brick Not Included
Item on backorder — chat for lead time
$2,693.64
Top Imager Barcode Scanner Purchased With Datalogic 98201030121-013253
Corded In-Counter Barcode Scanner, Datalogic Magellan 9800i, 2D Imager, General Purpose, Embedded Scale, USB Connection, Retail USB Cable Included, Black/Silver, Long Platter/Sapphire Glass Glass, English Scale/Display, Single Interval, TDR Tall, Power Brick Not Included
Item on backorder — chat for lead time
$2,693.64
Top In-counter Barcode Scanner Purchased With Datalogic 98201030121-013253
Corded In-Counter Barcode Scanner, Datalogic Magellan 9800i, 2D Imager, General Purpose, Embedded Scale, USB Connection, Retail USB Cable Included, Black/Silver, Long Platter/Sapphire Glass Glass, English Scale/Display, Single Interval, TDR Tall, Power Brick Not Included
Item on backorder — chat for lead time
$2,693.64
Top Miscellaneous Purchased With Datalogic 98201030121-013253
Corded In-Counter Barcode Scanner, Datalogic Magellan 9800i, 2D Imager, General Purpose, Embedded Scale, USB Connection, Retail USB Cable Included, Black/Silver, Long Platter/Sapphire Glass Glass, English Scale/Display, Single Interval, TDR Tall, Power Brick Not Included
Item on backorder — chat for lead time
$2,693.64
Top Scale Accessories Purchased With Datalogic 98201030121-013253
What barcode types does the Datalogic Magellan 9800i scanner read?
The Magellan 9800i is a high-performance imaging scanner that reads both 1D and 2D barcode formats. It autodiscriminates all standard 1D codes including GS1 DataBar linear codes, and supports 2D codes such as Aztec Code, Data Matrix, QR Code, and Micro QR, as well as stacked codes like PDF417 and GS1 DataBar Composites. This versatility makes it ideal for modern retail and logistics environments handling diverse barcode formats.
Is the Datalogic 98201030121-013253 suitable for high-volume checkout environments?
Yes, the Magellan 9800i is specifically designed as the world's first barcode scanner driven completely by high-performance digital imaging, engineered to increase checkout performance in the world's busiest checkout environments. The scanner/scale combination delivers maximum throughput for both 1D and 2D barcodes with state-of-the-art reliability, making it an excellent choice for high-volume retail operations. Contact us today to learn how this scanner can optimize your checkout performance.
What connectivity options and interfaces does this Datalogic scanner offer?
The Magellan 9800i provides multiple interface options including RS-232, IBM 46XX, USB multi-interface, and powered USB host ports (Type A x2). It also features auxiliary ports for remote scale display, EAS controller connectivity, and supports remote management capabilities including diagnostic reporting and WMI (OPOS and JavaPOS) compliance. These flexible connectivity options allow seamless integration with various POS systems and enterprise resource planning solutions.
What are the environmental operating specifications for the Magellan 9800i?
The Magellan 9800i operates reliably in ambient light conditions from 0-86,080 lux and maintains functionality across operating temperatures of 10-40°C (50-104°F) with humidity levels of 5-95% non-condensing. The scanner features 25kV ESD protection (air discharge) and can be stored or transported in temperatures ranging from -40 to 70°C (-40 to 158°F), ensuring durability across diverse retail and warehouse environments.
Does the Magellan 9800i include integrated weighing capabilities?
Yes, this model is a scanner/scale combination featuring Magellan scale technology with an all-weighs scale platter that integrates both horizontal and vertical weighing surfaces. The integrated scale increases active weighing capability and can be configured as either a single interval or dual interval scale, providing retailers with combined scanning and weighing functionality in a single checkout device. Visit barcodesinc.com to explore our complete scanner/scale solutions.
What loss prevention and security features does the Datalogic Magellan 9800i provide?
The Magellan 9800i includes integrated EAS (Electronic Article Surveillance) capabilities and supports multiple loss prevention systems including Checkpoint Systems (compatible with Counterpoint IV, V, VI, and VII models) and Sensormatic integration with SmartSentry firmware. The scanner features good read acknowledgement and an integrated EAS antenna in both vertical and horizontal planes, helping retailers prevent shrinkage while maintaining fast checkout speeds. We offer this scanner with comprehensive loss prevention integration available from our team.
The Datalogic 98201030121-013253 Barcode Scanner is also known as
98201030121013253
Full specifications (PDF)
