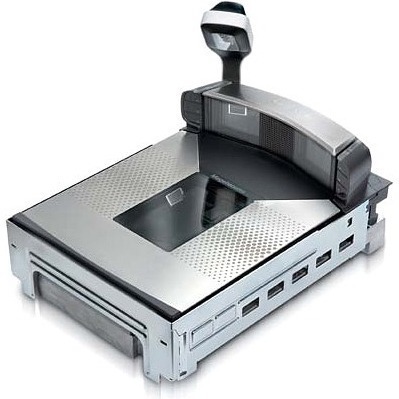

Datalogic Magellan 9800i Barcode Scanner Model Overview
The Magellan™ 9800i scanner/scale by Datalogic offers unmatched performance in barcode scanning, capable of seamlessly reading both 1D and 2D barcodes without the need for item orientation. Its ergonomic design features a low bonnet height for enhanced accessibility, ideal for diverse customer needs, including ADA compliance. The integrated customer-facing mobile device reader streamlines mobile commerce, significantly reducing transaction times. Empower your checkout experience with advanced imaging technology and loss prevention features that help minimize shrinkage, making the Magellan 9800i the ultimate choice for retailers seeking efficiency and effectiveness at the point of sale.
Key Features
Advanced digital imaging in all reading planes
Seamless reading of 1D and 2D codes

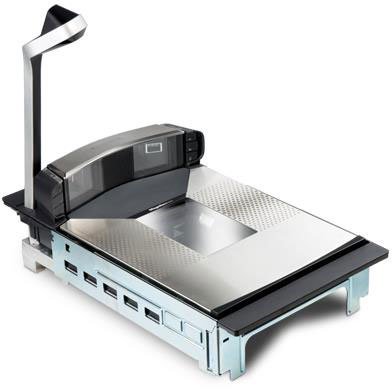

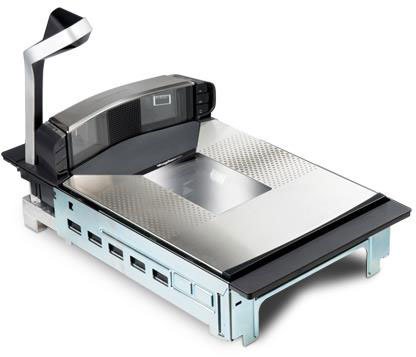

Optional Top Down Reader for enhanced field-of-view
The largest All-Weighs™ scale platter for accurate weighing
ScaleSentry™ Shrink Monitoring technology
Illumix™ Intelligent Illumination Technology
Remote Management support for easy operations
Specifications
Decoding Capability:
1D/Linear Codes
Stacked Codes
2D Codes
Digital Watermarks
Electrical:
AC Power Requirements: 100-240 VAC, 50-60 Hz
Power Consumption: 12 Watts operating / 11 Watts sleep mode
Environmental:
Operating Temperature: 10 to 40 °C / 50 to 104 °F
Humidity: 5-95% Non-Condensing
Ambient Light: 0-86,080 lux
Physical Characteristics:
Dimensions: 35.2 - 50.7 cm in length, 29.2 cm in width

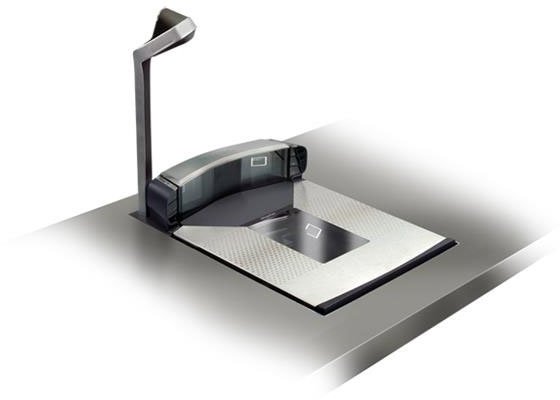

Table Height: Above Counter - 6.8 cm / Below Counter - 10.6 cm

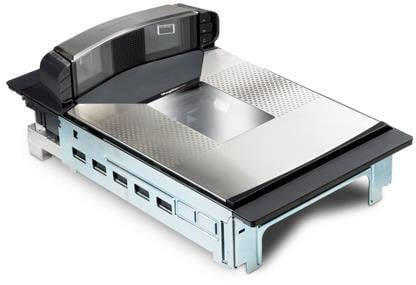

The Magellan™ 9800i scanner/scale defines a new class of high performance bar code scanners for a worldwide market. With digital imagers in all planes, the 9800i scanner is the first scanner capable of reading both 1D and 2D bar codes seamlessly without requiring item orientation by the cashier.
The striking new design improves ergonomics with its lower bonnet height to allow repositioning of POS or Self-Checkout touchscreens, payment terminals and receipt printers to better accommodate ADA customers. The centered speaker provides audio feedback with .wav files for greater fidelity. The large horizontal window is ergonomically positioned for both standing and seated cashiers.
ENHANCING THE CUSTOMER EXPERIENCE

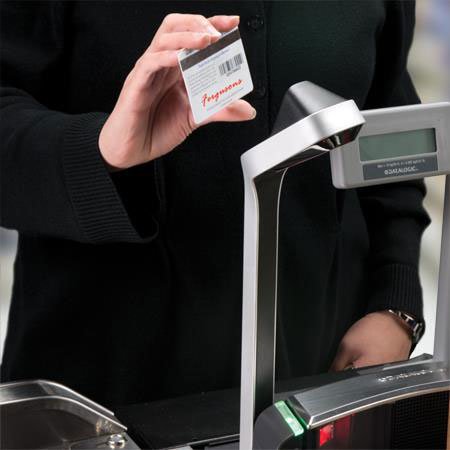

An integrated, customer-facing mobile device reader enables retailers to easily engage in mobile commerce. This eliminates the need for an additional scanner, power supply, outlet, interface cable, POS port and mounting hardware. The customer can scan bar codes from their mobile phone screen or paper coupons while the cashier continues to scan regular items in parallel, resulting in a significant reduction in total transaction time.
LOSS PREVENTION
Shrink reduction ranks high among retailers' concerns and the Magellan 9800i scanner has key features designed to reduce shrink at the POS.
ENTERPRISE FEATURES
Remote Management is supported for OPOS, JavaPOS, IBM™ Director and Wavelink™ Avalanche. Additional capabilities are available with the Value Added Features included in every Magellan scanner.
Corded In-Counter Barcode Scanner, Datalogic Magellan 9800i, 2D Imager, General Purpose, Embedded Scale, USB Connection, Retail USB Cable Included, Black/Silver, Long Platter/Sapphire Glass Glass, English Scale/Display, Single Interval, TDR Tall, Power Brick Not Included
Item on backorder — chat for lead time
$2,693.64
Top Best Barcode Scanner Purchased With Datalogic 98201010121-014212
Corded In-Counter Barcode Scanner, Datalogic Magellan 9800i, 2D Imager, General Purpose, Embedded Scale, USB Connection, Retail USB Cable Included, Black/Silver, Long Platter/Sapphire Glass Glass, English Scale/Display, Single Interval, TDR Tall, Power Brick Not Included
Item on backorder — chat for lead time
$2,693.64
Top Cables, Connectors, and Adapters Purchased With Datalogic 98201010121-014212
Corded In-Counter Barcode Scanner, Datalogic Magellan 9800i, 2D Imager, General Purpose, Embedded Scale, USB Connection, Retail USB Cable Included, Black/Silver, Long Platter/Sapphire Glass Glass, English Scale/Display, Single Interval, TDR Tall, Power Brick Not Included
Item on backorder — chat for lead time
$2,693.64
Top Grocery Barcode Scanner Purchased With Datalogic 98201010121-014212
Corded In-Counter Barcode Scanner, Datalogic Magellan 9800i, 2D Imager, General Purpose, Embedded Scale, USB Connection, Retail USB Cable Included, Black/Silver, Long Platter/Sapphire Glass Glass, English Scale/Display, Single Interval, TDR Tall, Power Brick Not Included
Item on backorder — chat for lead time
$2,693.64
Top Imager Barcode Scanner Purchased With Datalogic 98201010121-014212
Corded In-Counter Barcode Scanner, Datalogic Magellan 9800i, 2D Imager, General Purpose, Embedded Scale, USB Connection, Retail USB Cable Included, Black/Silver, Long Platter/Sapphire Glass Glass, English Scale/Display, Single Interval, TDR Tall, Power Brick Not Included
Item on backorder — chat for lead time
$2,693.64
Top In-counter Barcode Scanner Purchased With Datalogic 98201010121-014212
Corded In-Counter Barcode Scanner, Datalogic Magellan 9800i, 2D Imager, General Purpose, Embedded Scale, USB Connection, Retail USB Cable Included, Black/Silver, Long Platter/Sapphire Glass Glass, English Scale/Display, Single Interval, TDR Tall, Power Brick Not Included
Item on backorder — chat for lead time
$2,693.64
Top Miscellaneous Purchased With Datalogic 98201010121-014212
Corded In-Counter Barcode Scanner, Datalogic Magellan 9800i, 2D Imager, General Purpose, Embedded Scale, USB Connection, Retail USB Cable Included, Black/Silver, Long Platter/Sapphire Glass Glass, English Scale/Display, Single Interval, TDR Tall, Power Brick Not Included
Item on backorder — chat for lead time
$2,693.64
Top Scale Accessories Purchased With Datalogic 98201010121-014212
What barcode types can the Datalogic Magellan 9800i scanner read?
The Magellan 9800i is a high-performance 2D imaging scanner that reads all standard 1D linear codes including GS1 DataBar formats, as well as 2D codes such as QR Code, Data Matrix, Aztec Code, and Micro QR. It also decodes stacked codes including PDF417, MicroPDF417, and GS1 DataBar Composites, making it ideal for retail and grocery environments requiring versatile barcode recognition.
Is the Magellan 9800i suitable for high-volume checkout environments?
Yes, the Magellan 9800i is specifically designed as the world's first barcode scanner driven completely by high-performance digital imaging to maximize checkout performance in the busiest retail environments. Its state-of-the-art imaging technology delivers high reliability and maximum throughput for both 1D and 2D barcodes, making it an excellent choice for grocery and retail applications.
What connectivity options does the Magellan 9800i offer?
The Magellan 9800i features RS-232 serial connectivity as standard and includes an RS-232 standard cable. It also supports multiple interface options including IBM 46XX, USB Host (Type A) with two powered ports, and multi-interface configurations that allow single-cable operation for both scanner and integrated scale functions.
Does the Magellan 9800i include an integrated scale?
Yes, the Magellan 9800i features an embedded scale with All-Weighs scale platter technology that integrates both horizontal and vertical scale surfaces. The scanner supports remote scale display connectivity and is available in single or dual interval scale configurations, making it a complete point-of-sale solution for retail checkout counters.
What are the environmental operating specifications for the Magellan 9800i?
The Magellan 9800i operates reliably in ambient light conditions from 0 to 86,080 lux with humidity tolerance of 5-95% non-condensing. It functions in temperatures from 10 to 40°C (50 to 104°F) during operation and maintains storage capability from -40 to 70°C (-40 to 158°F), with 25kV ESD protection for durability in demanding retail environments.
What management and diagnostic capabilities does the Magellan 9800i provide?
The Magellan 9800i supports comprehensive remote management through diagnostic reporting, WMI (OPOS and JavaPOS) compliance, and JavaPOS MBeans support. It is compatible with IBM Director, Wavelink Avalanche, and other ERP management solutions, enabling centralized host download and firmware updates for enterprise retail operations.
The Datalogic 98201010121-014212 Barcode Scanner is also known as
DTL-9820101012101401
or 98201010121014212.
Full specifications (PDF)
