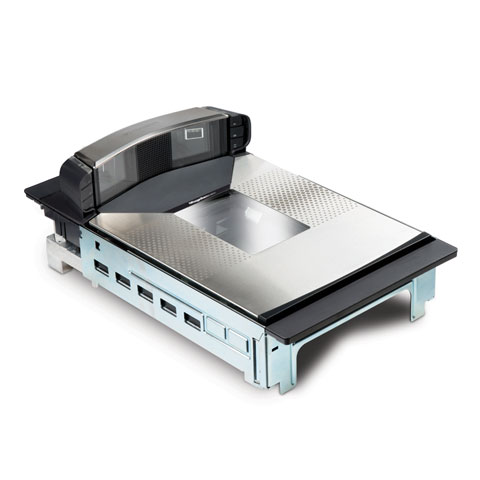

Datalogic Magellan 9800i Barcode Scanner Model Overview
The Magellan™ 9800i scanner/scale by Datalogic offers unmatched performance in barcode scanning, capable of seamlessly reading both 1D and 2D barcodes without the need for item orientation. Its ergonomic design features a low bonnet height for enhanced accessibility, ideal for diverse customer needs, including ADA compliance. The integrated customer-facing mobile device reader streamlines mobile commerce, significantly reducing transaction times. Empower your checkout experience with advanced imaging technology and loss prevention features that help minimize shrinkage, making the Magellan 9800i the ultimate choice for retailers seeking efficiency and effectiveness at the point of sale.
Key Features
Advanced digital imaging in all reading planes
Seamless reading of 1D and 2D codes

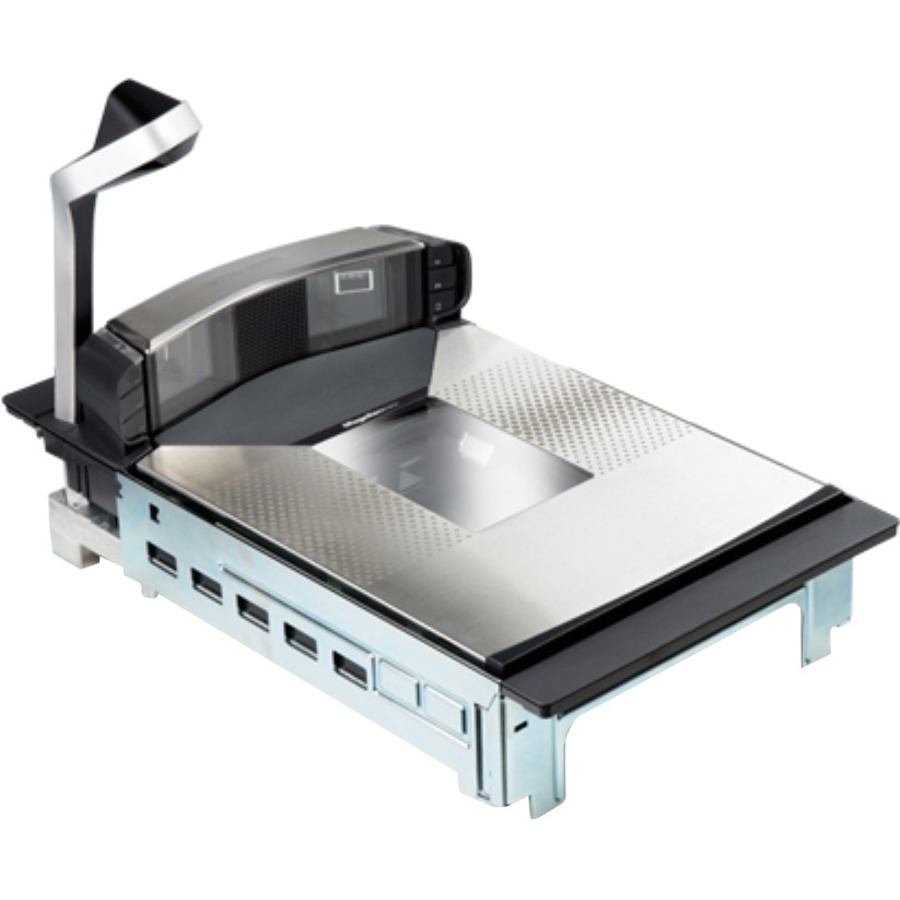

Optional Top Down Reader for enhanced field-of-view
The largest All-Weighs™ scale platter for accurate weighing
ScaleSentry™ Shrink Monitoring technology
Illumix™ Intelligent Illumination Technology
Remote Management support for easy operations
Specifications
Decoding Capability:
1D/Linear Codes
Stacked Codes
2D Codes
Digital Watermarks
Electrical:
AC Power Requirements: 100-240 VAC, 50-60 Hz
Power Consumption: 12 Watts operating / 11 Watts sleep mode
Environmental:
Operating Temperature: 10 to 40 °C / 50 to 104 °F
Humidity: 5-95% Non-Condensing
Ambient Light: 0-86,080 lux
Physical Characteristics:
Dimensions: 35.2 - 50.7 cm in length, 29.2 cm in width
Table Height: Above Counter - 6.8 cm / Below Counter - 10.6 cm
Premium bi-optic with market-leading performance for high-throughput scanning
THE POWER OF IMAGING
The Magellan 9800i scanner/scale defines a new class of high performance bar code scanners for a worldwide market. With digital imagers in all planes, the 9800i scanner is the first scanner capable of reading both 1D and 2D bar codes seamlessly without requiring item orientation by the cashier
The striking new design improves ergonomics with its lower bonnet height to allow repositioning of POS or self check-out touchscreens, payment terminals and receipt printers to better accommodate ADA customers. The centered speaker provides audio feedback with .wav files for greater fidelity. The large horizontal window is ergonomically positioned for both standing and seated cashiers.
ENHANCING THE CUSTOMER EXPERIENCE
An integrated, customer-facing mobile device reader enables retailers to easily engage in mobile commerce. This eliminates the need for an additional scanner, power supply, outlet, interface cable, POS port and mounting hardware. The customer can scan bar codes from their mobile phone screen or paper coupons while the cashier continues to scan regular items in parallel, resulting in a significant reduction in total transaction time.
LOSS PREVENTION
Shrink reduction ranks high among retailers' concerns and the Magellan 9800i scanner has key features designed to reduce shrink at the POS.
ENTERPRISE FEATURES
Remote Management is supported for OPOS, JavaPOS, IBM™ Director and Wavelink™ Avalanche. Additional capabilities are available with the Value Added Features included in every Magellan scanner.
Corded In-Counter Barcode Scanner, Datalogic Magellan 9800i, 2D Imager, General Purpose, Embedded Scale, USB Connection, Retail USB Cable Included, Black/Silver, Long Platter/Sapphire Glass Glass, English Scale/Display, Single Interval, TDR Tall, Power Brick Not Included
Item on backorder — chat for lead time
$2,693.64
Top Best Barcode Scanner Purchased With Datalogic 9810210220-00313
Corded In-Counter Barcode Scanner, Datalogic Magellan 9800i, 2D Imager, General Purpose, Embedded Scale, USB Connection, Retail USB Cable Included, Black/Silver, Long Platter/Sapphire Glass Glass, English Scale/Display, Single Interval, TDR Tall, Power Brick Not Included
Item on backorder — chat for lead time
$2,693.64
Top Cables, Connectors, and Adapters Purchased With Datalogic 9810210220-00313
Corded In-Counter Barcode Scanner, Datalogic Magellan 9800i, 2D Imager, General Purpose, Embedded Scale, USB Connection, Retail USB Cable Included, Black/Silver, Long Platter/Sapphire Glass Glass, English Scale/Display, Single Interval, TDR Tall, Power Brick Not Included
Item on backorder — chat for lead time
$2,693.64
Top Grocery Barcode Scanner Purchased With Datalogic 9810210220-00313
Corded In-Counter Barcode Scanner, Datalogic Magellan 9800i, 2D Imager, General Purpose, Embedded Scale, USB Connection, Retail USB Cable Included, Black/Silver, Long Platter/Sapphire Glass Glass, English Scale/Display, Single Interval, TDR Tall, Power Brick Not Included
Item on backorder — chat for lead time
$2,693.64
Top Imager Barcode Scanner Purchased With Datalogic 9810210220-00313
Corded In-Counter Barcode Scanner, Datalogic Magellan 9800i, 2D Imager, General Purpose, Embedded Scale, USB Connection, Retail USB Cable Included, Black/Silver, Long Platter/Sapphire Glass Glass, English Scale/Display, Single Interval, TDR Tall, Power Brick Not Included
Item on backorder — chat for lead time
$2,693.64
Top In-counter Barcode Scanner Purchased With Datalogic 9810210220-00313
Corded In-Counter Barcode Scanner, Datalogic Magellan 9800i, 2D Imager, General Purpose, Embedded Scale, USB Connection, Retail USB Cable Included, Black/Silver, Long Platter/Sapphire Glass Glass, English Scale/Display, Single Interval, TDR Tall, Power Brick Not Included
Item on backorder — chat for lead time
$2,693.64
Top Miscellaneous Purchased With Datalogic 9810210220-00313
Corded In-Counter Barcode Scanner, Datalogic Magellan 9800i, 2D Imager, General Purpose, Embedded Scale, USB Connection, Retail USB Cable Included, Black/Silver, Long Platter/Sapphire Glass Glass, English Scale/Display, Single Interval, TDR Tall, Power Brick Not Included
Item on backorder — chat for lead time
$2,693.64
Top Scale Accessories Purchased With Datalogic 9810210220-00313
What barcode types can the Datalogic Magellan 9800i scanner read?
The Magellan 9800i reads both 1D and 2D barcodes seamlessly without requiring item orientation. It decodes all standard 1D codes including GS1 DataBar linear codes, stacked codes like PDF417 and MicroPDF417, and 2D codes including QR Code, Data Matrix, Aztec Code, and Micro QR. The scanner also supports optional digital watermark reading via Digimarc technology.
Is the Magellan 9800i suitable for high-volume retail checkout environments?
Yes, the Magellan 9800i is specifically designed for high-performance checkout in the world's busiest retail environments. Its multi-plane digital imaging technology provides maximum throughput for both 1D and 2D barcodes, making it ideal for high-volume POS and self-checkout applications where speed and reliability are critical.
Does the Magellan 9800i include a built-in scale?
The Magellan 9800i is available as a scanner/scale combination unit with an adaptive scale feature, making it suitable for produce and other weighed items at checkout. We offer both scanner-only and scanner/scale configurations to meet your specific POS requirements.
What ergonomic features does the Magellan 9800i offer for cashiers?
The Magellan 9800i features a lower bonnet height that improves ergonomics and allows better repositioning of POS touchscreens, payment terminals, and receipt printers to accommodate ADA requirements. The large horizontal window is ergonomically positioned for both standing and seated cashiers, and the centered speaker provides audio feedback with .wav file support for greater fidelity.
Can the Magellan 9800i support mobile commerce and customer-facing scanning?
Yes, the Magellan 9800i includes an integrated customer-facing mobile device reader that enables customers to scan barcodes from their mobile phone screens or paper coupons. This eliminates the need for additional scanners, power supplies, and mounting hardware while allowing the cashier to scan regular items in parallel, significantly reducing transaction time.
What connectivity options are available for the Magellan 9800i?
The Datalogic Magellan 9800i is available with RS cable connectivity for reliable wired connection to your POS system. Contact us today to discuss your specific connectivity requirements and explore all available configuration options for your retail environment.
The Datalogic 9810210220-00313 Barcode Scanner is also known as
981021022000313
Full specifications (PDF)
