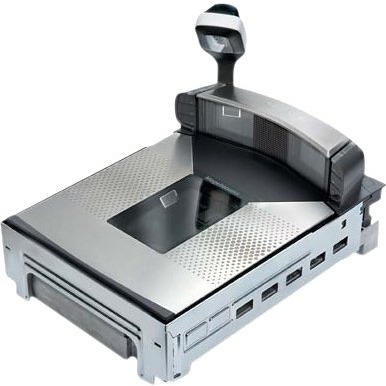

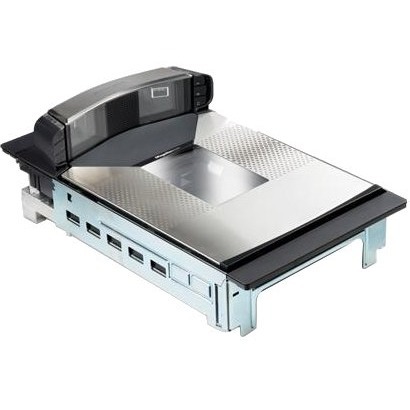

Datalogic Magellan 9800i Barcode Scanner Model Overview
The Magellan™ 9800i scanner/scale by Datalogic offers unmatched performance in barcode scanning, capable of seamlessly reading both 1D and 2D barcodes without the need for item orientation. Its ergonomic design features a low bonnet height for enhanced accessibility, ideal for diverse customer needs, including ADA compliance. The integrated customer-facing mobile device reader streamlines mobile commerce, significantly reducing transaction times. Empower your checkout experience with advanced imaging technology and loss prevention features that help minimize shrinkage, making the Magellan 9800i the ultimate choice for retailers seeking efficiency and effectiveness at the point of sale.
Key Features
Advanced digital imaging in all reading planes
Seamless reading of 1D and 2D codes
Optional Top Down Reader for enhanced field-of-view
The largest All-Weighs™ scale platter for accurate weighing
ScaleSentry™ Shrink Monitoring technology
Illumix™ Intelligent Illumination Technology
Remote Management support for easy operations
Specifications
Decoding Capability:
1D/Linear Codes
Stacked Codes
2D Codes
Digital Watermarks
Electrical:
AC Power Requirements: 100-240 VAC, 50-60 Hz
Power Consumption: 12 Watts operating / 11 Watts sleep mode
Environmental:
Operating Temperature: 10 to 40 °C / 50 to 104 °F
Humidity: 5-95% Non-Condensing
Ambient Light: 0-86,080 lux
Physical Characteristics:
Dimensions: 35.2 - 50.7 cm in length, 29.2 cm in width
Table Height: Above Counter - 6.8 cm / Below Counter - 10.6 cm
Datalogic, the global leader in high volume retail checkout scanning, has created the next generation scanner for high volume checkouts. The new Magellan 9800i scanner is the world's first bar code scanner driven completely by high performance digital imaging, resulting in the ability to increase checkout performance in the world's busiest checkout environments.
The Magellan 9800i scanner offers a state-of-the-art family of imaging scanners and scanner/scales with high reliability designed to provide maximum throughput for both 1D and 2D bar codes.
With a new and unique optional feature, the Top Down Reader offers seamless scanning of top-marked items. The Magellan 9800i scanner also enables a new way to interact with shoppers: a customer-facing imager allows shoppers to quickly and easily self-scan digital coupons from mobile devices, paper-based coupons and loyalty cards.
Corded In-Counter Barcode Scanner, Datalogic Magellan 9800i, 2D Imager, General Purpose, Embedded Scale, USB Connection, Retail USB Cable Included, Black/Silver, Long Platter/Sapphire Glass Glass, English Scale/Display, Single Interval, TDR Tall, Power Brick Not Included
Item on backorder — chat for lead time
$2,693.64
Top Best Barcode Scanner Purchased With Datalogic 9810120120-04551
Corded In-Counter Barcode Scanner, Datalogic Magellan 9800i, 2D Imager, General Purpose, Embedded Scale, USB Connection, Retail USB Cable Included, Black/Silver, Long Platter/Sapphire Glass Glass, English Scale/Display, Single Interval, TDR Tall, Power Brick Not Included
Item on backorder — chat for lead time
$2,693.64
Top Cables, Connectors, and Adapters Purchased With Datalogic 9810120120-04551
Corded In-Counter Barcode Scanner, Datalogic Magellan 9800i, 2D Imager, General Purpose, Embedded Scale, USB Connection, Retail USB Cable Included, Black/Silver, Long Platter/Sapphire Glass Glass, English Scale/Display, Single Interval, TDR Tall, Power Brick Not Included
Item on backorder — chat for lead time
$2,693.64
Top Grocery Barcode Scanner Purchased With Datalogic 9810120120-04551
Corded In-Counter Barcode Scanner, Datalogic Magellan 9800i, 2D Imager, General Purpose, Embedded Scale, USB Connection, Retail USB Cable Included, Black/Silver, Long Platter/Sapphire Glass Glass, English Scale/Display, Single Interval, TDR Tall, Power Brick Not Included
Item on backorder — chat for lead time
$2,693.64
Top Imager Barcode Scanner Purchased With Datalogic 9810120120-04551
Corded In-Counter Barcode Scanner, Datalogic Magellan 9800i, 2D Imager, General Purpose, Embedded Scale, USB Connection, Retail USB Cable Included, Black/Silver, Long Platter/Sapphire Glass Glass, English Scale/Display, Single Interval, TDR Tall, Power Brick Not Included
Item on backorder — chat for lead time
$2,693.64
Top In-counter Barcode Scanner Purchased With Datalogic 9810120120-04551
Corded In-Counter Barcode Scanner, Datalogic Magellan 9800i, 2D Imager, General Purpose, Embedded Scale, USB Connection, Retail USB Cable Included, Black/Silver, Long Platter/Sapphire Glass Glass, English Scale/Display, Single Interval, TDR Tall, Power Brick Not Included
Item on backorder — chat for lead time
$2,693.64
Top Miscellaneous Purchased With Datalogic 9810120120-04551
Corded In-Counter Barcode Scanner, Datalogic Magellan 9800i, 2D Imager, General Purpose, Embedded Scale, USB Connection, Retail USB Cable Included, Black/Silver, Long Platter/Sapphire Glass Glass, English Scale/Display, Single Interval, TDR Tall, Power Brick Not Included
Item on backorder — chat for lead time
$2,693.64
Top Scale Accessories Purchased With Datalogic 9810120120-04551
What barcode types can the Datalogic Magellan 9800i scanner read?
The Magellan 9800i is capable of reading both 1D and 2D barcodes seamlessly without requiring item orientation. It decodes all standard 1D codes including GS1 DataBar linear codes, stacked codes like PDF417 and MicroPDF417, and 2D codes including QR Code, Data Matrix, and Aztec Code. The scanner also supports optional digital watermark reading through Digimarc technology, making it highly versatile for retail checkout environments.
Is the Magellan 9800i suitable for both standing and seated cashiers?
Yes, the Magellan 9800i features ergonomic design specifically optimized for both standing and seated cashiers. The scanner includes a large horizontal window that is ergonomically positioned for comfortable use in either position, and its lower bonnet height allows better repositioning of POS touchscreens, payment terminals, and receipt printers to accommodate different cashier heights and ADA requirements.
Does the Magellan 9800i support mobile device scanning?
Yes, the Magellan 9800i includes an integrated, customer-facing mobile device reader that enables retailers to engage in mobile commerce. This built-in feature allows customers to scan barcodes directly from their mobile phone screens or paper coupons while the cashier continues scanning regular items in parallel, significantly reducing total transaction time without requiring additional hardware or POS ports.
What makes the Magellan 9800i different from previous barcode scanner models?
The Magellan 9800i is the world's first barcode scanner driven completely by high-performance digital imaging in all planes, enabling it to read both 1D and 2D codes without requiring item orientation by the cashier. This multi-plane imaging technology, combined with its enhanced ergonomic design and integrated mobile device reader, represents a significant advancement in checkout performance for high-volume retail environments.
What connectivity options are available for the Datalogic 9800i scanner?
This model comes configured with a Retail USB Cable for connection to your POS system. The scanner is designed for integration into retail checkout environments and connects via standard USB interface, making it compatible with most modern point-of-sale systems used in retail operations.
Can the Magellan 9800i help reduce shrink and loss prevention in retail?
Yes, the Magellan 9800i includes key features specifically designed to reduce shrink at the point of sale, addressing one of retailers' top concerns. The scanner's high-performance imaging and reliable decoding capabilities help ensure accurate item capture during transactions, while its integrated loss prevention features support enterprise-level security requirements in busy checkout environments.
The Datalogic 9810120120-04551 Barcode Scanner is also known as
DTL-981012012004551
or 981012012004551.
Full specifications (PDF)
