Datalogic 959951040 Sensor
Full specifications (PDF)

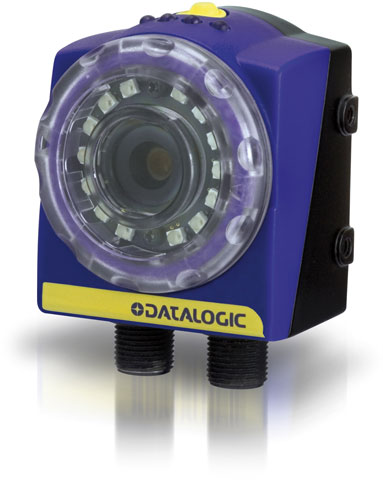

Datalogic DataVS2 Sensor Model Overview
The Datalogic DataVS2 vision sensor series is expertly engineered to address a variety of machine vision applications with remarkable flexibility and ease of use. This fully embedded device, featuring an integrated optical system, LED illuminator, and electronics within a compact housing, offers seamless configuration and control via PC over Ethernet. With four distinct versions tailored for Object Recognition, Advanced Object Recognition, Identification, and Professional needs, the DataVS2 stands out for its diverse inspection capabilities, making it ideal for applications such as packaging, quality control, and product orientation on conveyor systems.
Key features:
- Flexible and intuitive setup via PC through Ethernet communication.
- Memory for up to 20 inspections.
- Support for 14 different controls including 360° pattern match for Professional models.
- Built-in TURBO mode to double processing speed.
- Inspection & Identification functionalities in Professional models.
Specifications:
- Power supply: 24 Vdc ±10%
- Consumption: 100 mA at 24 Vdc (without illuminator)
- Network interface: M12 4-pole, Ethernet 10/100 Mbs
- Frame rate: 60 fps
- Protection rating: IP50
- Operating temperature: -10...+50°C
- Weight: 125 g
- Dimensions: Compact housing with custom lens options (6mm, 8mm, 12mm, 16mm)
Recommended Accessories
Category
- Fixed Barcode Scanner Accessories (14)
Recommended Accessories for Model: Datalogic 959951040 Sensor
Top Fixed Barcode Scanner Accessories Purchased With Datalogic 959951040
-
Datalogic 95A901480 AccessoryMonitor, Datalogic DataVS2, VSM Monitor, Priced per Unit, 1 Week Lead TimeShips from vendor — chat for lead time$800.00 -
Datalogic 95A252790 AccessoryCable, Datalogic DataVS2, Power, M12, 4 Pin, Shielded Cable, 3 MetersShips from vendor — chat for lead time$27.31 -
Datalogic 95A252800 AccessoryCable, Datalogic DataVS2, Power, M12, 4 Pin, Shielded Cable, 5 MetersItem on backorder — chat for lead time$31.60
