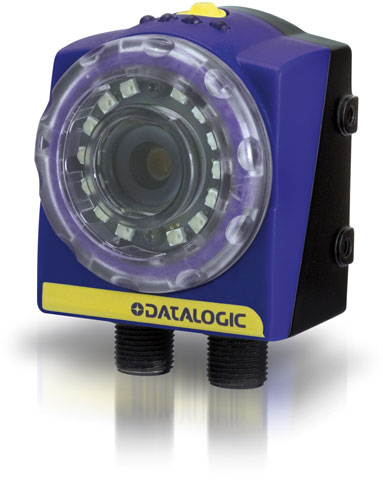

DataLogic DataVS2 Sensor
Datalogic DataVS2 -
The Datalogic DataVS2 ID vision sensor series perfectly matches the ease-of-use and the cost-effectiveness of DataVS2 with the powerful decoding libraries coming from the Datalogic tradition. This scanner represents the perfect entry-level solution for all the identification needs. The sensor on the DataVS2 ID can be easily configured with a Graphical User Interface via Ethernet and does not require complex and time consuming setup.
Full specifications (PDF)
Price Match Guarantee
Found a better price? We'll match it within 60 days of your purchase.
for Qty Discount
Add to Quote
Starting at:
$1,285.00
Get help from a Barcoding Expert!
Accessories For DataLogic DataVS2 Sensor
DataLogic DataVS2 Sensor Options
-
Datalogic 959951190 Sensor
Vision Sensor, Datalogic DataVS2 ID, Red LED, Compact Housing, PNP Output, 24 Vdc, M12 Connector, Also known as DataVS2-16-RE-ID$1,285.00 -
Datalogic 959951140 Sensor
Vision Sensor, Datalogic DataVS2, 8mm Lens, Ethernet and RS-232, Identification Software, 4 LED Indicators, Red Illuminator, M12 Connectors, 60 Frames Per Second, 3+1 PNP Output, Priced per unit, 1 week lead time -
Datalogic 959951050 Sensor
Vision Sensor, Datalogic DataVS2, 6mm Lens, Ethernet Connection, M12 Connectors, Basic Software, 4 LED Indicators, Red Illuminator, 60 Frames Per Second, 3+1 PNP Output, Priced per unit, 4 week lead time -
Datalogic 959951120 Sensor
Vision Sensor, Datalogic DataVS2, 12mm Lens, Ethernet and RS-232 Connection, Identification Software, 4 LED Indicators, Red Illuminator, M12 Connectors, 60 Frames Per Second, 3+1 PNP Output, Priced per unit, 4 week lead time -
Datalogic 959951040 Sensor
Vision Sensor, Datalogic DataVS2, 16mm Lens, Ethernet Connection, Advanced Software, Object Recognition, 4 LED Indicators, Red Illuminator, M12 Connectors, 60 Frames Per Second, 3+1 PNP Output, Priced per unit, 4 week lead time
DataLogic DataVS2 Sensor Model Overview
The Datalogic DataVS2 vision sensor series is expertly engineered to address a variety of machine vision applications with remarkable flexibility and ease of use. This fully embedded device, featuring an integrated optical system, LED illuminator, and electronics within a compact housing, offers seamless configuration and control via PC over Ethernet. With four distinct versions tailored for Object Recognition, Advanced Object Recognition, Identification, and Professional needs, the DataVS2 stands out for its diverse inspection capabilities, making it ideal for applications such as packaging, quality control, and product orientation on conveyor systems.
Key features:
- Flexible and intuitive setup via PC through Ethernet communication.
- Memory for up to 20 inspections.
- Support for 14 different controls including 360° pattern match for Professional models.
- Built-in TURBO mode to double processing speed.
- Inspection & Identification functionalities in Professional models.
Specifications:
- Power supply: 24 Vdc ±10%
- Consumption: 100 mA at 24 Vdc (without illuminator)
- Network interface: M12 4-pole, Ethernet 10/100 Mbs
- Frame rate: 60 fps
- Protection rating: IP50
- Operating temperature: -10...+50°C
- Weight: 125 g
- Dimensions: Compact housing with custom lens options (6mm, 8mm, 12mm, 16mm)
