Datalogic 950401004 Mobile Computer

A newer version of this item is available.
It is replaced by the Datalogic 944301008 Mobile Computer.

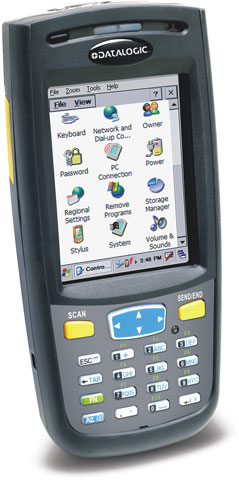

Datalogic Pegaso - Wireless PDA (Windows Mobile 6.0, Wi-Fi, Bluetooth, 128MB RAM, 19-Key and Laser)

Built-in Wi-Fi enables seamless transfer of captured images and scanned data between devices
3.6" LCD screen is ideal for scan intensive applications
Laser scan engine guarantees rapid error free data entry
Windows Mobile 6.0 Professional Edition offers familiar interface and the control of Web-based applications for greater ease of use and worker satisfaction
128 MB standard memory for smooth multitasking without crashing or slowing down
Store your additional data in the supported SD memory card
Wireless connectivity option lets you transmit data instantly from your handheld terminal to your network while keeping you up to date

Need a different version? See all Datalogic Pegaso Mobile Computers

Discontinued See Replacement

Add to Quote

Overview

Full specifications (PDF)

Datalogic Pegaso Mobile Computer Model Overview

The Pegaso is an industrial PDA which is comfortable in both small and large hands. Extended capacity battery integrated into design. A wide variety of wireless and cabled options including USB On-The-Go and Bluetooth. SDIOport located top for easy access and extended cards.Viewable indoors or outdoors,provides high resolution for graphics or video applications.

Datalogic 950401004 Mobile Computer Overview

Pegaso Mobile Computer is comfortable in both small and large hands. Extended capacity battery integrated into design. Viewable indoors or outdoors, provides high resolution for exceptional clarity.Convenient one piece battery with integrated cover allows one-handed replacement of the battery. Spare battery charger located in front of the dock for easy access.

Detailed Specs

Full specifications (PDF)

Technical Information

Connectivity Technology:

Wireless

Light Source:

Laser

Barcode Symbology Supported:

Code 32
Code 39
Code 93
Codabar
Code 128
EAN/JAN-8
EAN/JAN-13
EAN-128
UPC-A
UPC-E
Interleaved 2 of 5
Matrix 2 of 5
MSI
Standard 2 of 5
Code 39 Full ASCII
UPC/EAN 2 Digit Extensions
UPC/EAN 5 Digit Extensions
RSS-14
RSS-Limited
RSS-Expanded

Drop Specification (To Concrete):

60"

Processor & Chipset

Processor Manufacturer:

Intel

Processor Type:

XScale

Processor Speed:

520 MHz

Memory

Standard Memory:

128 MB

Flash Memory:

128 MB

Memory Card Slot:

Yes

Memory Card Supported:

Display & Graphics

Screen Size:

3.6"

Screen Mode:

VGA

Screen Resolution:

480 x 640

Display Color:

Color

Display Screen Type:

LCD

Keyboard/Keypad

Number of Keys:

Network & Communication

Wireless LAN:

Yes

Wireless LAN Standard:

IEEE 802.11b/g

Bluetooth:

Yes

I/O Expansions

Expansion Slot Type:

SDIO

Software

Operating System:

Windows Mobile 6.0 Professional Edition

Battery Information

Battery Capacity:

3300 mAh

Battery Chemistry:

Lithium Ion (Li-Ion)

Physical Characteristics

Weight (Approximate):

1.06 lb

Miscellaneous

Additional Information:

RS232 and USB Interface

Certifications & Standards:

Electrical:

EN55022
EN60950
UL60950
CSA 60950
EN60950-1
UL60950-1
CSA60950-1
IEC 60950-1

Radio:

FCC Part 15-C
R&TTE
IC
IDA

Restriction Of Hazardous:

Battery:

UL1642
IATA/UN 3090
UL2054

Laser Classification:

CDRH Class II

Emissions:

FCC Part 15-B
CISPR 22

Human Exposure:

EN50361
EN50371
EN50392
IEEE 1528

Environmentally Friendly:

Yes

Item Numbers

UNSPSC: 43211715

Reviews

Q&A

Accessories

Questions? Get Help from
a Mobile Expert!

The Datalogic 950401004 Mobile Computer is also known as DTL-950401004 or 950401004.
