Datalogic 950401003 Mobile Computer

Datalogic 944301008 Mobile Computer A newer version of this item is available.
It is replaced by the Datalogic 944301008 Mobile Computer.

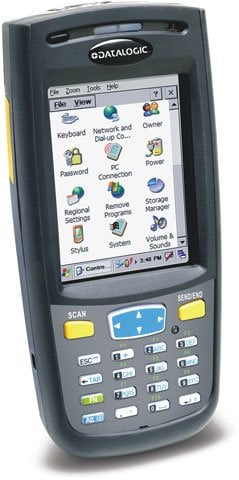

Datalogic Pegaso - Wireless PDA (Windows Mobile 6.0, GPRS/Edge Wi-Fi, Bluetooth, 128MB RAM, 19-Key and Laser)
  • The secure wireless connectivity allows your employees to stay productive while away from their desks
  • 3.6" LCD screen is ideal for scan intensive applications
  • Laser light source provides efficient, dependable performance of handheld terminal
  • Windows Mobile 6.0 Professional Edition offers familiar interface and the control of Web-based applications for greater ease of use and worker satisfaction
  • 128 MB standard memory seamlessly handles multiple programs together
  • SD card slot gives an extra storage option
  • Wireless connectivity option lets you transmit data instantly from your handheld terminal to your network while keeping you up to date
  • Experience the versatility of Bluetooth connectivity with your Datalogic Handheld Terminal
Read More
Discontinued See Replacement
Recommended TrueSupport Coverage (/mo.)

x

Are you sure you don't need TrueSupport?

The average internal IT
cost for device support is over per year!

With TrueSupport you're
covered - and for way less!
  • Hardware Helpdesk Support
  • RMA Repair Facilitation
  • OEM Service Contract Management
  • Premium Phone & Email Support
  • Billed annually per device

Only /month
Subtotal ( items)

x
You've just added this product to the cart:

Go To Cart
Add to Quote
Datalogic Pegaso Mobile Computer Model Overview
The Pegaso is an industrial PDA which is comfortable in both small and large hands. Extended capacity battery integrated into design. A wide variety of wireless and cabled options including USB On-The-Go and Bluetooth. SDIOport located top for easy access and extended cards.Viewable indoors or outdoors,provides high resolution for graphics or video applications.
Datalogic 950401003 Mobile Computer Overview

Pegaso Mobile Computer is comfortable in both small and large hands. Extended capacity battery integrated into design. Viewable indoors or outdoors, provides high resolution for exceptional clarity. Convenient one piece battery with integrated cover allows one-handed replacement of the battery. Spare battery charger located in front of the dock for easy access.

Technical Information
Connectivity Technology:
Wireless
Light Source:
Laser
Barcode Symbology Supported:
  • Code 32
  • Code 39
  • Code 93
  • Codabar
  • Code 128
  • EAN/JAN-8
  • EAN/JAN-13
  • EAN-128
  • UPC-A
  • UPC-E
  • Interleaved 2 of 5
  • Matrix 2 of 5
  • MSI
  • Standard 2 of 5
  • Code 39 Full ASCII
  • UPC/EAN 2 Digit Extensions
  • UPC/EAN 5 Digit Extensions
  • RSS-14
  • RSS-Limited
  • RSS-Expanded
Drop Specification (To Concrete):
60"
Processor & Chipset
Processor Manufacturer:
Intel
Processor Type:
XScale
Processor Speed:
520 MHz
Memory
Standard Memory:
128 MB
Flash Memory:
128 MB
Memory Card Slot:
Yes
Memory Card Supported:
SD
Display & Graphics
Screen Size:
3.6"
Screen Mode:
VGA
Screen Resolution:
480 x 640
Display Color:
Color
Display Screen Type:
LCD
Keyboard/Keypad
Number of Keys:
19
Network & Communication
Wireless LAN:
Yes
Wireless LAN Standard:
IEEE 802.11b/g
Bluetooth:
Yes
Network Band:
Quad Band
I/O Expansions
Expansion Slot Type:
SDIO
Software
Operating System:
Windows Mobile 6.0 Professional Edition
Battery Information
Battery Capacity:
3300 mAh
Battery Chemistry:
Lithium Ion (Li-Ion)
Physical Characteristics
Weight (Approximate):
1.06 lb
Miscellaneous
Additional Information:
  • RS232 and USB Interface
Certifications & Standards:

Electrical:

  • EN55022
  • EN60950
  • UL60950
  • CSA 60950
  • EN60950-1
  • UL60950-1
  • CSA60950-1
  • IEC 60950-1

Radio:

  • FCC Part 15-C
  • R&TTE
  • IC
  • IDA

Restriction Of Hazardous:

Battery:

  • UL1642
  • IATA/UN 3090
  • UL2054

Laser Classification:

  • CDRH Class II

Emissions:

  • FCC Part 15-B
  • CISPR 22

Human Exposure:

  • EN50361
  • EN50371
  • EN50392
  • IEEE 1528
Environmentally Friendly:
Yes
Item Numbers
UNSPSC: 43211715
Questions? Get Help from
a Mobile Expert!

What is your operating system?

The Datalogic 950401003 Mobile Computer is also known as DTL-950401003 or 950401003.
