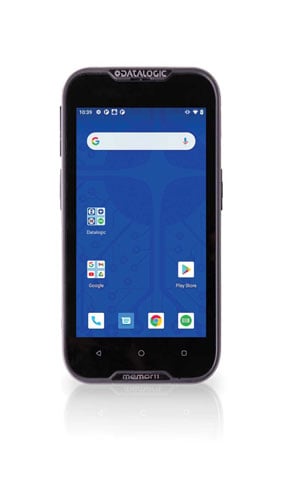

Experience the power and flexibility of the Datalogic Memor™ 11 Family of Mobile Computers. Designed for today’s mobile workforce, this device features advanced processing capabilities and an intuitive Android 11 interface that ensures superior scanning performance. Choose between Wi-Fi only or Wi-Fi/Cellular models tailored to meet your needs across various industries such as Retail, Logistics, and Manufacturing. With a semi-rugged, compact design and robust battery management, the Memor 11 guarantees reliable connectivity and durability in any environment.
Key Features:
Versatile models: Available in Wi-Fi only and Wi-Fi/Cellular options.
Rugged design: Semi-rugged and compact construction to withstand tough conditions.
Enhanced scanning: High-performance 2D imager with Datalogic's 'Green Spot' technology.
Long-lasting battery: Swappable battery with SafeSwap™ for uninterrupted operation.
Enterprise-ready: Certified Android™ Enterprise Recommended device with robust security features.
Specifications:
Physical Characteristics:
Dimensions: 15.5 x 7.8 x 1.87 cm (6.1 x 3.07 x 0.73 in)
Weight: 285 g (10.0 oz) with battery
Display: 5 inch IPS HD, 720 x 1280, multi-touch capacitive panel
Performance:
Processor: 2 GHz Octa-core
RAM: 4 GB
Storage: 32 GB eMMC Flash (Expandable via microSD)
Connectivity:
WLAN: IEEE 802.11 a/b/g/n/ac
Bluetooth: Class 2, Bluetooth® V5.0, Low Energy (BLE)
NFC: Support for ISO14443-4 and ISO15693 standards
Battery:
Capacity: 4,100 mAh, swappable
Fast Charging: 10 watts
Wireless Charging: Yes
Environmental:
Operating Temperature: -20 to 50 °C
Drop Resistance: Withstands drops from 1.5 m (5 ft)
Water and Dust Resistance: IP65 rated
DataLogic 944900002 Mobile Computer Overview
FLEXIBILITY TAILORED FOR YOUR WORKFORCE
The Memor 11 family is designed to provide a versatile solution for today's mobile workforce. With an up-to-date operating system and enhanced processing capabilities, this family of devices deliver superior scanning performance and all-around efficiency. Whether you require flexibility in Retail, Warehouse, Manufacturing, or Transportation & Logistic applications, the Memor 11 family is built to meet your needs. Choose between Wi-Fi only or Wi-Fi/Cellular models to always be connected within your premises or wherever you go.
RUGGED AND COMPACT DESIGN IN AN ENTERPRISE-GRADE FORM FACTOR
The market-proven, semi-rugged, and compact design of the Memor 11 follows the highly successful Memor 10 and can withstands more tumble hits than most comparable devices in the market.
ADVANCED BATTERY MANAGEMENT AND WIRELESS CHARGING
Agile performance due to its long-lasting swappable battery and embedded SafeSwap Technology which ensures uninterrupted continuity. Its effective wireless charging system provides ultra-reliable contactless charging that helps reduce maintenance and promotes efficient charging.
IMPROVED SCANNING PERFORMANCE
Heighten scanning performance in dark warehouse environments with the high-end 2D scan engine, plus increased accuracy and efficiency when paired with Datalogic's exclusive 'Green Spot' Technology in scan-intensive settings.
ENTERPRISE-READY SOLUTION; A SECURE INVESTMENT
Certified as an Android Enterprise Recommended device with fortified security and privacy settings of Android 11, plus the benefits of Google Mobile Services.
Withstands drops from 1.5 m / 5.0 ft onto concrete (with rubber boot); Withstands drops from 1.2 m / 4.0 ft onto concrete (without rubber boot). Tested onto steel/ concrete according to IEC 68-2-32 Method 2 and MIL STD 810G Transit drop test.
Illumination Type:
LED
Depth of Field:
4 to 90 cm / 1.6 to 35 in, depending on bar code density and type; Resolution: Megapixel (1280 x 800 pixels); Illumination: White and Red LEDs (for Digimarc); Aiming: 650nm VLD; Field of View: 42°H x 26°V
Processor & Chipset
Processor Core:
Octa-core (8 Core)
Processor Speed:
2 GHz
Memory
Standard Memory:
4 GB
Flash Memory:
32 GB
Memory Card Supported:
microSD
microSDHC
Display & Graphics
Screen Size:
5"
Screen Mode:
HD
Screen Resolution:
720 x 1280
Display Screen Type:
LED
Touchscreen Information
Touchscreen:
Yes
Multi-touch Screen:
Yes
Number of Simultaneous Touchpoints:
5
Network & Communication
Wireless LAN:
Yes
Bluetooth:
Yes
Bluetooth Standard:
Bluetooth 5.0 BLE
Near Field Communication (NFC):
Yes
Cellular Network Supported:
GSM
WCDMA
Cellular Data Connectivity Technology:
LTE Advanced
4G
3G
2G
GPS:
Yes
Global Navigation Satellite System (GNSS) Supported:
What are the key improvements of the Datalogic Memor 11 compared to the Memor 10?
The Memor 11 features enhanced ruggedness with tougher materials that can withstand more impacts than its predecessor, and it includes improved 2D scanning capabilities that deliver accurate reads even in dark environments. Built on the proven Memor 10 foundation, the Memor 11 maintains enterprise-ready reliability while adding these performance enhancements for demanding warehouse and logistics operations.
Is the Datalogic Memor 11 waterproof and suitable for harsh warehouse environments?
Yes, the Memor 11 features IP54 particulate and water sealing, making it resistant to dust and moisture in demanding environments. It also withstands repeated drops from 0.76 m (2.50 ft) onto concrete and operates reliably in temperatures from 0 to 50°C (32 to 122°F), making it ideal for warehouse, logistics, and transportation applications.
What barcode types can the Datalogic Memor 11 scan?
The Memor 11 with its FFHE HP 2D Imager can decode all standard 1D codes including UPC/EAN, Code 39, Code 128, and GS1 DataBar linear codes, as well as 2D codes such as QR Code, Data Matrix, Aztec Code, and PDF417. The Green Spot good-read feedback technology provides visual confirmation of successful scans in any lighting condition.
What connectivity options are available with the Memor 11 mobile computer?
The Memor 11 is available in Wi-Fi/Cellular or Wi-Fi-only configurations to keep your workforce connected within your premises and in the field. It features RS-232 and USB interfaces for seamless integration with existing warehouse management systems and enterprise infrastructure.
What is the battery capacity and operating time for the Memor 11?
The Memor 11 includes a battery and operates with typical current consumption of less than 180 mA during active scanning, with standby/idle modes consuming as little as 65 mA depending on your configuration. The device comes with a USB cable for convenient charging and data synchronization.
How can I integrate the Datalogic Memor 11 into my existing warehouse systems?
We offer the Memor 11 with multiple interface options including USB and RS-232 connectivity that support plug-and-play installation with most warehouse management systems. Contact us today to discuss integration requirements and ensure the Memor 11 seamlessly connects with your existing infrastructure—our team can help you select the right configuration for your operation.
Questions? Get Help from a Mobile Expert!
The DataLogic 944900002 Mobile Computer is also known as
944900002
