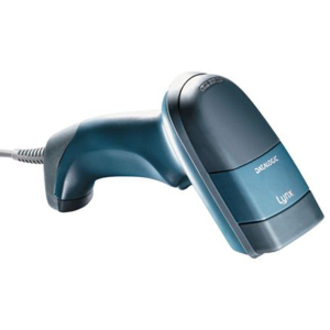

Datalogic 901601033 Barcode Scanner

Datalogic 901601040 Barcode Scanner A newer version of this item is available.
It is replaced by the Datalogic 901601040 Barcode Scanner.
Datalogic Lynx - D402 Standard Resolution CMOS 2D Imager
  • Reads all 1D barcodes with ease so you can accomplish all your tasks more efficiently
  • With laser scanning technology you don't have to use any additional lighting as it works effectively in low ambient lighting conditions too
  • Wired connectivity makes this scanner ideal for retail and desktop applications
Read More

Need a different version? See all Datalogic Lynx Barcode Scanners

Discontinued See Replacement
Add to Quote
Add to My Shopping List Add to Compare
Datalogic 901601033 Barcode Scanner
Datalogic 901601033 Barcode Scanner Datalogic 901601033 Barcode Scanner Datalogic 901601033 Barcode Scanner Datalogic 901601033 Barcode Scanner
Datalogic 901601033 Barcode Scanner
Datalogic 901601033 Barcode Scanner
Datalogic 901601033 Barcode Scanner
Datalogic 901601033 Barcode Scanner
Full specifications (PDF)

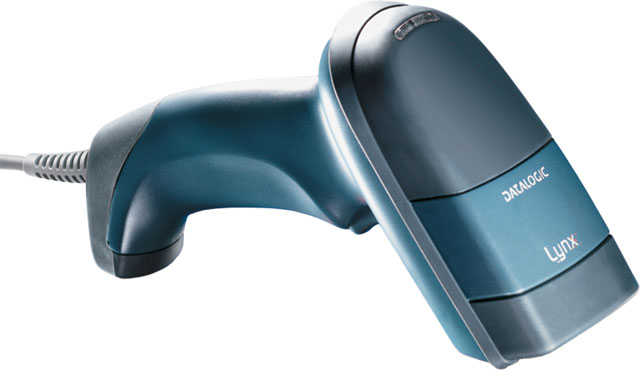

Datalogic Lynx Barcode Scanner Model Overview
The Datalogic Lynx is the latest addition to the Datalogic 2D scanning family. The Lynx is available in both standard and high-resolution modes, allowing perfect scans of linear barcodes as well as image capture for signatures and OCR needs. A five-point aimer lets the user know precisely where the scanner is aimed, eliminating the need for second or third scans. The Lynx is available in USB, RS232 and keyboard wedge configurations.
Datalogic 901601033 Barcode Scanner Overview

The Lynx D402 area imaging scanners feature omni-directional scanning support for most popular 1D, 2D, stacked and postal codes. This auto-discrimination of a wide array of linear and 2D codes along with image capture and intuitive aiming make the Lynx hard to beat. The ease of use is further enhanced by the scanner's multi-standard interface.

Full specifications (PDF)
Technical Information
Connectivity Technology:
Cable
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:
  • Interleaved 2 of 5
  • Code 39
  • Code 128
  • EAN-128
  • Code 93
  • UPC/EAN/JAN
  • Codabar
  • PDF 417
  • DataMatrix
  • QR Code
  • Postnet
  • Royal Mail Code (RM4SCC)
  • PLANET
  • Japanese Post
  • Australian Post
  • Kix
Light Source:
Laser
Maximum Scan Resolution:
6.60 mil
Scan Pattern:
Omni-directional
Interfaces/Ports
Host Interface:
Multi-interface
Physical Characteristics
Form Factor:
Handheld
Height:
8"
Width:
2.7"
Depth:
4.6"
Weight (Approximate):
9.35 oz
Miscellaneous
Additional Information:

Supported Interfaces:

  • RS232
  • Wedge AT IBM
  • USB

USB Cable separate

Certifications & Standards:

Laser Classification:

  • Class 2 (IEC 825-1 and CDRH)
Warranty
Limited Warranty:
2 Year
Item Numbers
UNSPSC: 43211701
