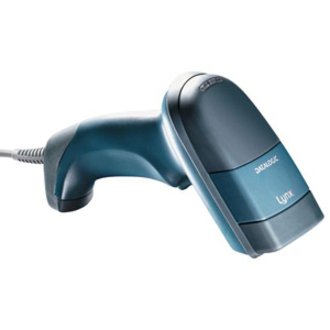

Datalogic Lynx – Barcode Scanner – 1D

Part Number: 901601040
Model: Lynx
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

Scanner Capability
1D

Product Description:

  D432 imager, RS-232 and Keyboard Wedge interfaces. Power supply and cables not included.
Explore all Datalogic Lynx Barcode Scanners
Add to Quote
Datalogic 901601040 Barcode Scanner
Datalogic 901601040 Barcode Scanner
Datalogic 901601040 Barcode Scanner
Datalogic 901601040 Barcode Scanner
Datalogic 901601040 Barcode Scanner Datalogic 901601040 Barcode Scanner Datalogic 901601040 Barcode Scanner Datalogic 901601040 Barcode Scanner
Full specifications (PDF)

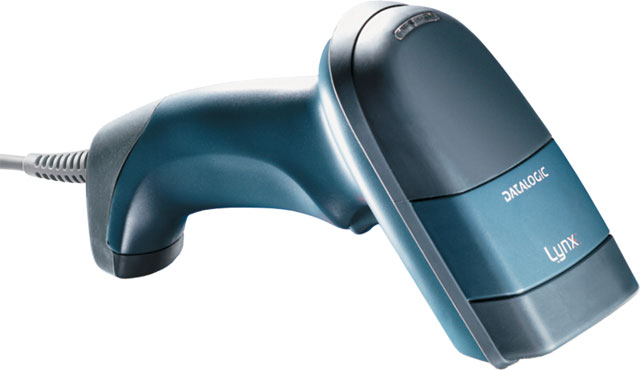

Datalogic Lynx Barcode Scanner Model Overview

The Datalogic Lynx is the latest addition to the Datalogic 2D scanning family. The Lynx is available in both standard and high-resolution modes, allowing perfect scans of linear barcodes as well as image capture for signatures and OCR needs. A five-point aimer lets the user know precisely where the scanner is aimed, eliminating the need for second or third scans. The Lynx is available in USB, RS232 and keyboard wedge configurations.
Datalogic 901601040 Barcode Scanner Overview

The Lynx D432 area imaging scanners feature omni-directional scanning support for most popular 1D, 2D, stacked and postal codes. This auto-discrimination of a wide array of linear and 2D codes along with image capture and intuitive aiming make the Lynx hard to beat. The ease of use is further enhanced by the scanner's multi-standard interface.

Full specifications (PDF)
Technical Information
Connectivity Technology:
Cable
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:
  • Interleaved 2 of 5
  • Code 39
  • Code 128
  • EAN-128
  • Code 93
  • UPC/EAN/JAN
  • Codabar
  • PDF 417
  • DataMatrix
  • QR Code
  • Postnet
  • Royal Mail Code (RM4SCC)
  • PLANET
  • Japanese Post
  • Australian Post
  • Kix
Light Source:
Laser
Image Sensor Type:
Imager
Maximum Scan Resolution:
6.60 mil
Scan Pattern:
Omni-directional
Interfaces/Ports
Host Interface:
Multi-interface
Physical Characteristics
Form Factor:
Handheld
Height:
8"
Width:
2.7"
Depth:
4.6"
Weight (Approximate):
9.28 oz
Miscellaneous
Additional Information:

Supported Interfaces:

  • RS232
  • Keyboard Wedge
  • USB

USB Cable separate

Certifications & Standards:

Laser Classification:

  • Class 2 (IEC 825-1 and CDRH)
Warranty
Limited Warranty:
2 Year
Item Numbers
UNSPSC: 43211701
