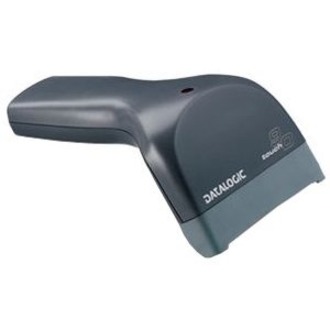

Datalogic 901451013 Barcode Scanner

Datalogic TD1130-BK-90 Barcode Scanner A newer version of this item is available.
It is replaced by the Datalogic TD1130-BK-90 Barcode Scanner.
Datalogic Touch - Touch 90 Pro Contact scanner. USB, RS232, Keyboard wedge interfaces. Cable not included, See Accessories.
  • Creates a high ROI because of diminishment in workforce and descend inventory errors
  • Scan barcodes with a staggering speed of 256 scan/s
  • Allows productive and precise reading of 1D barcodes
  • Laser-free design provides high-performance scanning without the risk of eye injury
  • Perfect for applications that require direct association with a workstation or a notebook
Read More
Discontinued See Replacement
Add to Quote

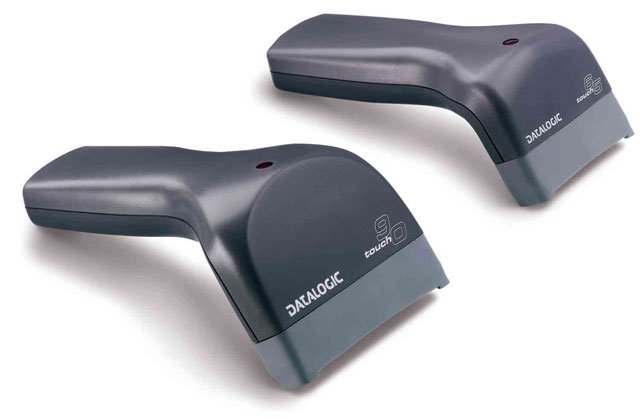

Datalogic Touch Barcode Scanner Model Overview
The Datalogic Touch contact reader is a cost-effective and high-performance scanner that features multiple interfaces. The Touch scans 256 times per second making it quick even when reading damaged codes. The Touch has a choice for every application: the Touch 65 features improved resolution while the Touch 90 features a wider scan area. Both use "Puzzle Solver" technology to combine and decode partial data from multiple scans, increasing the speed of successful results. The Pro EAS version features Electronic Article Surveillance (EAS) technology which allows scanning and EAS label deactivation in one step.
Datalogic 901451013 Barcode Scanner Overview

The TOUCH90-PRO Linear Imager contact readers represent the ideal product whenever a cost-effective solution is required, without compromising reading performance and product quality. Touch 90 Pro provide a complete all in one multi-interface solution, including RS-232, USB, Wedge and Pen emulation while Touch 90 Light provides USB or PS2 wedge and RS-232 single models. A scan rate of 256 scans/sec guarantees outstanding performance in terms of reading promptness, especially on poorly printed or damaged codes, where several decoding. Datalogic Scanning, the global manufacturer of Linear Imager and Laser bar code readers, offers a wide range of Hand-Held products particularly suited for Document Handling and Retail applications.

Technical Information
Connectivity Technology:
Cable
Scanning Capability:
1D
Barcode Symbology Supported:
  • Code 39
  • Code 32
  • Industrial 2 of 5
  • Code 128
  • EAN-128
  • Codabar
  • ISBN/ISSN
  • Code 93
  • ISBT 128
  • MSI
  • EAN/UPC
  • Code CIP 39
  • Telepen
  • Code 11
  • Code 16K
  • Code 49
  • GS1 Databar
  • Delta IBM
  • Interleaved 2 of 5
Light Source:
LED
Image Sensor Type:
Linear
Scan Rate:
256 scan/s
Maximum Scan Resolution:
5 mil
Interfaces/Ports
Host Interface:
Multi-interface
Physical Characteristics
Form Factor:
Handheld
Height:
6.9"
Width:
3.9"
Depth:
3.1"
Weight (Approximate):
6.88 oz
Miscellaneous
Additional Information:

Interfaces Supported:

  • USB
  • RS232
  • Wedge

USB Cable separate

Warranty
Limited Warranty:
5 Year
Item Numbers
GTIN: 5051964439745
EAN: 5051964439745
UNSPSC: 43211701
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Datalogic 901451013 Barcode Scanner is also known as DTL-901451013 or 901451013.
