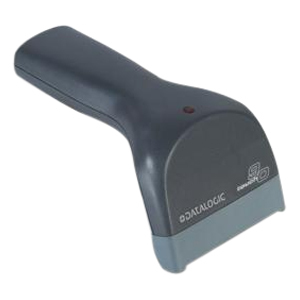

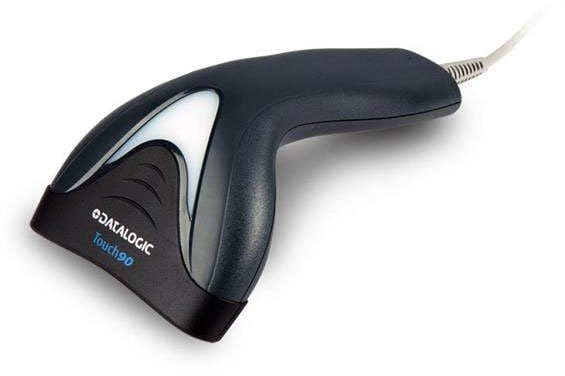

Datalogic TD1130-BK-90 Barcode Scanner

Datalogic Touch TD1130 90 Pro - Corded Barcode Scanner, Datalogic Touch TD1130 90 Pro, 1D Linear Imager, General Purpose, Handheld, Multi-Interface Connection, SCANNER ONLY, Black
  • Wide reading windows: 6.5 cm / 2.6 in and 9.0 cm / 3.5 in
  • Excellent reading performance on damaged or
  • poorly printed bar codes
  • Interface options: USB or Keyboard Wedge / RS-232 (65/90 Lite); USB / RS-232 / Keyboard Wedge / Wand Emulation (65/90 Pro)
  • Supports GS1 DataBarTM linear codes

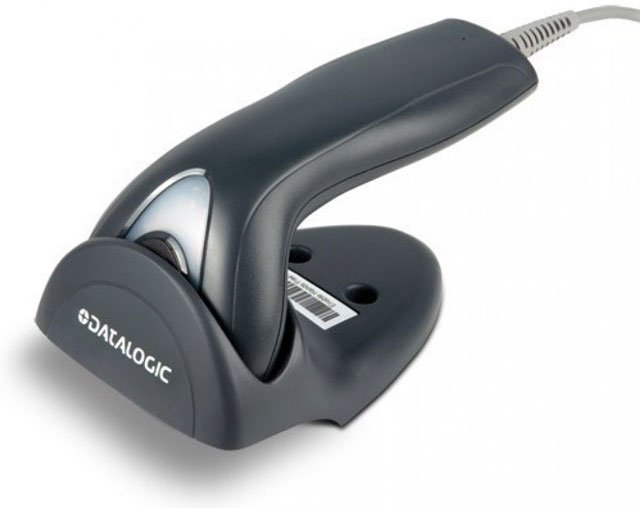

  • Compact and innovative 'read-thru' holder for hands-free reading capability
  • Drop Resistance to 1.5 m / 5.0 ft
  • EASEOFCARE Service Plans offer a wide range of service options to protect your investment, ensuring maximum productivity and ROI
Read More
$114.11
Recommended TrueSupport Coverage (/mo.)
Quantity Unit Price Discount
2 $112.97 1% OFF
5 $110.69 3% OFF
Add to Quote
Datalogic TD1100 Barcode Scanner Model Overview
The Touch TD1100 series of linear imaging contact readers represents Datalogic's solution for customers who require a cost-effective solution for close-contact bar code reading without sacrificing quality or performance. Designed for low throughput applications within multiple markets, the Touch TD1100 readers provide the guarantee of contact reading with an excellent reading capability on virtually all linear bar codes, including damaged or poorly printed codes. Small, lightweight and low on energy consumption, the Datalogic Touch TD1100 readers continue to provide robustness with a 1.5 m / 5.0 ft drop resistance, which is typical of higher range products.
Datalogic TD1130-BK-90 Barcode Scanner Overview

The Touch™ TD1100 series of linear imaging contact readers represent the Datalogic ADC solution for customers who require a cost-effective solution for close contact bar code reading without sacrificing quality and performance.

Designed for low throughput applications within multiple markets, the Touch TD1100 readers provide the guarantee of contact reading with an excellent reading performance on virtually all linear bar codes, including damaged or poorly printed codes.

Technical Information
Connectivity Technology:
Cable
Scanning Capability:
1D
Barcode Symbology Supported:

1D / Linear Codes:

  • Autodiscriminates all standard 1D codes including GS1 DataBar linear codes

Stacked Codes:

  • GS1 DataBar Expanded Stacked
  • GS1 DataBar Stacked
  • GS1 DataBar Stacked Omnidirectional
Image Sensor Type:
  • Imager
  • Linear
Maximum Scan Resolution:
4 mil
Depth of Field:
  • 0" - 3.2"@7.5mil - Code 39
  • 0" - 4.7"@10mil - Code 39
  • 0" - 6"@13mil - EAN13
Scan Pattern:
Omni-directional
Interfaces/Ports
Host Interface:
Multi-interface
Physical Characteristics
Form Factor:
Handheld
Product Color:
Black
Height:
6.7"
Width:
2.7"
Depth:
4.1"
Weight (Approximate):
5.40 oz
Miscellaneous
Additional Information:

USB Cable separate

Country of Origin:
Vietnam
Item Numbers
GTIN: 0783555035788, 4052923206379, 5711045924132
UPC: 783555035788
EAN: 0783555035788, 4052923206379, 5711045924132
UNSPSC: 43211701
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Datalogic TD1130-BK-90 Barcode Scanner is also known as DTL-TD1130-BK-90
