Datacard 507428-009 ID Card Printer

Part Number: 507428-009
Model: SD460
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Recommended Use
Card Print
Print Color Capability
Color
Printing Capability
Double Sided
Maximum Color Print Speed
174 Second

Product Description:

  Datacard SD460 Card Printer (Duplex, 100-Card Input Hopper, Mag, Smart Card Contact/Co)
Explore all Datacard SD460 ID Card Printers
Add to Quote
Datacard 507428-009 ID Card Printer
Datacard 507428-009 ID Card Printer
Datacard 507428-009 ID Card Printer
Datacard 507428-009 ID Card Printer
Datacard 507428-009 ID Card Printer
Datacard 507428-009 ID Card Printer Datacard 507428-009 ID Card Printer Datacard 507428-009 ID Card Printer Datacard 507428-009 ID Card Printer Datacard 507428-009 ID Card Printer
Full specifications (PDF)

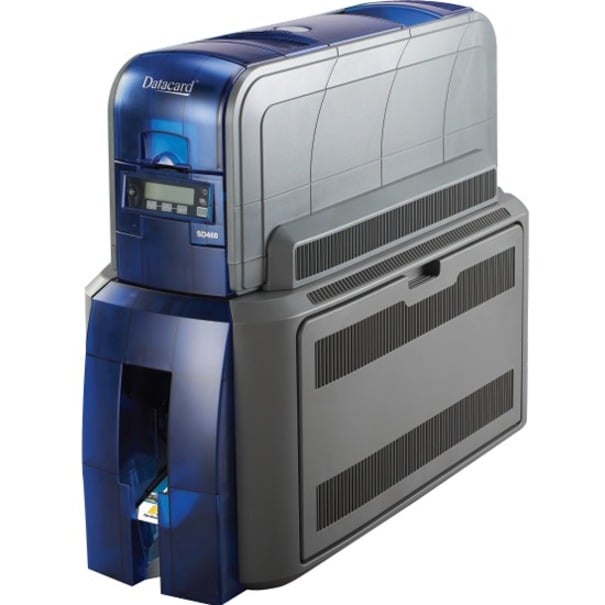

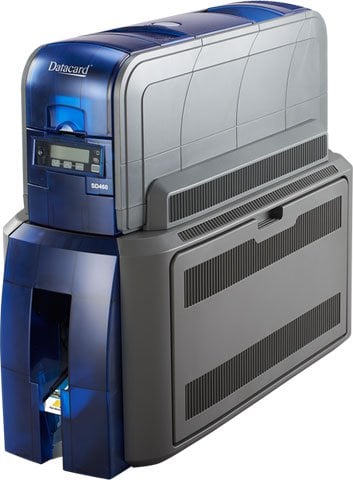

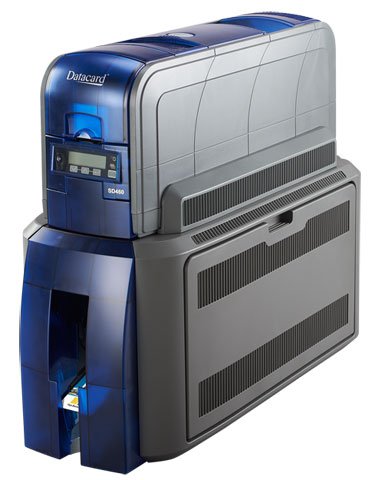

Datacard SD460 ID Card Printer Model Overview

The Datacard® SD460™ Card Printer elevates your card issuance program with cutting-edge technology designed for enhanced security and efficiency. With a patent-pending tactile impression feature that creates a visible and touchable tamper-evident mark, this printer ensures the utmost protection while delivering a rapid throughput of up to 200 cards per hour. Ideal for enterprises concerned with securing identification, the SD460 comes equipped with advanced durability features, an integrated lamination option, and customizable designs to elevate your brand while streamlining your card printing operations.

Key features:
  • Patent-pending tactile impression for improved security
  • Fast printing speed of up to 200 cards/hour
  • Cost-effective durability with DuraShield™ overlays
  • Inline card debow feature to flatten cards post-lamination
  • Compatible with contact and contactless smart chips
  • Open platform for seamless integration


Specifications:
  • Print Technology: Direct-to-card dye-sublimation/resin thermal transfer
  • Print Resolution: 300 dots per inch, 256 shades per color panel
  • Print and Lamination Speed:
    • Up to 200 cards/hour with front side YMCK ribbon
    • Up to 175 cards/hour with front and back side lamination
  • Card Capacity: 100-card input, 1-card manual feed
  • Dimensions: 23.2 in. x 10.6 in. x 20.2 in.
  • Weight: 29.92 lbs (without lamination)
  • Connectivity: USB 2.0, Ethernet 10 Base-T/100-Base-TX
  • Warranty: 30 Months Standard Depot Warranty
Datacard 507428-009 ID Card Printer Overview

As counterfeiting and alteration attempts have grown more sophisticated, so have the card security features that let you easily verify identity and authenticity. The Datacard® SD460™ card printer delivers everything you need to increase the security and durability of your ID cards. With this reliable, all-in-one printer, encoder and laminator, you can add unique personalization features and secure overlays to help resist fraud. Plus, you can produce cards that last longer, helping you avoid costly re-issuance.

Full specifications (PDF)
Technical Information
Recommended Use:
Card Print
Print Color Capability:
Color
Printing Capability:
Double Sided
Maximum Color Print Speed:
174 Second
Maximum Print Resolution:
300 dpi
Encoding Technology:
  • Contact Smart Card Encoder
  • Contactless Smart Card Encoder
Application/Usage:
Desktop
Features:
Smart Card Reader
Interfaces/Ports
USB:
Yes
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Fast Ethernet
Display & Graphics
Display Screen:
Yes
Display Screen Type:
LCD
Media Types & Handling
Media Type:
Card
Media Handling:
  • 1 x Input Hopper 100 Card
  • 1 x Output Hopper 100 Card
  • 1 x Reject Hopper 10 Card
Physical Characteristics
Height:
23.2"
Width:
10.6"
Depth:
20.2"
Weight (Approximate):
29.92 lb
Miscellaneous
Platform Supported:
PC
