Datacard 506339-001 ID Card Printer

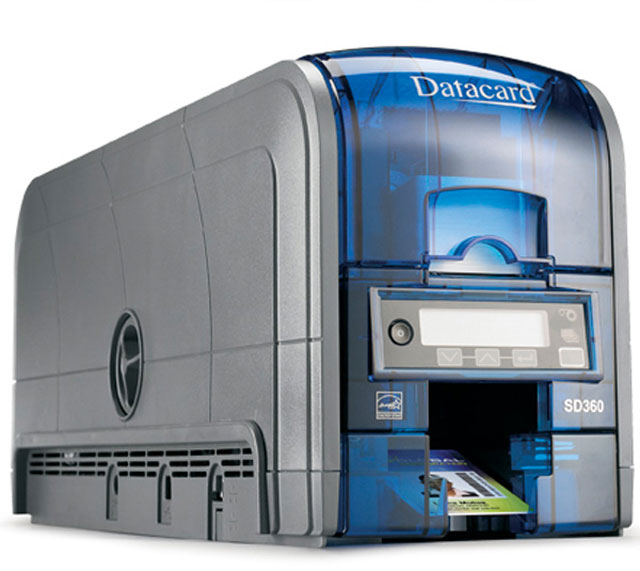

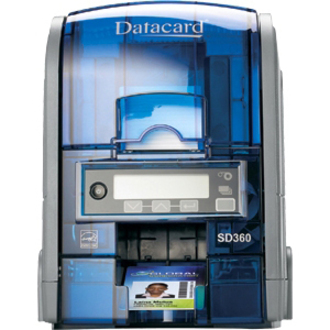

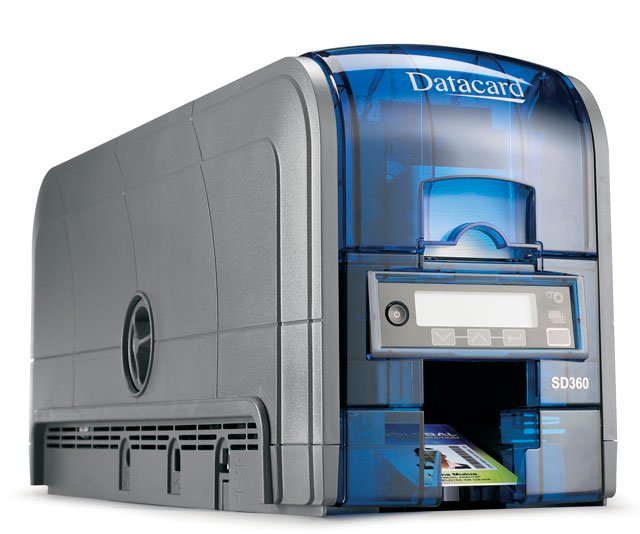

Datacard SD360 ID Card Printer Model Overview

The Datacard SD360 is packed with industry-leading innovations that make desktop ID card printing simple and economical. The SD360 are ideal for small to medium sized businesses, schools, hospitals, fitness clubs and anyone who prints ID cards as part of their busy workday. With the SD360 you are able to print more cards in less time and is significantly faster than any other desktop card printers in their class. The TruePick, anti-jam card handling accurately picks cards, standard and thin, with no adjustments. The SD360 also features the new TrueMatch printing technology which ensures the colors on your screen closely match the colors on your card. Batch after batch, you get consistently crisp, clean printing results from the first card to the last. The Datacard SD360 also allows for easy operation that anyone can master. Intuitive icons guide you through the soft-touch control panel and LCD screen. Cards and supplies are easy to load, and the ergonomically designed ribbon cartridge includes a drop-in cleaning roller.

Datacard 506339-001 ID Card Printer Overview

Bring even more value to your desktop with the Datacard® SD360™ card printer. Increase productivity and save work time by issuing secure, two-sided ID cards and badges with this best-in-class card printer. Ideal applications include small- to medium-sized businesses, schools, clubs and hospitals.

Detailed Specs

Full specifications (PDF)

Technical Information

Recommended Use:

Card Print

Print Color Capability:

Color

Maximum Mono Print Speed:

4.3 Second

Maximum Color Print Speed:

18 Second

Maximum Print Resolution:

300 dpi

Maximum Print Width:

2.13"

Application/Usage:

Desktop

Memory

Standard Memory:

128 MB

Interfaces/Ports

USB:

Yes

Network & Communication

Ethernet:

Yes

Ethernet Technology:

Fast Ethernet

Display & Graphics

Display Screen:

Yes

Display Screen Type:

LCD

Media Types & Handling

Media Type:

PVC Card
Adhesive Backed Card

Media Size:

3.37" x 2.13" - ID-1 Card
3.37" x 2.13" - CR-80 Card

Media Handling:

1 x Input Hopper 100 Card
1 x Output Hopper 25 Card

Media Load Type:

Auto Feed

Media Thickness:

37 mil

Power Description

Power Source:

AC Supply

Input Voltage:

110 V AC
220 V AC

Physical Characteristics

Height:

8.8"

Width:

6.9"

Depth:

21.2"

Weight (Approximate):

12 lb

Miscellaneous

Package Contents:

SD360 Card Printer Dual Sided
Driver CD
Quick Install Guide and Warranty
Free ID Works Intro Identification Software
Cleaning Pen
Cleaning Roller Spindle
USB Cable
Power Supply
Power Cord

Cables Included:

USB

Power Adapter Included:

Yes

Platform Supported:

PC

Certifications & Standards:

cULus
FCC
I.C.
CE
Ctick
VCCI
CCC
KCC

Energy Star:

Yes

Environmentally Friendly:

Yes

Environmental Certification:

ENERGY STAR
RoHS
WEEE

Warranty

Limited Warranty:

30 Month

Item Numbers

GTIN: 0097588560019, 0632930911301, 4056572877911, 5054484593522, 5711783206224

UPC: 097588560019, 632930911301

EAN: 0097588560019, 0632930911301, 4056572877911, 5054484593522, 5711783206224

UNSPSC: 43212103
