Full specifications (PDF)
Application/Usage:
Data Networking
D-Link DEM-311GT Data Networking
Part Number:
DEM-311GT
Model:
DEM-311GT
D-Link DEM-311GT Data Networking Model Overview
D-Link's Gigabit Interface Converters represent the pinnacle of performance and reliability for your networking needs. Ideal for both business and enterprise solutions, these SFP transceivers are designed to seAMLessly integrate with various devices, providing options for singlemode and multimode connections. Each transceiver features a durable metal enclosure that minimizes EMI, ensuring consistent and effective data transmission. With support for hot plug capability and a standard 2-year warranty, you can trust these transceivers to enhance your networking infrastructure with newfound efficiency and flexibility.
Key features:
Specifications:
Key features:
- High Performance: Delivers exceptional data transfer rates for both multimode and singlemode applications.
- Standard Compliant: Meets industry standards for interoperability with multiple vendor devices (excluding DEM-312GT2).
- Warranty and Support: Includes a 2-year warranty and free technical support for peace of mind.
- Hot Pluggable: Easily replaceable without disrupting network operations.
- Metal Enclosure: Reduces EMI and enhances durability.
Specifications:
- Optical Receiver Sensitivity:
- DEM-310GT: -20dBm (max)
- DEM-311GT: -18dBm (max)
- DEM-312GT2: -18dBm (max)
- DEM-314GT: -22dBm (max)
- DEM-315GT: -22dBm (max)
- Interface Options:
- Connector Type: LC
- Operational Ranges: 3.1-3.5V
- Physical Dimensions:
- Size: 1.19 x 0.47 x 2.25 in (3.02 x 1.19 x 5.71 cm)
D-Link DEM-311GT Data Networking Overview
D-Link's new line of Gigabit Interface Converters (GBICs) and Small Form-Factor Pluggables (SFPs) transceivers represent an industry leading combination of performance and affordability. D-Link's new Gigabit transceivers are available in two form-factors: standard (GBIC) or (SFP)/mini-GBIC.

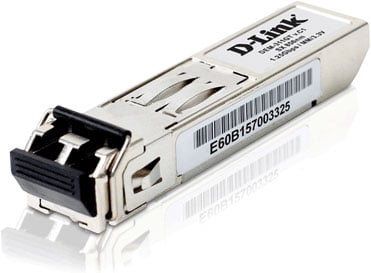

The DEM-311GT is a high performance 850nm multimode SFP/mini-GBIC transceiver. Supporting full duplex, Gigabit speeds on multimode fiber for distances of up to 220m/550m on 62.5µm/50µm fiber respectively. The unit features a metal housing to reduce EMI and to increase durability. The DEM-311GT is hot pluggable and is backed by a standard 3-year product warranty and free technical support.
The DEM-311GT is a high performance 850nm multimode SFP/mini-GBIC transceiver. Supporting full duplex, Gigabit speeds on multimode fiber for distances of up to 220m/550m on 62.5µm/50µm fiber respectively. The unit features a metal housing to reduce EMI and to increase durability. The DEM-311GT is hot pluggable and is backed by a standard 3-year product warranty and free technical support.
Technical Information
Interfaces/Ports
Total Number of Ports:
1
Connector Type:
LC
Interfaces/Ports Details:
1 x LC 1000Base-SX
Media & Performance
Media Type Supported:
Optical Fiber
Fiber Mode Supported:
Multi-mode
Ethernet Technology:
Gigabit Ethernet
Network Technology:
1000Base-SX
Maximum Distance Supported:
0.55 km
Physical Characteristics
Height:
2.3"
Width:
1.2"
Depth:
0.5"
Miscellaneous
Certifications & Standards:
- IEEE 802.3z
Class 1 Laser: - EN 60825-1
FDA 21: - 1040.10 & 1040.11
Country of Origin:
Taiwan
Warranty
Limited Warranty:
2 Year
Additional Warranty Information:
Subject to the terms and conditions set forth herein, D-Link Systems, Inc. ("D-Link") provides this Limited warranty for its product only to the person or entity that originally purchased the product from: - D-Link or its authorized reseller or distributor and - Products purchased and delivered within the fifty states of the United States, the District of Columbia, U.S. Possessions or Protectorates, U.S. Military Installations, addresses with an APO or FPO.
D-Link's sole obligation shall be to repair or replace the defective Hardware during the Warranty Period at no charge to the original owner or to refund at D-Link's sole discretion. Such repair or replacement will be rendered by D-Link at an Authorized D-Link Service Office. The replacement Hardware need not be new or have an identical make, model or part. D-Link may in its sole discretion replace the defective Hardware (or any part thereof) with any reconditioned product that D-Link reasonably determines is substantially equivalent (or superior) in all material respects to the defective Hardware. Repaired or replacement Hardware will be warranted for the remainder of the original Warranty Period from the date of original retail purchase. If a material defect is incapable of correction, or if D-Link determines in its sole discretion that it is not practical to repair or replace the defective Hardware, the price paid by the original purchaser for the defective Hardware will be refunded by D-Link upon return to D-Link of the defective Hardware. All Hardware (or part thereof) that is replaced by D-Link, or for which the purchase price is refunded, shall become the property of D-Link upon replacement or refund.
Item Numbers
GTIN:
0009006924815, 0600920966761, 0790069248153, 0790069338519, 0818219119099, 0849064005237, 0854432517359, 5051749523737, 5055989747083, 7900692481534
UPC:
009006924815, 600920966761, 790069248153, 790069338519, 818219119099, 849064005237, 854432517359
EAN:
0009006924815, 0600920966761, 0790069248153, 0790069338519, 0818219119099, 0849064005237, 0854432517359, 5051749523737, 5055989747083, 7900692481534
UNSPSC:
43201553
