Full specifications (PDF)
Application/Usage:
- Data Networking
- Optical Network
D-Link DEM-310GT Data Networking
Part Number:
DEM-310GT
Model:
DEM-310GT
D-Link DEM-310GT Data Networking Model Overview

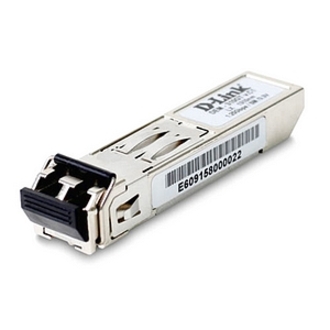

The D-Link DEM-310GT is a high performance 1310nm multimode/Singlemode SFP (mini-GBIC) transceiver. Supporting full duplex, Gigabit speeds on multimode/Singlemode fiber for distances of up to 550m/550m/10km on 62.5m/50m/9m respectively. The DEM-310GT features a metal housing to reduce EMI and to increase durability. The DEM-310GT is also hot pluggable and is backed by a standard 2-year product warranty and free technical support.
D-Link DEM-310GT Data Networking Overview
The DEM-310GT is a high performance 1310nm multimode/Singlemode SFP (mini-GBIC) transceiver. Supporting full duplex, Gigabit speeds on multimode/Singlemode fiber for distances of up to 550m/550m/10km on 62.5µm/50µm/9µm respectively. The unit features a metal housing to reduce EMI and to increase durability.
Technical Information
Interfaces/Ports
Total Number of Ports:
1
Connector Type:
LC
Interfaces/Ports Details:
1 x LC Duplex 1000Base-LX Network
Media & Performance
Media Type Supported:
Optical Fiber
Fiber Mode Supported:
- Multi-mode
- Single-mode
Ethernet Technology:
Gigabit Ethernet
Network Technology:
1000Base-LX
Maximum Distance Supported:
0.55 km
Power Description
Input Voltage:
- 3.5 V DC
- 6 V DC
Input Current:
300 mA
Physical Characteristics
Form Factor:
Hot-pluggable
Height:
2.3"
Width:
1.2"
Depth:
0.5"
Miscellaneous
Additional Information:
- Optical Receiver Sensitivity: -20dBm (Max)
- Wavelength: 1310nm
Compatibility:
- DGS-1210-08P
- DGS-1210-10
- DGS-1210-10P
- DGS-1210-20
- DGS-1210-24P
- DGS-1210-28
- DGS-1210-28MP
- DGS-1210-28P
- DGS-1210-48
- DGS-1210-52
- DGS-1210-52MP
- DGS-1210-52P
Certifications & Standards:
- IEEE 802.3z: 1000Base-LX
Safety Certifications and Environmental Information:
- Class 1 Laser: N 60825-1
- FDA 21: 1040.10 & 1040.11
Country of Origin:
China
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN:
0790069248146, 0790069251238, 0806291813332, 7900692481466
UPC:
790069248146, 790069251238, 806291813332
EAN:
0790069248146, 0790069251238, 0806291813332, 7900692481466
UNSPSC:
43201404
