Custom America SCANMATIC 2D Barcode Scanner – Barcode Scanner – Cable Only

Part Number: 995ED044100333
Model: SCANMATIC 2D Barcode Scanner
3-year Premium Plus ($54.70)
No, stay at premium support package
Add to My Shopping List Add to Compare
$214.86
In Stock

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Connectivity Technology
Cable
Scanning Capability
1D2D
Barcode Symbology Supported
1D : UPC-A, UPC-E EAN-8/JAN-8 EAN-13/JAN-13 Code 39 Code 128 Interleaved 25 Industrial 25 Matrix 25 Codabar/NW7 Code 93 China Post MSI/Plessey Telepen GS1 Databar Omni-directional GS1 Databar Limited GS1 Databar Expended2D: Data Matrix PDF 417 QR Code Micro PDF 417 Micro QR Code Aztec Dotcode Maxi Code Han Xin Code
Light Source
LED

Product Description:

  Barcode Scanner, Custom America SCANMATIC 2D Barcode Scanner, SM600 Scanmatic Presentation Scanner
Explore all Custom America SCANMATIC 2D Barcode Scanners
Add to Quote
Custom America 995ED044100333 Barcode Scanner
Custom America 995ED044100333 Barcode Scanner
Custom America 995ED044100333 Barcode Scanner
Custom America 995ED044100333 Barcode Scanner
Custom America 995ED044100333 Barcode Scanner
Custom America 995ED044100333 Barcode Scanner Custom America 995ED044100333 Barcode Scanner Custom America 995ED044100333 Barcode Scanner Custom America 995ED044100333 Barcode Scanner Custom America 995ED044100333 Barcode Scanner
Full specifications (PDF)

Custom America SCANMATIC 2D Barcode Scanner Model Overview

The CUSTOM® SCANMATIC SM420 is a cutting-edge 2D professional barcode scanner designed for superior speed, ease of use, and accuracy. With a sleek, rugged housing featuring IP42 protection, this scanner assures exceptional performance in various environments. Its hands-free operation is facilitated by an optional stand, allowing for “intelligent activation” that automatically scans barcodes as they are presented. Experience unmatched reading speed as the SCANMATIC SM420 eliminates the need for aligning codes, making barcode scanning more efficient and reliable than ever.


Key Features:

  • Easy installation thanks to pre-setting
  • Excellent reading performance in low-light conditions
  • IP42 protection against dust and moisture
  • Optional hands-free stand for added convenience
  • Automatic detection with intelligent activation technology

Specifications:

  • Interfaces: USB/RS232
  • Supported Barcodes:
    • 1D: UPC-A, UPC-E, EAN-8, EAN-13, Code 39, Code 128, Interleaved 25, and more
    • 2D: Data Matrix, QR Code, PDF 417, and more
  • Optical Sensor: CMOS sensor
  • Scan Speed: 60 fps (at full resolution)
  • Operating Temperature: 0°C to 50°C (32°F to 122°F)
  • Power Supply: 9V RS232, 5V USB
  • Drop Resistance: 180 cm
  • Dimensions: 73.50 mm (W) x 173 mm (L) x 76.2 mm (H)
  • MTBF: 50,000 hours
Custom America 995ED044100333 Barcode Scanner Overview

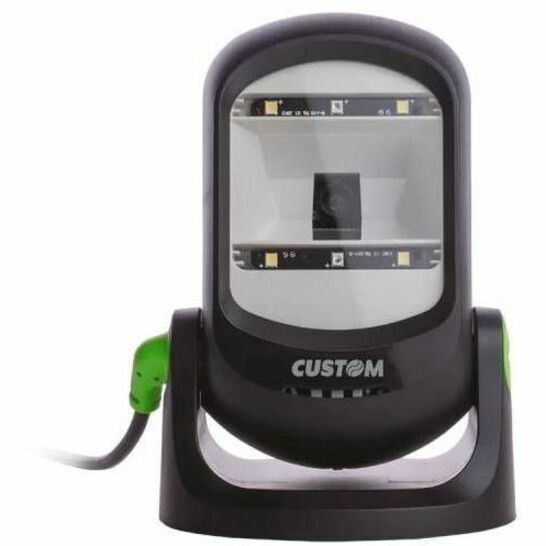

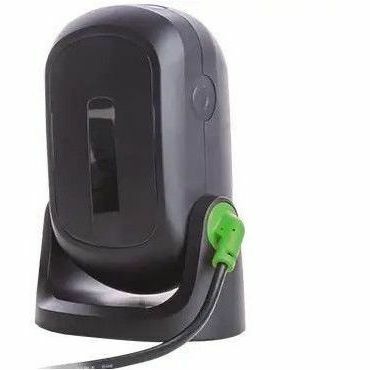

SM600 is a compact and omni-directional Imaging Presentation Scanner. Its revolutionary imaging technology is housed in an elegant, stylish, yet durable design. The compact size and small footprint makes it the ideal solution for space-constrained environments. With SM600, you get the versatility to scan 1D or 2D barcodes, including labels, coupons, gift cards, loyalty cards, boarding passess and even theater or cinema tickets. SM600 guarantees intuitive and fast reading performance thanks to point-and-shoot scanning simplicity with no need to align barcode and scanner.

Full specifications (PDF)
Technical Information
Connectivity Technology:
Cable
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:

1D :

  • UPC-A, UPC-E
  • EAN-8/JAN-8
  • EAN-13/JAN-13
  • Code 39
  • Code 128
  • Interleaved 25
  • Industrial 25
  • Matrix 25
  • Codabar/NW7
  • Code 93
  • China Post
  • MSI/Plessey
  • Telepen
  • GS1 Databar Omni-directional
  • GS1 Databar Limited
  • GS1 Databar Expended

2D:

  • Data Matrix
  • PDF 417
  • QR Code
  • Micro PDF 417
  • Micro QR Code
  • Aztec
  • Dotcode
  • Maxi Code
  • Han Xin Code
Light Source:
LED
Scan Pattern:
Omni-directional
Scanning Distance:
7.87"
Field of View (Horizontal):
-55°
Field of View (Vertical):
-35°
Reading Angle (Skew):
60°
Reading Angle (Pitch):
60°
Reading Angle (Roll):
360°
Maximum Ambient Light:
100000 lux
Drop Specification:

47.24 inches (120 cm) drop on concrete surface

Minimum Element Resolution (Code 39):
3 mil
Maximum Element Resolution (Code 39):
20 mil
Maximum Element Resolution (DataMatrix):
20 mil
Maximum Element Resolution (PDF417):
20 mil
Image Sensor Resolution:
1280 x 800
Interfaces/Ports
Host Interface:
USB
Power Description
Input Current:
310 mA
Standby Current:
90 mA
Environmental Conditions
Operating Temperature:
32°F (0°C) to 122°F (50°C)
Storage Temperature:
-4°F (-20°C) to 158°F (70°C)
Humidity (Non-condensing):
20% to 95%
Physical Characteristics
Form Factor:
Desktop
Color Family:
Black
Product Color:
Black
Product Material:
ABS Plastic
Height:
5.4"
Width:
3.9"
Depth:
2.9"
Weight (Approximate):
11.11 oz
Miscellaneous
Ingress Protection (IP) Rating:
IP42
Country of Origin:
Taiwan
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 0826635717607, 0826635717652
UPC: 826635717607, 826635717652
EAN: 0826635717607, 0826635717652
UNSPSC: 43211701
The Custom America 995ED044100333 Barcode Scanner is also known as CTM-995ED044100333 or 995ED044100333.
