CradlePoint TA5-600CLPE-VNN Data Networking

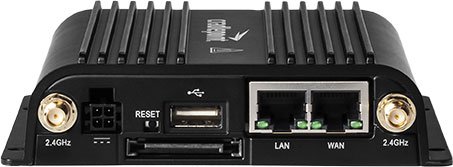

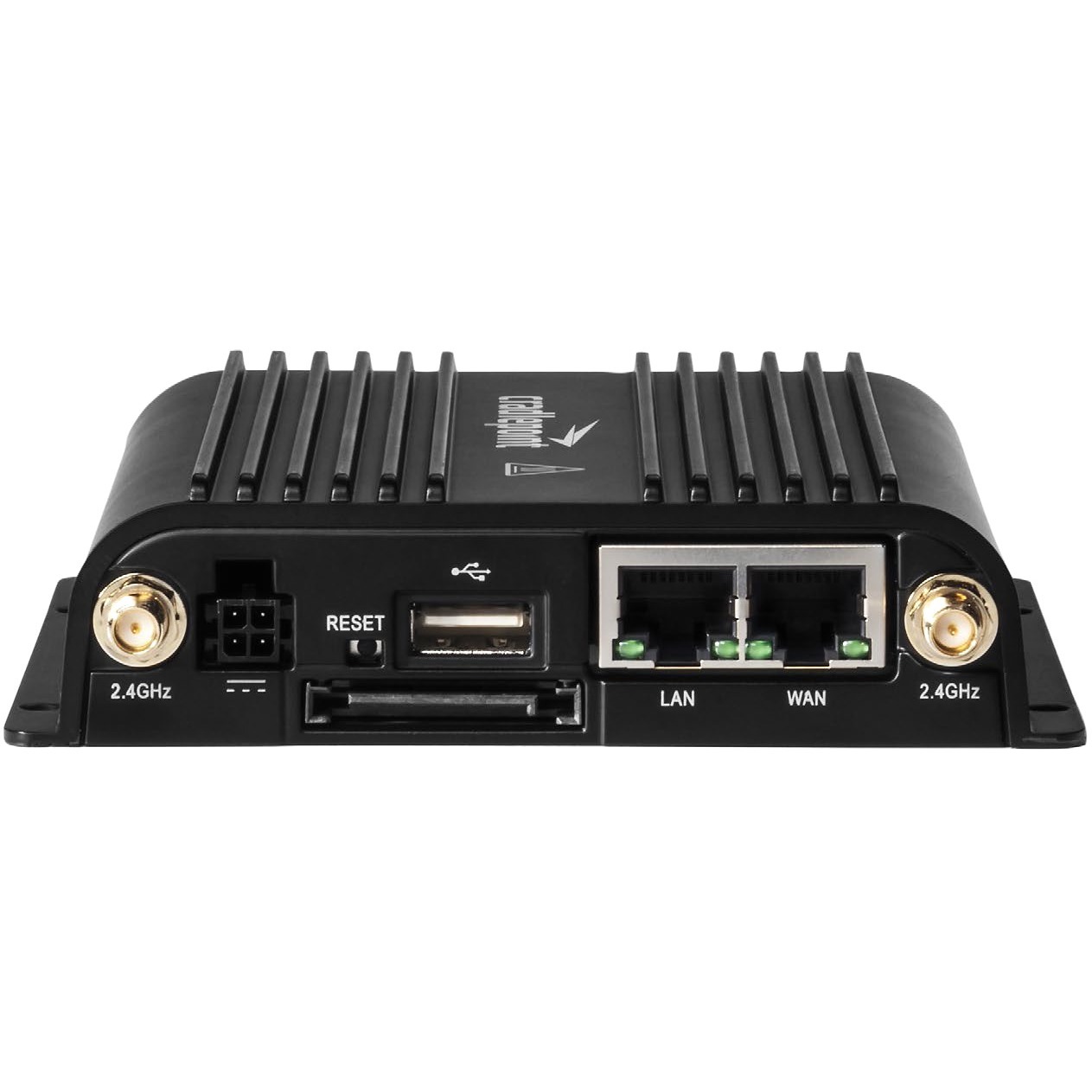

The Cradlepoint COR IBR600C Series routers are semi-ruggedized compact routers with embedded modems that enable wired or wireless WAN connectivity using 4G LTE, 3G EVDO, or HSPA+ for M2M and in-vehicle applications. This cloud-managed routing platform supports Cradlepoint NetCloud Engine and the Extensibility Platform to meet a wide range of fixed and mobile customer connectivity needs.

Embedded cellular modems with multi-carrier software-defined radios support 4G LTE and EVDO fallback on Verizon and Sprint, and HSPA+ fallback on AT&T and T-Mobile in the United States. The IBR600 series has one wired Gigabit Ethernet for WAN and/or LAN connectivity, one 10/100 Ethernet port, and 2.4 GHz WiFi. The IBR600C Series is built to provide excellent reliable connectivity for kiosks, surveillance cameras, and digital signs, as well as Parallel Networking, in-vehicle and other industrial, retail, and M2M applications.

KEY FEATURES

• Embedded 100/50 Mbps Category 3 modem supports Verizon and Sprint with 4G LTE and 3G EVDO fallback
• Multi-carrier software-define radios also support AT&T and T-Mobile with 4G LTE and HSPA+ fallback
• Fully supported in Cradlepoint NetCloud: cloud management, cloud networking
• Semi-ruggedized for industrial and in-vehicle applications
• Extensibility
  • Supports Router SDK and ECM API
  • COR Extensibility Dock
  • Dual-modem support with MC400
  • 2 extra 10/100 Ethernet ports
  • 2×10 connector for extra GPIOs
  • 5 V DC 50 mA sensor power
  • Redundant power supply capable
• Sleep Mode / Ignition Sensing
• Passive GPS (not recommended for vehicle tracking)

Benefits with Enterprise Cloud ManagerINCREASE NETWORK AVAILABILITY

• Multi-carrier software-defined radios support 4G LTE and 3G EVDO and HSPA+ fallback
• Supports Ethernet WAN (T1, DSL, Cable, MetroE), WiFi as WAN, and Metro WiFi
• Dual-modem capability for failover or load balancing
• Create real-time alerts to monitor network availability

DEPLOY & SCALE QUICKLY, MANAGE REMOTELY

• Configure, monitor, and manage remotely: individually or in groups
• Dashboards for at-a-glance network status
• Robust analytics to manage data and usage

• Advanced security, VPN, and stateful firewall to protect sensitive data
• Designed for PCI compliant network architectures
• Cloud-managed security and content filtering (CIPA compliant)
• Build, secure, control, and manage private virtual cloud networks with NetCloud

• Extensibility Dock: add a second modem, FirstNet modem, or custom sensor or radio module
• Router SDK: Support unique applications with custom scripts running on the router
• ECM API: Utilize router data while maintaining single-pane-of-glass network management
