Full specifications (PDF)
Wi-Fi Generation:
Wi-Fi 5
CradlePoint MA5-0900600M-NNA Data Networking
Part Number:
MA5-0900600M-NNA
Model:
IBR900
CradlePoint IBR900 Data Networking Model Overview
NetCloud Solution Packages with the ruggedized IBR900 LTE router are designed to enable secure enterprise-grade networking for mobile networks in police and first responder vehicles, utility and service vans, and anywhere reliable mobile connectivity is required.
CradlePoint MA5-0900600M-NNA Data Networking Overview

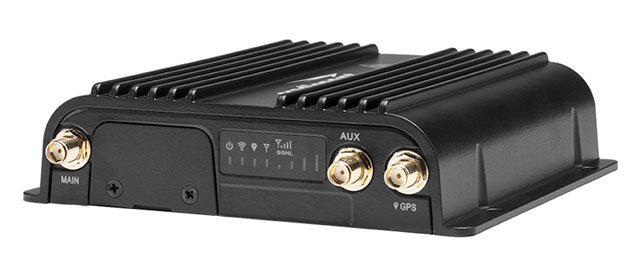

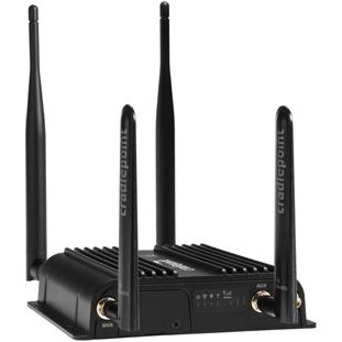

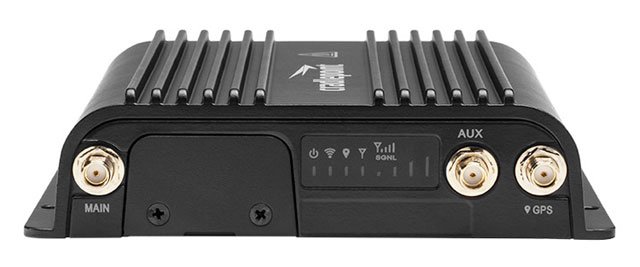

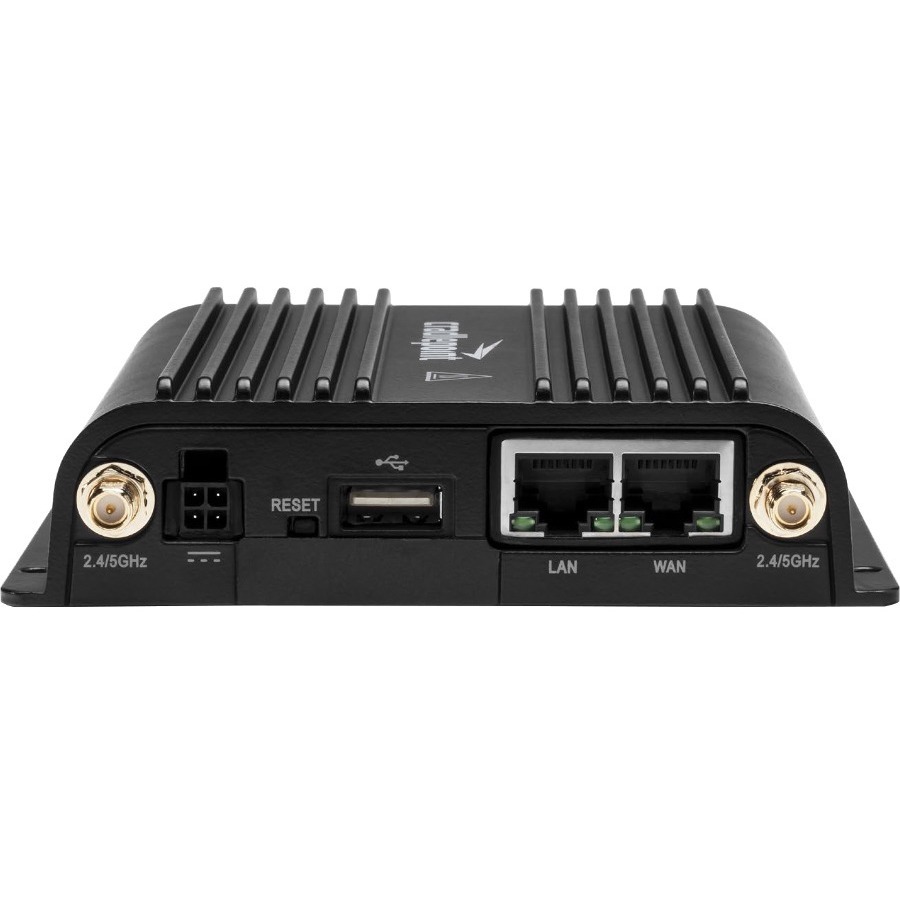

The Cradlepoint COR IBR900 Series is a ruggedized 3G/4G LTE networking platform that is purpose-built to meet the needs of in-vehicle use and can provide connectivity across a broad range of M2M and IoT applications. This cloud-managed routing platform supports Cradlepoint NetCloud Engine and the Extensibility Platform to meet an array of customer connectivity needs and applications.
With an embedded LP6 modem for LTE Advanced with HSPA+ (or LPE modem for EVDO or HSPA+ fallback), Gigabit WiFi, Gigabit Ethernet and a quad-core processor, the IBR900 Series delivers high performance for the most demanding M2M and mobile applications. With Cradlepoint NetCloud OS, remote management, and cloud networking, the IBR900 Series delivers enterprise-grade networking functionality in a compact, ruggedized router.
KEY FEATURES
- Supports carrier aggregation with LTE Advanced and SIM-based auto-carrier selection (LP6 versions)
- Supports carrier switching with software-defined radios (LPE versions)
- Fully supported in Cradlepoint NetCloud: cloud management, cloud networking
- Ruggedized for vibration, shock, dust, splash, and humidity
- Gigabit WiFi (dual-band, dual-concurrent 2.4/5 GHz 802.11 a/b/g/n/ac Wave 2
- Gigabit Ethernet ports
- Supports Extensibility Platform (including COR Extensibility Dock)
- Ignition sensing
- Active GPS support
INCREASE NETWORK AVAILABILITY
- Multi-carrier 3G/4G LTE support with dual-SIM capability
- Supports Ethernet (T1, DSL, Cable, MetroE), WiFi as WAN, and Metro WiFi
- Dual-modem capability for failover or load balancing
- Ruggedized to ensure always-on connectivity
- Monitor uptime with real-time alerts
- Increase speed to deployment with "zero-touch" configuration
- Configure, manage, troubleshoot remotely with Enterprise Cloud Manager
- Create a virtual cloud network in minutes with NetCloud Engine
- Advanced security, VPN, and stateful firewall to protect sensitive data
- Designed for PCI compliant network architectures
- Cloud-managed security and content filtering (CIPA compliant)
- Extensibility Dock: add a second modem, FirstNet modem, or custom sensor or radio module
- Router SDK: Support unique applications with custom scripts running on the router
- ECM API: Utilize router data while maintaining single-pane-of-glass network management
Technical Information
Wireless Specifications
Broadband Transmission Technology:
Cellular
Wireless LAN Standard:
IEEE 802.11ac
ISM Band:
Yes
UNII Band:
Yes
ISM Maximum Frequency:
2.40 GHz
UNII Maximum Frequency:
5 GHz
Cellular Generation:
4G
Cellular Data Connectivity Technology:
- LTE
- HSPA+
Total Wireless Transmission Speed:
37.50 MB/s
Interfaces/Ports
Number of Network (RJ-45) Ports:
2
USB:
No
PoE (RJ-45) Port:
No
Network & Communication
Ethernet Technology:
Gigabit Ethernet
VPN Supported:
Yes
Physical Characteristics
Height:
1.2"
Width:
4.6"
Depth:
4.5"
Weight (Approximate):
14.11 oz
Miscellaneous
Package Contents:
- COR IBR900 Modem/Wireless Router
- Quick Start Guide with warranty information
- 2 x External 3G/4G mobile broadband modem antennas
- 2 x External WiFi antennas
- 12 V / 2 A power supply w/ locking connector; DC GPIO/power cable available
- 2 x Extra SIM door screws
Country of Origin:
Taiwan
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN:
0804879606208, 4973163108592, 4973163110649
UPC:
804879606208
EAN:
0804879606208, 4973163108592, 4973163110649
UNSPSC:
43222609
