Full specifications (PDF)
Wi-Fi Generation:
Wi-Fi 5
CradlePoint MA3-0900NM-0NA Data Networking
Part Number:
MA3-0900NM-0NA
Model:
IBR900

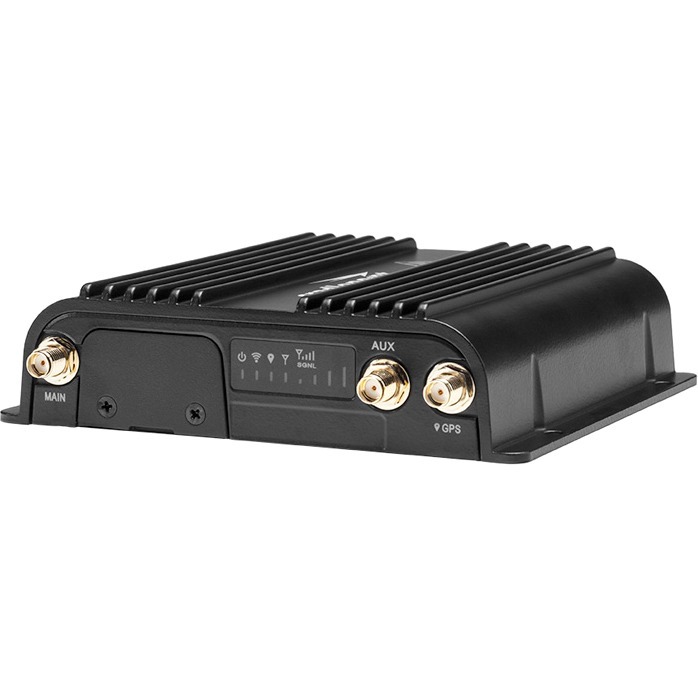

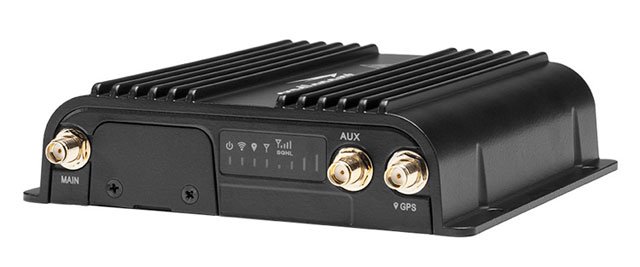

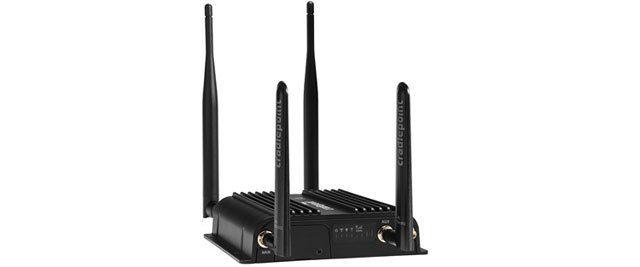

CradlePoint IBR900 Data Networking Model Overview
The Cradlepoint COR IBR900 Series mobile network solution is designed to provide seamless connectivity and robust performance for businesses on the go. This ruggedized router comes equipped with an integrated business-class 3G/4G modem, offering advanced LTE capabilities with speeds up to 600 Mbps. Ideal for various applications, including IoT, remote offices, and mission-critical systems, the COR IBR900 ensures reliable internet access wherever needed. With its user-friendly setup and extensive management options, including the Cradlepoint NetCloud Manager, this solution provides peace of mind while keeping your operations connected.
Key features:
Specifications:
Key features:
- Dual-modem capability with optional COR Extensibility Dock
- Advanced LTE connectivity with speeds up to 600 Mbps
- Dual-band WiFi supporting up to 128 connected devices
- Comprehensive security features, including VLAN and firewall
- Advanced routing options, including IPsec Tunnel and NAT-less routing
Specifications:
- WAN: Integrated 600M LTE Advanced modem

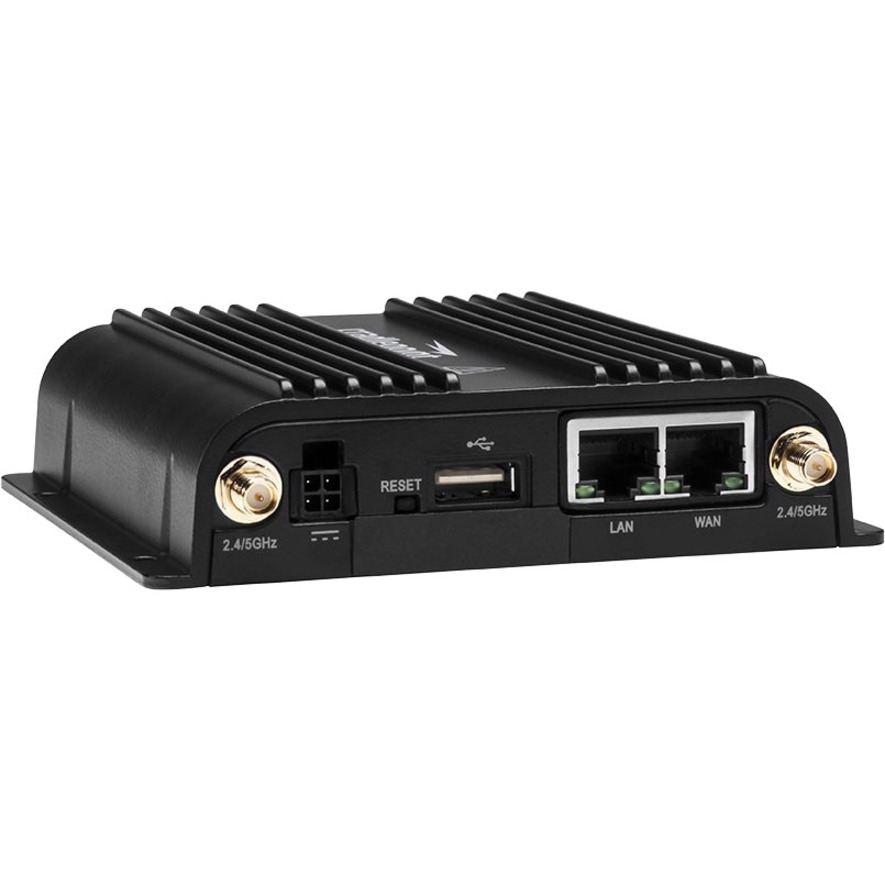

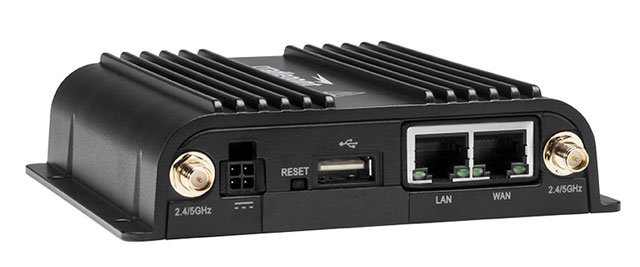

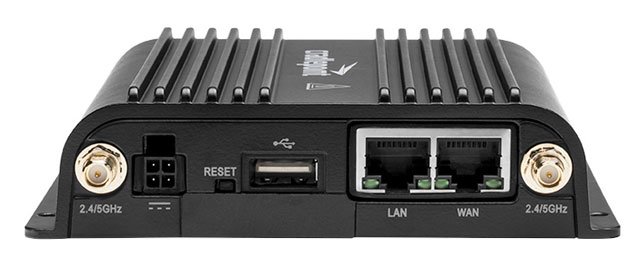

- Ports: Two 10/100/1000 Gigabit Ethernet ports, USB 2.0, GPIO support
- Temperature Range: Operating -30 °C to 70 °C, Storage -40 °C to 85 °C
- Weight: 14 oz (400 g)
- Certifications: FCC, CE, IC, UL/CUL, and others
CradlePoint MA3-0900NM-0NA Data Networking Overview
The Cradlepoint COR IBR900 Series router is a ruggedized Gigabit-Class LTE networking platform that is designed for persistent connectivity across a wide range of in-vehicle applications, including first responders, service and delivery vans, taxi and limo fleets, and nearshore vessels. With the available Gigabit-Class LTE modem, optional second modem, Wave 2 dual-band and dual-concurrent Gigabit WiFi, the IBR900 provides reliable 24x7 connectivity for employees and devices, both inside and outside the vehicle. Mobile networks require strong security for various implementations including on-board public WiFi and cloud application access. Offering multi-zone firewalls, IDS/IPS, Internet security, and FIPS 140-2 certification, Cradlepoint mitigates security risks for mobile networks and users.
Cradlepoint COR IBR900 Series mobile routers are sold in comprehensive NetCloud Solution Packages that include cloud management, purpose-built hardware, 24x7 support, and limited lifetime warranty.
Technical Information
Wireless Specifications
Broadband Transmission Technology:
- Ethernet
- Cellular
Wireless LAN Standard:
IEEE 802.11ac
ISM Band:
Yes
UNII Band:
Yes
ISM Maximum Frequency:
2.40 GHz
UNII Maximum Frequency:
5 GHz
Cellular Data Connectivity Technology:
- LTE Advanced
- DC-HSPA+
- HSPA+
Interfaces/Ports
Number of Network (RJ-45) Ports:
1
USB:
Yes
Number of Broadband (RJ-45) Ports:
1
Network & Communication
Ethernet Technology:
Gigabit Ethernet
VPN Supported:
Yes
Multi-SIM Supported:
No
Number of SIM Card Supported:
1
Physical Characteristics
Form Factor:
Vehicle Mount
Height:
1.2"
Width:
4.6"
Depth:
4.5"
Weight (Approximate):
14 oz
Miscellaneous
Package Contents:
- COR IBR900 Modem/Wireless Router
- Safety, Regulatory, and Warranty Guide
- 1 x 4-Wire Power/GPIO Cable (3 meters)
- 2 x Two Extra SIM Door Screws
Environmentally Friendly:
Yes
Environmental Certification:
- RoHS
- RoHS 2
- WEEE
Country of Origin:
Taiwan
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN:
0804879606161
UPC:
804879606161
EAN:
0804879606161
UNSPSC:
43222609
