Full specifications (PDF)
Wi-Fi Generation:
Wi-Fi 5
CradlePoint MA1-0900600M-NNA Data Networking
Part Number:
MA1-0900600M-NNA
Model:
IBR900

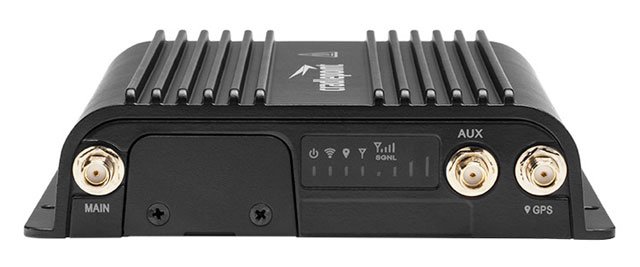

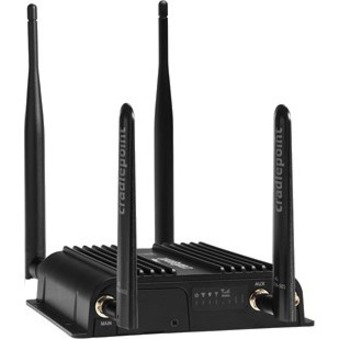

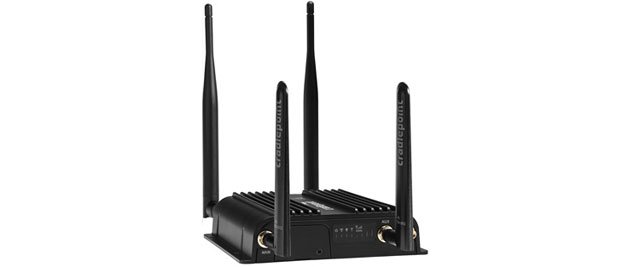

CradlePoint IBR900 Data Networking Model Overview
The Cradlepoint COR IBR900 Series mobile network solution is designed to provide seamless connectivity and robust performance for businesses on the go. This ruggedized router comes equipped with an integrated business-class 3G/4G modem, offering advanced LTE capabilities with speeds up to 600 Mbps. Ideal for various applications, including IoT, remote offices, and mission-critical systems, the COR IBR900 ensures reliable internet access wherever needed. With its user-friendly setup and extensive management options, including the Cradlepoint NetCloud Manager, this solution provides peace of mind while keeping your operations connected.
Key features:
Specifications:
Key features:
- Dual-modem capability with optional COR Extensibility Dock
- Advanced LTE connectivity with speeds up to 600 Mbps
- Dual-band WiFi supporting up to 128 connected devices
- Comprehensive security features, including VLAN and firewall
- Advanced routing options, including IPsec Tunnel and NAT-less routing
Specifications:
- WAN: Integrated 600M LTE Advanced modem
- Ports: Two 10/100/1000 Gigabit Ethernet ports, USB 2.0, GPIO support
- Temperature Range: Operating -30 °C to 70 °C, Storage -40 °C to 85 °C
- Weight: 14 oz (400 g)
- Certifications: FCC, CE, IC, UL/CUL, and others
CradlePoint MA1-0900600M-NNA Data Networking Overview
NetCloud Solution Packages with the ruggedized IBR900 LTE router are designed to enable secure enterprise-grade networking for mobile networks in police and first responder vehicles, utility and service vans, and anywhere reliable mobile connectivity is required.
NetCloud Solution Packages include NetCloud software, a router, and 24x7 support with Limited Lifetime Warranty on hardware.
Upgrade to NetCloud Advanced for additional features such as application traffic analytics, application-aware firewall, and URL content filtering.
Technical Information
Wireless Specifications
Broadband Transmission Technology:
- Cellular
- Ethernet
Wireless LAN Standard:
IEEE 802.11ac
ISM Band:
Yes
UNII Band:
Yes
ISM Maximum Frequency:
2.40 GHz
UNII Maximum Frequency:
5 GHz
Cellular Generation:
4G
Cellular Data Connectivity Technology:
- LTE
- HSPA+
- DC-HSPA+
Number of External Antennas:
2
Total Wireless Transmission Speed:
75 MB/s
Interfaces/Ports
Number of Network (RJ-45) Ports:
1
USB:
Yes
PoE (RJ-45) Port:
No
Number of Broadband (RJ-45) Ports:
1
Network & Communication
Ethernet Technology:
Gigabit Ethernet
VPN Supported:
Yes
Physical Characteristics
Form Factor:
Desktop
Height:
1.2"
Width:
4.6"
Depth:
4.5"
Weight (Approximate):
14 oz
Miscellaneous
Package Contents:
- COR IBR900 Modem/Wireless Router
- Integrated Mounting Plate
- Quick Start Guide with Warranty Information
- 2-Meter Locking Power and GPIO Cable (Direct Wire).
- 2 x Extra SIM Door Screws
Environmentally Friendly:
Yes
Environmental Certification:
- RoHS 2
- WEEE
- RoHS
Country of Origin:
Taiwan
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN:
0804879606086
UPC:
804879606086
EAN:
0804879606086
UNSPSC:
43222609
