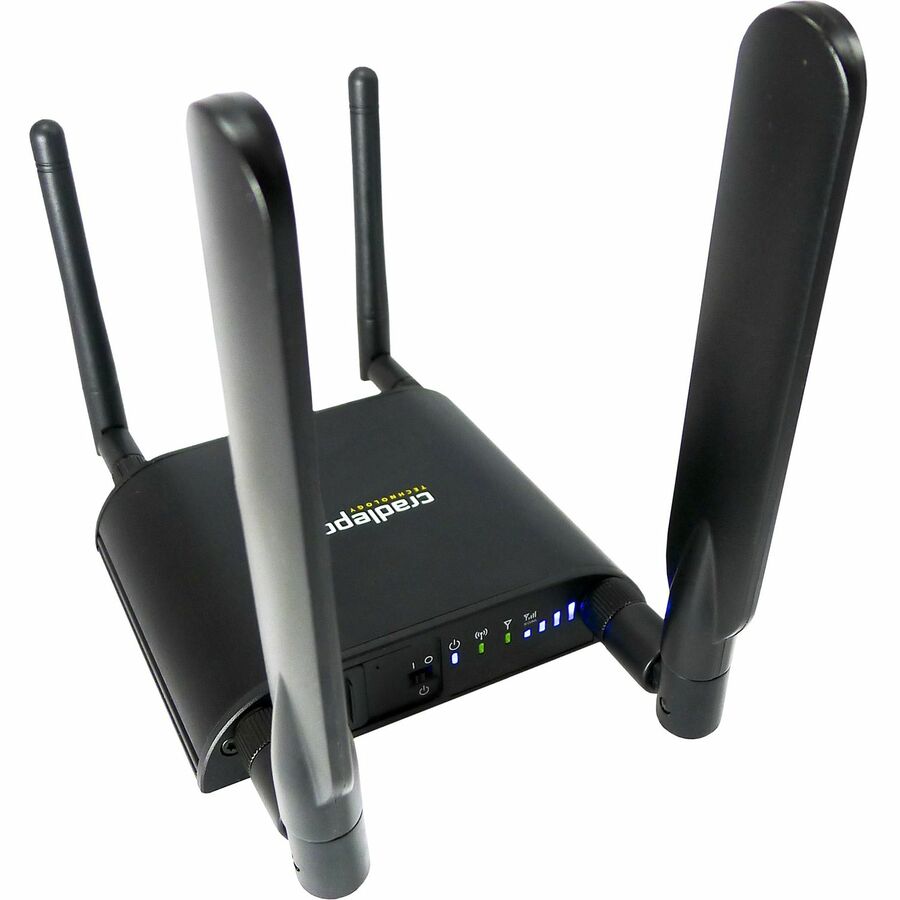

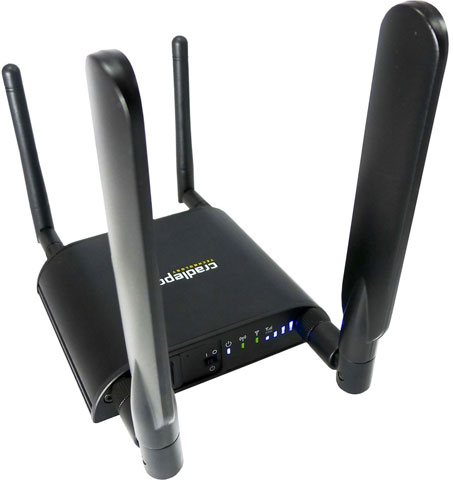

CradlePoint IBR650P-AT-ES1 Wireless Router

Part Number: IBR650P-AT-ES1
Model:
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Broadband Transmission Technology
CellularEthernet
ISM Band
No
UNII Band
No
Cellular Generation
3.7G

Product Description:

  CradlePoint COR IBR650P Wireless Router - 3.7G - 2 x Antenna - 1 x Network Port - 1 x Broadband Port - USB - Fast Ethernet - VPN Supported - Desktop
Explore all CradlePoint Parts Accessories
Add to Quote
CradlePoint IBR650P-AT-ES1 Wireless Router
CradlePoint IBR650P-AT-ES1 Wireless Router
CradlePoint IBR650P-AT-ES1 Wireless Router
CradlePoint IBR650P-AT-ES1 Wireless Router
CradlePoint IBR650P-AT-ES1 Wireless Router CradlePoint IBR650P-AT-ES1 Wireless Router CradlePoint IBR650P-AT-ES1 Wireless Router CradlePoint IBR650P-AT-ES1 Wireless Router

CradlePoint Parts Accessory Model Overview

Products and parts from CradlePoint.
CradlePoint IBR650P-AT-ES1 Wireless Router Overview

THE HEART OF YOUR M2M NETWORK

The CradlePoint COR Series is built for your M2M network. It's an affordable, highly-featured compact router designed for critical business and enterprise applications that require 24x7 connectivity.

With its compact size, sleek metal case, mounting bracket, and external mobile broadband antennas, COR is ideal for use in high-availability applications like ATMs, kiosks, surveillance, vehicles, etc.

Get instant network connectivity with a CradlePoint COR, just activate the built-in modem and go. Ideal for deployment as a primary connection solution where wired Internet is not available. It also supports traditional wired data networks like DSL or Cable for maximum network flexibility.

Wireless Specifications
Broadband Transmission Technology:
  • Cellular
  • Ethernet
ISM Band:
No
UNII Band:
No
Cellular Generation:
3.7G
Cellular Network Supported:
  • WCDMA 850
  • WCDMA 1900
  • WCDMA 2100
  • GSM 850
  • GSM 900
  • GSM 1800
  • GSM 1900
Cellular Data Connectivity Technology:
  • HSPA+
  • UMTS
  • GPRS
  • EDGE
Total Number of Antennas:
2
Antenna Gain:
2 dBi
Antenna Connector:
SMA Connector
Features:
  • Quality of Service (QoS)
  • MIMO Technology
  • GPS Capable
Interfaces/Ports
Number of Network (RJ-45) Ports:
1
Network (RJ-11):
No
VGA:
No
Serial:
No
USB:
Yes
Powerline:
No
PoE (RJ-45) Port:
No
Management Port:
No
Number of Broadband (RJ-45) Ports:
1
I/O Expansions
Expansion Slots:
1 x SIM Card
Network & Communication
Ethernet Technology:
Fast Ethernet
Network Technology:
10/100Base-TX
VPN Supported:
Yes
Management & Protocols
Management:
  • Web-Based Management
  • SNMP v1/2c/3
  • Command Line Interface (CLI)
  • WiPipe Central Management
  • VLAN
  • DHCP
  • Telnet
  • Modem Health Management (MHM)
Security Features:
  • IPSec
  • PPTP
  • URL Filtering
  • Traffic Filtering
  • Port Forwarding
  • GRE Tunneling
  • SSH
  • NAT
  • L2TP
  • Port Blocking
  • Service Filtering
  • RADIUS
  • MAC Address Filtering
  • Content Filtering
  • Website Filtering
  • PPPoE
  • SPI Firewall
  • DMZ
  • MD5
  • 128/256/384/512-bit SHA
  • AES
  • 3DES
  • DES
  • Intrusion Detection
  • TACACS+
Power Description
Input Voltage:
12 V DC
Power Source:
AC Adapter
Physical Characteristics
Form Factor:
Desktop
Height:
0.9"
Width:
4"
Depth:
3.3"
Weight (Approximate):
7.05 oz
Miscellaneous
System Requirements:

Web Browsers:

  • Firefox v2.0
  • Internet Explorer v7.0
  • Google Chrome
  • Safari v1.0
Certifications & Standards:
  • PTCRB
  • GCF-CC
  • FCC
  • IC
  • CE
Item Numbers
UNSPSC: 43222609
