CradlePoint IBR650LE-VZ Telecommunication Equipment

Part Number: IBR650LE-VZ
Model: Parts
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Broadband Transmission Technology
CellularEthernet
ISM Band
No
UNII Band
No
Cellular Generation
4G

Product Description:

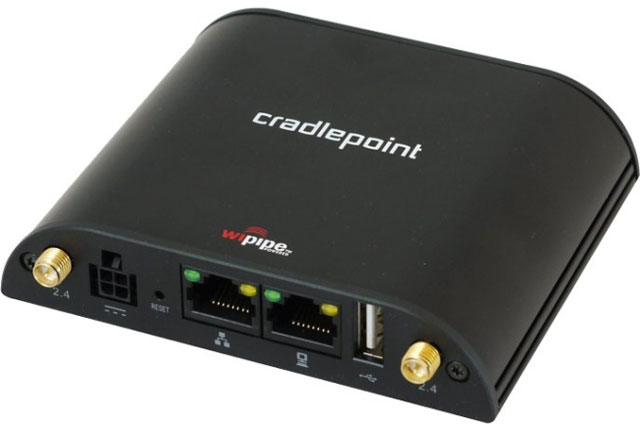

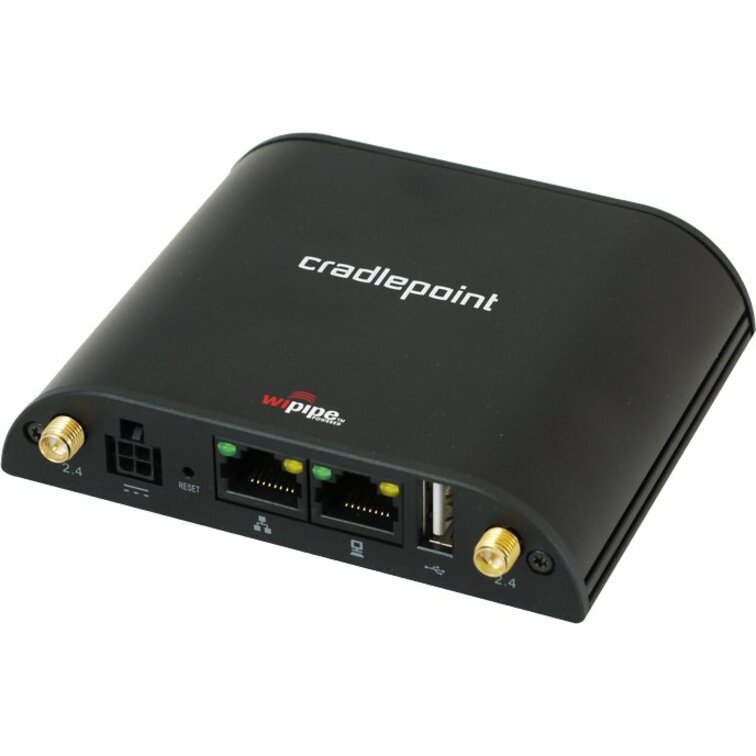

  CradlePoint COR IBR650LE-VZ Wireless Router - 4G - 2 x Antenna - 2 x Broadband Port - USB - Fast Ethernet - Desktop
Explore all CradlePoint Parts Accessories
Add to Quote
CradlePoint IBR650LE-VZ Telecommunication Equipment
CradlePoint IBR650LE-VZ Telecommunication Equipment
CradlePoint IBR650LE-VZ Telecommunication Equipment
CradlePoint IBR650LE-VZ Telecommunication Equipment
CradlePoint IBR650LE-VZ Telecommunication Equipment
CradlePoint IBR650LE-VZ Telecommunication Equipment CradlePoint IBR650LE-VZ Telecommunication Equipment CradlePoint IBR650LE-VZ Telecommunication Equipment CradlePoint IBR650LE-VZ Telecommunication Equipment CradlePoint IBR650LE-VZ Telecommunication Equipment

CradlePoint Parts Accessory Model Overview

Products and parts from CradlePoint.
CradlePoint IBR650LE-VZ Telecommunication Equipment Overview

THE HEART OF YOUR M2M NETWORK

The CradlePoint COR Series is built for your M2M network. It's an affordable, highly-featured compact router designed for critical business and enterprise applications that require 24x7 connectivity.

With its compact size, sleek metal case, mounting bracket, and external mobile broadband antennas, COR is ideal for use in high-availability applications like ATMs, kiosks, surveillance, vehicles, etc.

Get instant network connectivity with a CradlePoint COR, just activate the built-in modem and go. Ideal for deployment as a primary connection solution where wired Internet is not available. It also supports traditional wired data networks like DSL or Cable for maximum network flexibility.

Wireless Specifications
Broadband Transmission Technology:
  • Cellular
  • Ethernet
ISM Band:
No
UNII Band:
No
Cellular Generation:
4G
Cellular Network Supported:
  • LTE 700
  • CDMA 800
  • CDMA 1900
Cellular Data Connectivity Technology:
  • LTE
  • EVDO
Total Number of Antennas:
2
Antenna Gain:
2 dBi
Antenna Connector:
SMA Connector
Wireless Security:
  • WEP
  • WPA
  • WPA2
  • WPA2 Enterprise
  • AES
  • RADIUS
Features:
  • MIMO Technology
  • Quality of Service (QoS)
  • GPS Capable
Interfaces/Ports
Network (RJ-11):
No
VGA:
No
Serial:
No
USB:
Yes
Powerline:
No
PoE (RJ-45) Port:
No
Management Port:
Yes
Number of Broadband (RJ-45) Ports:
2
Network & Communication
Ethernet Technology:
Fast Ethernet
Network Technology:
10/100Base-TX
Management & Protocols
Management:
  • Web Based Management
  • Remote Management
  • SNMP v1/2c/3
  • CLI
  • DHCP
  • Telnet
Security Features:
  • NAT
  • L2TP
  • PPTP
  • SPI
  • URL Filtering
  • IP Address Filtering
  • DMZ
  • Protocol Filtering
  • MAC Address Filtering
  • PPPoE
  • IPsec
  • Port Blocking
Power Description
Input Voltage:
12 V DC
Power Source:
AC Adapter
Physical Characteristics
Form Factor:
Desktop
Height:
0.9"
Width:
4"
Depth:
3.3"
Weight (Approximate):
7.20 oz
Miscellaneous
Package Contents:
  • COR IBR650LE-VZ Wireless Router
  • Metal Mounting Bracket
  • 2 x 3G/4G Antenna
  • Power Adapter
  • Setup Guide with Warranty Information
System Requirements:
Web Browsers:
  • Internet Explorer v7.0
  • Chrome
  • Safari v1.0
  • Firefox v2.0
Certifications & Standards:
  • PTCRB
  • FCC
  • IC
  • CE
IEEE Standards:
  • 802.1Q/X
  • 802.3
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN: 0702458684220, 0804879378044
UPC: 702458684220, 804879378044
EAN: 0702458684220, 0804879378044
UNSPSC: 43222609
Questions? Get help from a
Printer Expert!

How many labels will you print per day?

The CradlePoint IBR650LE-VZ Telecommunication Equipment is also known as MOB-IBR650LEVZ or IBR650LEVZ.
