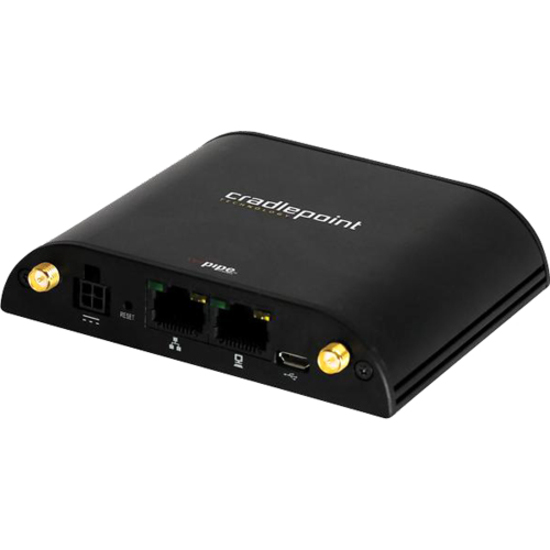

CradlePoint IBR600P Wireless Router

The CradlePoint IBR600P Wireless Router has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
CradlePoint - CradlePoint COR IBR600P Wireless Router - 3.9G - 2 x Antenna - 1 x Network Port - 1 x Broadband Port - USB - Fast Ethernet - Wall Mountable
  • Create a wireless network and share your Internet connection and files with other devices while checking emails
  • Access USB-compatible peripherals accross the wireless network via built-in USB port
  • Link your router traffic to your wired network with the Fast Ethernet port
Read More

Need a different version? See all CradlePoint Parts Accessories

Discontinued Need Assistance?
Chat Now for Qty Discount
Add to Quote
Add to My Shopping List Add to Compare
CradlePoint IBR600P Wireless Router
CradlePoint IBR600P Wireless Router
CradlePoint IBR600P Wireless Router
CradlePoint IBR600P Wireless Router CradlePoint IBR600P Wireless Router CradlePoint IBR600P Wireless Router
CradlePoint Parts Accessory Model Overview
Products and parts from CradlePoint.
CradlePoint IBR600P Wireless Router Overview

The CradlePoint COR Series is built for your M2M network. COR is an affordable, highly featured compact router with an embedded modem designed for critical business and enterprise applications that require 24/7 connectivity.

With its compact size, sleek metal case, mounting bracket, and external mobile broadband and WiFi* (IBR600 only) antennas, CradlePoint COR is ideal for use in high-availability portable or fixed applications like ATMs, kiosks, surveillance, vehicles, etc.

CradlePoint COR provides instant network connectivity with a built-in modem - just add a mobile broadband plan or insert an activated SIM and go. It also supports traditional wired data networks like DSL, cable, or T1 for maximum network flexibility.

Wireless Specifications
Broadband Transmission Technology:
  • Ethernet
  • Cellular
ISM Band:
No
UNII Band:
No
Cellular Generation:
3.9G
Cellular Network Supported:
  • GSM 850
  • GSM 900
  • GSM 1800
  • GSM 1900
  • WCDMA 850
  • WCDMA 900
  • WCDMA 1900
  • WCDMA 2100
Cellular Data Connectivity Technology:
  • EDGE
  • GPRS
  • UMTS
  • HSPA+
Total Number of Antennas:
2
Antenna Gain:
2 dBi
Antenna Connector:
SMA Connector
Features:
  • MIMO Technology
  • Quality of Service (QoS)
Interfaces/Ports
Number of Network (RJ-45) Ports:
1
VGA:
No
Serial:
No
USB:
Yes
Powerline:
No
PoE (RJ-45) Port:
No
Management Port:
No
Number of Broadband (RJ-45) Ports:
1
Network & Communication
Ethernet Technology:
Fast Ethernet
Network Technology:
10/100Base-TX
VoIP Supported:
No
Management & Protocols
Management:
  • Web-Based Management
  • SNMP v1/v2c/v3
  • WiPipe Central Management
  • VLAN
  • DHCP
  • CLI
  • Telnet
Security Features:
  • VPN
  • IPSec
  • PPTP
  • URL Filtering
  • Traffic Filtering
  • Port Forwarding
  • GRE Tunneling
  • SSH
  • NAT
  • L2TP
  • Port Blocking
  • Service Filtering
  • RADIUS
  • TACACS+
  • MAC Address Filtering
  • Content Filtering
  • Website Filtering
  • PPPoE
  • SPI Firewall
  • DMZ
  • AES
  • 3DES
  • DES
Power Description
Input Voltage:
12 V DC
Power Source:
AC Adapter
Physical Characteristics
Form Factor:
Wall Mountable
Height:
0.9"
Width:
4"
Depth:
3.3"
Weight (Approximate):
7.05 oz
Miscellaneous
Package Contents:
  • COR IBR600P Wireless Router
  • Mounting Bracket
  • 2 x External Antennas
  • 12V Power Supply
  • Power Cable
  • Setup Guide with Warranty Information
System Requirements:

Web Browsers:

  • Firefox v2.0
  • Internet Explorer v7.0
  • Google Chrome
  • Safari v1.0
Certifications & Standards:
  • PTCRB
  • GCF-CC
  • FCC
  • IC
  • CE
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN: 0804879418887
UPC: 804879418887
EAN: 0804879418887
UNSPSC: 43222609
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The CradlePoint IBR600P Wireless Router is also known as IBR600P
