CradlePoint IBR600NM Products

The CradlePoint IBR600NM Products has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

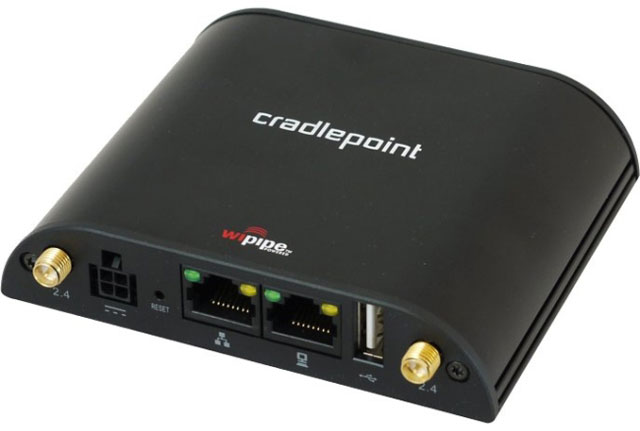

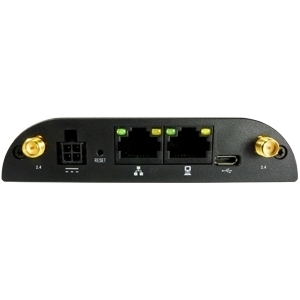

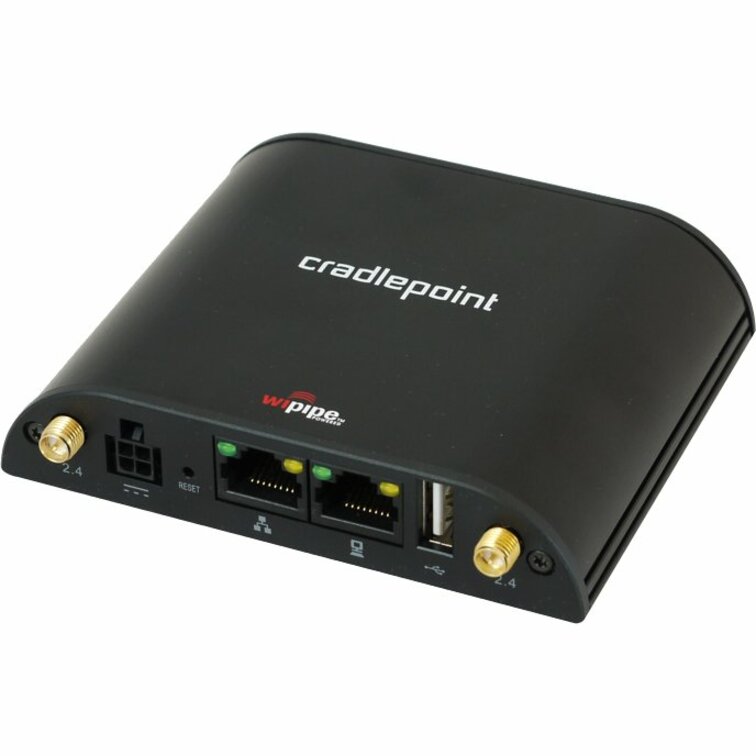

CradlePoint - CradlePoint COR IBR600NM IEEE 802.11n Wireless Router - 2.40 GHz ISM Band - 4 x Antenna - 2 x Broadband Port - USB - Fast Ethernet - Desktop
  • Uses ISM Band to connect your computers, wireless printers, game consoles, and other Wi-Fi devices for a smooth network experience
  • For USB-enabled devices accessibility, the router comes with a built-in USB port
  • Link your router traffic to your wired network with the Fast Ethernet port
  • Can be placed on the desktop surface for standalone installation
Read More

Need a different version? See all CradlePoint Parts Accessories

Discontinued Need Assistance?
Chat Now for Qty Discount
Add to Quote
Add to My Shopping List Add to Compare
CradlePoint IBR600NM Products
CradlePoint IBR600NM Products
CradlePoint IBR600NM Products
CradlePoint IBR600NM Products
CradlePoint IBR600NM Products
CradlePoint IBR600NM Products CradlePoint IBR600NM Products CradlePoint IBR600NM Products CradlePoint IBR600NM Products CradlePoint IBR600NM Products
CradlePoint Parts Accessory Model Overview
Products and parts from CradlePoint.
CradlePoint IBR600NM Products Overview
THE HEART OF YOUR M2M NETWORK

The CradlePoint COR Series is built for your M2M network. It's an affordable, highly-featured compact router designed for critical business and enterprise applications that require 24x7 connectivity.

With its compact size, sleek metal case, mounting bracket, and external mobile broadband and WiFi antennas, COR is ideal for use in high-availability applications like ATMs, kiosks, surveillance, vehicles, etc.

Get instant network connectivity with a CradlePoint COR; just activate the built-in modem and go. Ideal for deployment as a primary connection solution where wired Internet is not available. It also supports traditional wired data networks like DSL or Cable for maximum network flexibility.

Wireless Specifications
Broadband Transmission Technology:
Ethernet
Wireless LAN Standard:
IEEE 802.11n
ISM Band:
Yes
UNII Band:
No
ISM Maximum Frequency:
2.40 GHz
Total Number of Antennas:
4
Antenna Gain:
2 dBi
Antenna Connector:
SMA Connector
Wireless Security:
  • WEP
  • WPA
  • WPA2
  • WPA2 Enterprise
  • AES
  • RADIUS
Features:
  • Quality of Service (QoS)
  • MIMO Technology
  • GPS Capable
Interfaces/Ports
Network (RJ-11):
No
VGA:
No
Serial:
No
USB:
Yes
Powerline:
No
PoE (RJ-45) Port:
No
Management Port:
Yes
Number of Broadband (RJ-45) Ports:
2
Network & Communication
Ethernet Technology:
Fast Ethernet
Network Technology:
10/100Base-TX
Management & Protocols
Management:
  • Remote Management
  • SNMP v1/2c/3
  • CLI
  • DHCP
  • Web Based Management
  • Telnet
Security Features:
  • PPPoE
  • IPsec
  • NAT
  • L2TP
  • PPTP
  • SPI
  • URL Filtering
  • IP Address Filtering
  • DMZ
  • Port Blocking
  • Protocol Filtering
  • MAC Address Filtering
Power Description
Input Voltage:
12 V DC
Power Source:
AC Adapter
Physical Characteristics
Form Factor:
Desktop
Height:
0.9"
Width:
4"
Depth:
3.3"
Weight (Approximate):
7.20 oz
Miscellaneous
Package Contents:
  • COR IBR600 Integrated Broadband Router
  • Metal Mounting Bracket
  • 2 x WiFi Antenna
  • 2 x 3G/4G Antenna
  • Power Adapter
  • Setup Guide with Warranty Information
System Requirements:
Web Browsers:
  • Safari v1.0
  • Firefox v2.0
  • Internet Explorer v7.0
  • Chrome
Certifications & Standards:
  • PTCRB
  • FCC
  • IC
  • CE
IEEE Standards:
  • 802.11b/g/n
  • 802.3
  • 802.1Q/X
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN: 0804879456254
UPC: 804879456254
EAN: 0804879456254
UNSPSC: 43222609
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The CradlePoint IBR600NM Products is also known as MOB-IBR600NM or IBR600NM.
