CradlePoint IBR600LE2-SP Products

Part Number: IBR600LE2-SP
Model: Parts
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Broadband Transmission Technology
CellularEthernet
Wireless LAN Standard
IEEE 802.11n
ISM Band
Yes
UNII Band
No

Product Description:

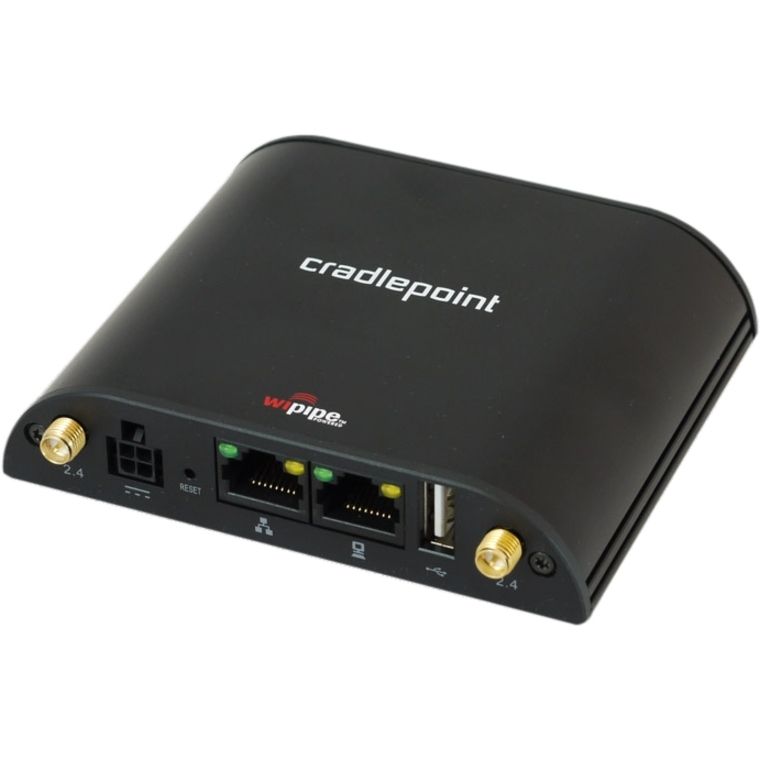

  CradlePoint COR IBR600LE2-SP IEEE 802.11n Cellular, Ethernet Wireless Router - 4G - LTE 1900, CDMA2000 1xEV, CDMA 800, CDMA 1900 - LTE, EVDO - 2.40 GHz ISM Band - 4 x Antenna(4 x External) - 6.75 MB/s Wireless Speed - 2 x Broadband Port - USB - Fast Ethernet - Desktop
Explore all CradlePoint Parts Accessories
Add to Quote
CradlePoint IBR600LE2-SP Products
CradlePoint IBR600LE2-SP Products
CradlePoint IBR600LE2-SP Products
CradlePoint IBR600LE2-SP Products CradlePoint IBR600LE2-SP Products CradlePoint IBR600LE2-SP Products

CradlePoint Parts Accessory Model Overview

Products and parts from CradlePoint.
CradlePoint IBR600LE2-SP Products Overview

THE HEART OF YOUR M2M NETWORK

The CradlePoint COR Series is built for your M2M network. It's an affordable, highly-featured compact router designed for critical business and enterprise applications that require 24x7 connectivity.

With its compact size, sleek metal case, mounting bracket, and external mobile broadband and WiFi antennas, COR is ideal for use in high-availability applications like ATMs, kiosks, surveillance, vehicles, etc.

Get instant network connectivity with a CradlePoint COR; just activate the built-in modem and go. Ideal for deployment as a primary connection solution where wired Internet is not available. It also supports traditional wired data networks like DSL or Cable for maximum network flexibility.

Wireless Specifications
Broadband Transmission Technology:
  • Cellular
  • Ethernet
Wireless LAN Standard:
IEEE 802.11n
ISM Band:
Yes
UNII Band:
No
ISM Maximum Frequency:
2.40 GHz
Cellular Generation:
4G
Cellular Network Supported:
  • LTE 1900
  • CDMA2000 1xEV
  • CDMA 800
  • CDMA 1900
Cellular Data Connectivity Technology:
  • LTE
  • EVDO
Total Number of Antennas:
4
Number of External Antennas:
4
Antenna Gain:
5 dBi
Antenna Connector:
SMA Connector
Total Wireless Transmission Speed:
6.75 MB/s
Wireless Security:
  • WEP
  • WPA
  • WPA2
  • WPA2 Enterprise
  • AES
Features:
  • Quality of Service (QoS)
  • MIMO Technology
  • GPS Capable
Interfaces/Ports
Network (RJ-11):
No
VGA:
No
Serial:
No
USB:
Yes
Powerline:
No
PoE (RJ-45) Port:
No
Management Port:
No
Number of Broadband (RJ-45) Ports:
2
I/O Expansions
Expansion Slots:
SIM Card
Network & Communication
Ethernet Technology:
Fast Ethernet
Network Technology:
10/100Base-TX
Management & Protocols
Management:
  • VLAN
  • SNMP v1/2c/3
  • Command Line Interface (CLI)
Security Features:
  • SPI
  • NAT
  • NAT-T
  • URL Fltering
  • IP & Traffic Filtering
  • DMZ
  • IPSec
  • MD5
  • SHA-1
  • AES
  • 3DES
  • DES
Power Description
Input Voltage:
12 V DC
Power Source:
AC Adapter
Physical Characteristics
Form Factor:
Desktop
Height:
0.9"
Width:
4"
Depth:
3.3"
Weight (Approximate):
7.05 oz
Miscellaneous
Package Contents:
  • COR IBR600LE2-SP Wireless Router
  • Mounting Bracket
  • 2 x Modem Antennas
  • 2 x Wi-Fi Antennas
  • AC Adapter
  • Quick Start Guide with Warranty Information
System Requirements:
Web Browsers:
  • Firefox v2.0
  • Internet Explorer v7.0
  • Safari v1.0
  • Chrome
Certifications & Standards:
  • CE
  • FCC
  • IC
IEEE Standards:
  • 802.1Q
  • 802.1X
  • 802.11b
  • 802.11g
  • 802.11n
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN: 0804879504528
UPC: 804879504528
EAN: 0804879504528
UNSPSC: 43222609
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The CradlePoint IBR600LE2-SP Products is also known as MOB-IBR600LE2SP or IBR600LE2SP.
